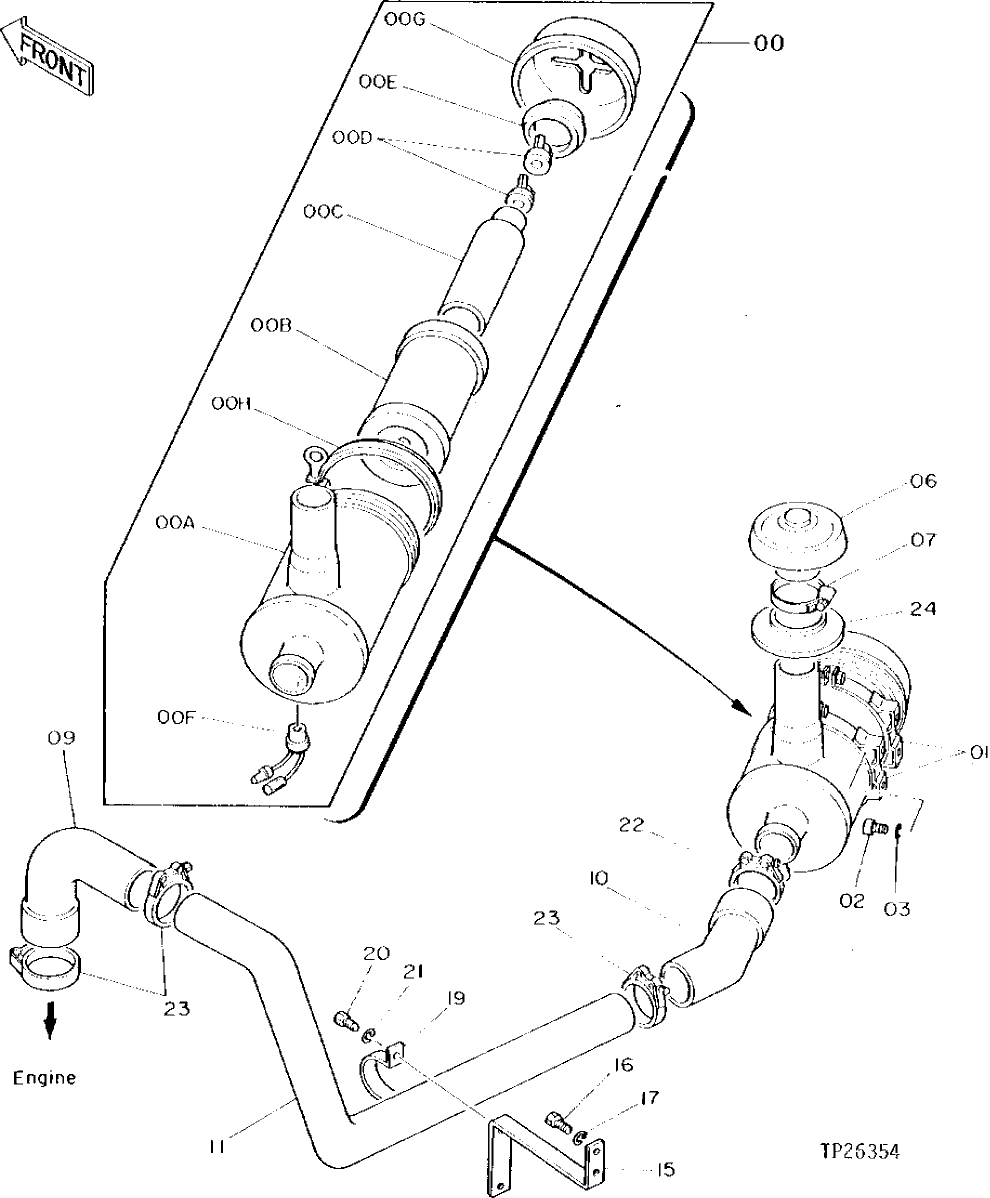

Запчасти John Deere 0D 2 - AIR CLEANER 521 - ENGINE AUXILIARY SYSTEM 5

0

AIR CLEANER

( AT130712 NO LONGER AVAILABLE)

1шт.

0A

4189197

HOUSING

(SUB FOR TH106444)

1шт.

0B

CH18287

FILTER ELEMENT

PRIMARY

1шт.

0C

CH18289

FILTER ELEMENT

1шт.

0D

AH20849

WING NUT

2шт.

0E

AH20858

ISOLATOR

1шт.

0F

4224238

INDICATOR

(SUB FOR TH108915) (SUB FOR AT131922)

1шт.

0G

AH20852

HOUSING

1шт.

0H

AH20855

CLAMP

(SUB FOR AR27854)

1шт.

1

AN31656

CLAMP

(SUB FOR TH106452)

2шт.

2

19M7932

CAP SCREW

M8 X 16

4шт.

3

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

4шт.

6

TH106455

CAP

1шт.

7

TY22473

CLAMP

(SUB FOR AR21841, THIS APPLICATION) (SUB FOR AR62936)

1шт.

9

3040691

HOSE

(SUB FOR TH110444)

1шт.

10

3040690

SUCTION HOSE

(SUB FOR TH110443)

1шт.

11

3040699

TUBE

(SUB FOR TH110445)

1шт.

15

4215347

SUPPORT

(SUB FOR TH110642)

1шт.

16

19M7872

CAP SCREW

M12 X 25

2шт.

17

12H301

LOCK WASHER

1/2"

2шт.

19

4037694

CLAMP

(SUB FOR TH106457)

1шт.

20

19M7932

CAP SCREW

M8 X 16

2шт.

21

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

22

AT43291

HOSE CLAMP

(SUB FOR TH106163)

1шт.

23

AT39141

HOSE CLAMP

(SUB FOR TH106162)

3шт.

24

4338147

COVER

(SUB FOR TH107988) (SUB FOR AT165857)

1шт.
