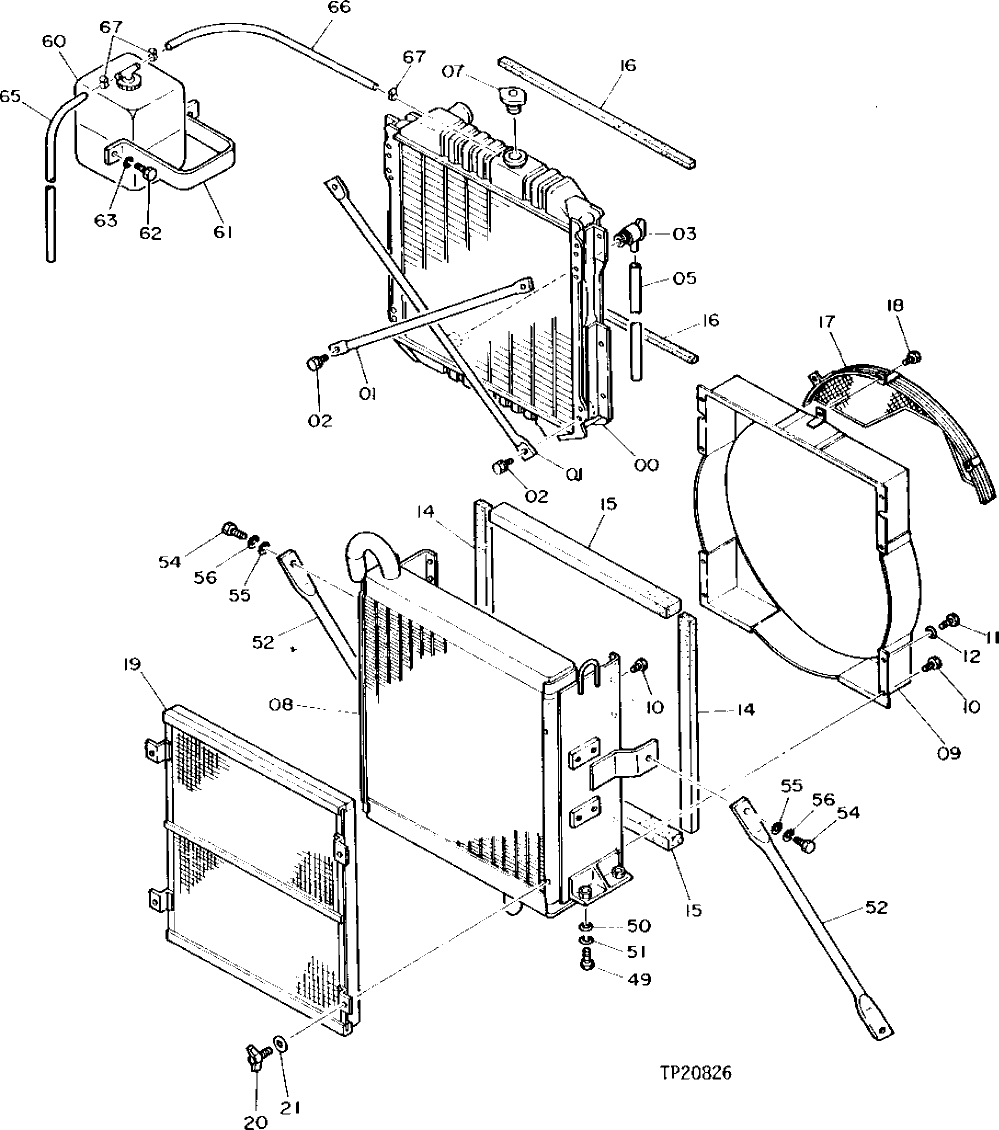

Запчасти John Deere 0D 2 - RADIATOR, HYDRAULIC OIL COOLER AND FAN SHROUD 510 - ENGINE AUXILIARY SYSTEM 5

0

4221301

RADIATOR

(SUB FOR TH110779)

1шт.

1

4193027

SUPPORT

(SUB FOR TH106430)

2шт.

2

4217606

BOLT

(SUB FOR TH110685)

4шт.

3

4217604

DRAIN PLUG

(SUB FOR TH110684)

1шт.

5

HOSE

( TH106433 NO LONGER AVAILABLE) (MAKE FROM 1/2 INCH VINYL TUBING CUT TO LENGTH)

1шт.

7

AT169085

FILLER CAP

(SUB FOR TH110548) (WITH BLADE)

1шт.

AT169085

FILLER CAP

(SUB FOR TH110548) (WITHOUT BLADE)

1шт.

AT169085

FILLER CAP

(SUB FOR TH111864) (WITH BLADE)

1шт.

AT169085

FILLER CAP

(SUB FOR TH111864) (WITHOUT BLADE)

1шт.

8

4221302

OIL COOLER

(SUB FOR TH110780)

1шт.

9

4193034

SHROUD

(SUB FOR TH106437)

1шт.

10

4219165

BOLT

(SUB FOR TH110770)

4шт.

11

19M7923

CAP SCREW

M6 X 12

6шт.

12

12M7006

LOCK WASHER

6 MM

6шт.

14

4193036

ISOLATOR

(SUB FOR TH106438)

2шт.

15

4185809

PACKING

(SUB FOR TH106107)

2шт.

16

4185808

PACKING

(SUB FOR TH106106)

2шт.

17

4337797

GUARD

(SUB FOR TH110778) (SUB FOR AT134367) (USE IF AVAILABLE)

1шт.

4337797

GUARD

(SUB FOR TH110778 OR AT134367) (SUB FOR AT165853)

1шт.

18

4206678

BOLT

(SUB FOR TH110683) (SUB FOR TH108227)

3шт.

19

4219166

SCREEN

(SUB FOR TH110771)

1шт.

20

21M1689

WING SCREW

M6 X 12, (SUB FOR TH110682)

4шт.

21

24M7054

WASHER

6.400 X 12 X 1.600 MM

4шт.

49

19M8011

CAP SCREW

M12 X 30

4шт.

50

24H1748

WASHER

1/2" X 1-1/4" X 0.105"

4шт.

51

12H301

LOCK WASHER

1/2"

4шт.

52

4178601

SUPPORT

(SUB FOR TH110488)

2шт.

54

19M8035

CAP SCREW

M16 X 35

4шт.

55

24M7053

WASHER

17 X 30 X 3 MM

4шт.

56

12H294

LOCK WASHER

5/8"

4шт.

60

4197948

TANK

(SUB FOR TH110562)

1шт.

61

4180555

BRACKET

(SUB FOR TH108579)

1шт.

62

19M7402

CAP SCREW

M10 X 25

2шт.

63

12M7066

LOCK WASHER

10 MM

2шт.

65

HOSE

(USE T79477 HOSE, CUT TO LENGTH)

1шт.

66

HOSE

( TH108580 NO LONGER AVAILABLE) (SUB T79477 BULK MATERIAL CUT TO LENGTH)

1шт.

67

R44302

TIE BAND

3шт.
