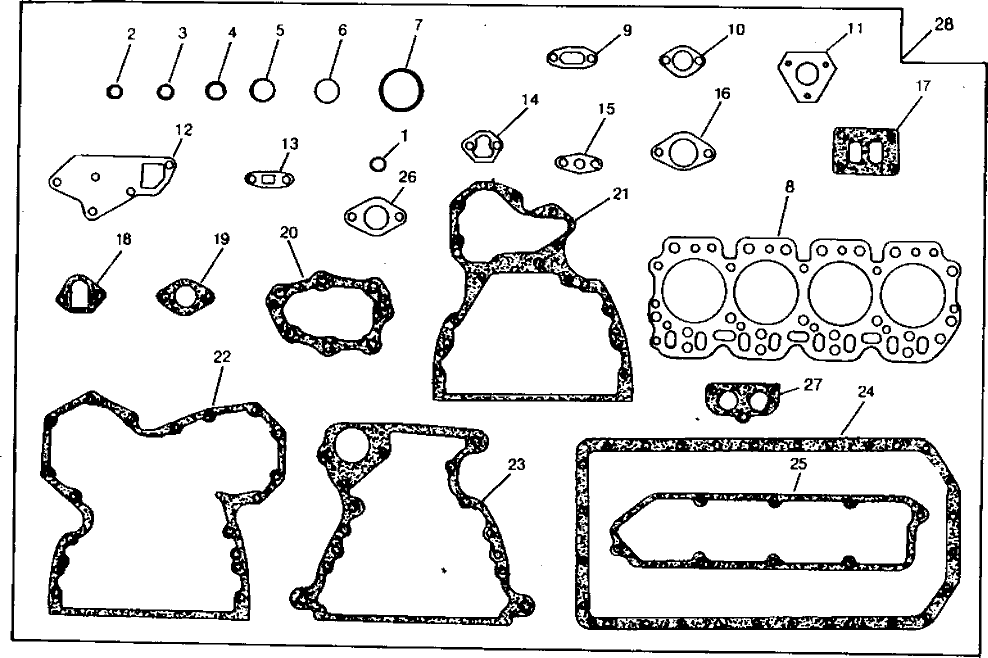

Запчасти John Deere 0D 2 - ENGINE OVERHAUL GASKET SET 452 - ENGINE 4

1

R87627

O-RING

7.645 X 1.778 MM (0.301" X 0.070") VALVE STEM SEAL

6шт.

2

T20304

WASHER

14.224 X 20.574 X 3.175 MM (0.560" X 0.810" X 1/8") TACHOMETER, DRIVE SHAFT

1шт.

3

T13213

WASHER

22.631 X 30.175 X 1.626 MM (57/64" X 1-3/16" X 0.064") OIL DRAIN PLUG

1шт.

4

T20328

GASKET

OIL FILLER CAP

1шт.

5

R56463

O-RING

21.819 X 3.531 MM (55/64" X 0.139") VENT TUBE

1шт.

6

R74354

O-RING

15.590 X 1.780 MM (0.614" X 0.070") OIL PUMP TUBE OUTLET

1шт.

7

R70956

WASHER

68.580 X 76.200 X 4.826 MM (2.700" X 3" X 0.190") OIL COOLER

1шт.

8

R125863

GASKET

CYLINDER HEAD, (SUB FOR R91878 OR R92425)

1шт.

9

R105346

GASKET

(SUB FOR R43416 OR R97349) TURBOCHARGER, OIL OUTLET

1шт.

10

T20219

GASKET

THERMOSTAT HOUSING

1шт.

11

R97354

GASKET

(WITH ROTO-DIESEL INJECTION PUMP) (SUB FOR R77126)

1шт.

12

COVER

WATER PUMP COVER ( R20243 NO LONGER AVAILABLE)

1шт.

13

R97352

GASKET

OIL FILLER INLET, (SUB FOR T20336)

1шт.

14

R520618

GASKET

FUEL PUMP, (SUB FOR R27285 OR R97350)

1шт.

15

R97348

GASKET

TURBOCHARGER, OIL INLET, (SUB FOR R43413)

1шт.

16

R81275

GASKET

AIR INLET

1шт.

17

R123572

GASKET

TURBOCHARGER, (SUB FOR R55509) (SUB FOR R89879, THIS APPLICATION)

1шт.

18

R125066

GASKET

INJECTION PUMP GEAR COVER, (SUB FOR R78366 OR R97773)

1шт.

19

R90658

GASKET

EXHAUST MANIFOLD

4шт.

20

T20273

GASKET

TIMING GEAR COVER OPENING COVER

1шт.

21

R131794

GASKET

CYLINDER BLOCK PLATE, (SUB FOR R90648)

1шт.

22

R126513

GASKET

TIMING GEAR COVER, (SUB FOR T20155, R97454, R119269, R121314)

1шт.

23

R97351

GASKET

FLYWHEEL HOUSING, (SUB FOR R70483)

1шт.

24

R97342

GASKET

(WITH CAST OIL PAN) (SUB FOR R49515)

1шт.

25

R73521

GASKET

ROCKER ARM COVER

1шт.

26

T20215

GASKET

THERMOSTAT COVER

1шт.

27

R501373

GASKET

(SUB FOR R54638) THERMOSTAT COVER

1шт.

28

RE501579

GASKET KIT

(SUB FOR RE38857) (ALSO ORDER (4) AR65507, AR67942, RE24858, (4) R34764 AND (4) R48000)

1шт.
