Запчасти John Deere 0D 1 - CYLINDER HEAD REMOVAL GASKET SET 452 - ENGINE 4

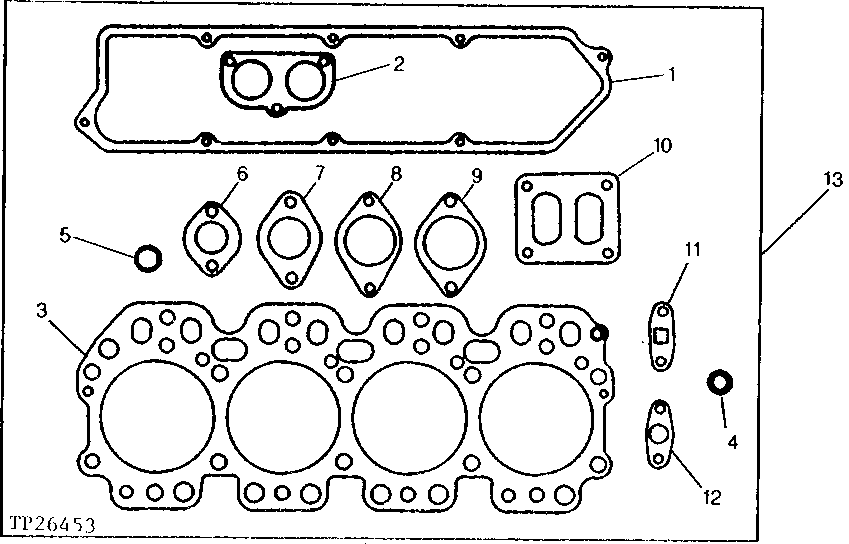

Схема запчастей John Deere 0D - 1 - CYLINDER HEAD REMOVAL GASKET SET 452 - ENGINE 4

Артикул

Название

Примечание

Количество

1

R73521

GASKET

ROCKER ARM COVER

1шт.

2

R501373

GASKET

(SUB FOR R54638) THERMOSTAT COVER

1шт.

3

R125863

GASKET

CYLINDER HEAD, (SUB FOR R91878 OR R92425)

1шт.

4

R87627

O-RING

7.645 X 1.778 MM (0.301" X 0.070") VALVE STEM

8шт.

5

R56463

O-RING

21.819 X 3.531 MM (55/64" X 0.139") ENGINE VENTILATOR TUBE

1шт.

6

T20219

GASKET

THERMOSTAT HOUSING

1шт.

7

R90658

GASKET

EXHAUST MANIFOLD

4шт.

8

T20215

GASKET

THERMOSTAT COVER

1шт.

9

R81275

GASKET

AIR INLET

1шт.

10

R123572

GASKET

TURBOCHARGER, (SUB FOR R55509) (SUB FOR R89879, THIS APPLICATION)

1шт.

11

R105346

GASKET

(SUB FOR R43416 OR R97349) TURBOCHARGER, OIL OUTLET

1шт.

12

R97348

GASKET

TURBOCHARGER, OIL INLET

1шт.

13

RE526668

GASKET KIT

(SUB FOR RE38851, RE16920) (ALSO ORDER (8) AR103811, (4) R34764 AND (4) R48000)

1шт.

Выбрано товаров: 13
