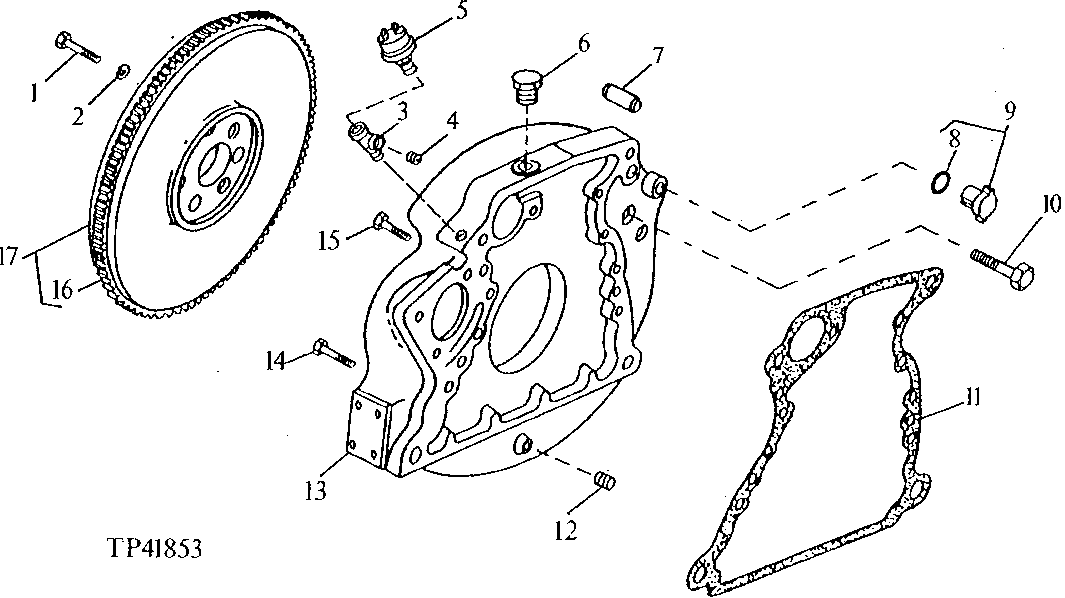

Запчасти John Deere 0D 1 - FLYWHEEL AND FLYWHEEL HOUSING 433 - ENGINE 4

1

19H2993

CAP SCREW

1/2" X 1-1/2"

4шт.

2

T23891

WASHER

13.487 X 20.625 X 1.524 MM (17/32" X 13/16" X 0.060")

4шт.

3

R70752

TEE FITTING

3.175 MM (1/8")

1шт.

4

R104592

PIPE PLUG

1/8", (SUB FOR 15H638)

1шт.

5

AT157548

SWITCH

(SUB FOR AT157548) (ENGINE HOUR METER)

1шт.

37H90

SCREW

0.164" X 5/16", (NOT SHOWN)

2шт.

6

T22867

DRAIN PLUG

(SUB FOR R39112)

1шт.

7

R48685

DOWEL PIN

2шт.

8

R27149

O-RING

23.393 X 3.531 MM (0.921" X 0.139")

1шт.

9

AR61533

PLUG

1шт.

10

19H2351

CAP SCREW

1/2" X 1/2"

1шт.

11

R97351

GASKET

1шт.

12

RE57836

PIPE PLUG

1/2", (SUB FOR 15H561)

1шт.

13

R120586

HOUSING

(SUB FOR R79635, R110188 OR R101113) (ALSO ORDER R39112)

1шт.

14

19H1847

CAP SCREW

5/8" X 2-1/2"

4шт.

15

19H3219

CAP SCREW

3/8" X 1-3/8"

8шт.

16

R28811

RING GEAR

(129 TEETH)

1шт.

17

RE500511

FLYWHEEL

(MARKED R122406) (SUB FOR RE24281, MARKED R84485) (SUB FOR RE46293, MARKED R109008) (SUB FOR RE58571, MARKED R122406)

1шт.
