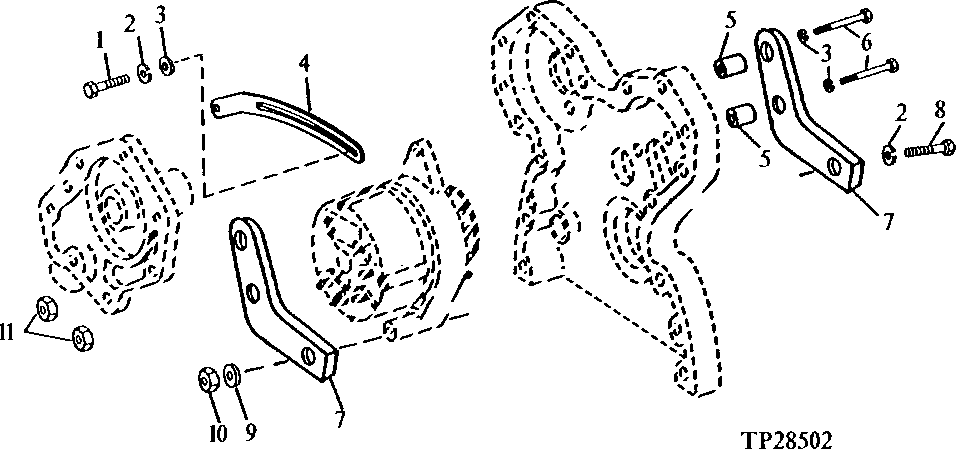

Запчасти John Deere 0D 1 - ALTERNATOR SUPPORTS 423 - ENGINE 4

1

19H1726

CAP SCREW

3/8" X 2-1/4"

ARшт.

19H3065

CAP SCREW

3/8" X 2"

ARшт.

2

12M7066

LOCK WASHER

10 MM

2шт.

3

24M7106

WASHER

10 X 18 X 2.500 MM

ARшт.

4

T32853

STRAP

1шт.

R108404

STRAP

(SUB FOR R71250, THIS APPLICATION)

1шт.

5

28H2547

SPACER

3/8" X 1"

2шт.

28H862

SPACER

2шт.

6

19H3743

SCREW

3/8" X 2-7/8"

2шт.

7

T20202

BRACKET

1шт.

R59962

BRACKET

1шт.

R57260

BRACKET

2шт.

8

19M7329

CAP SCREW

M10 X 75

1шт.

9

24H1822

WASHER

11/32" X 7/8" X 1/16"

1шт.

10

14M7274

NUT

M10

1шт.

11

N10215

LOCK NUT

3/8", (SUB FOR 14H812, THIS APPLICATION)

2шт.
