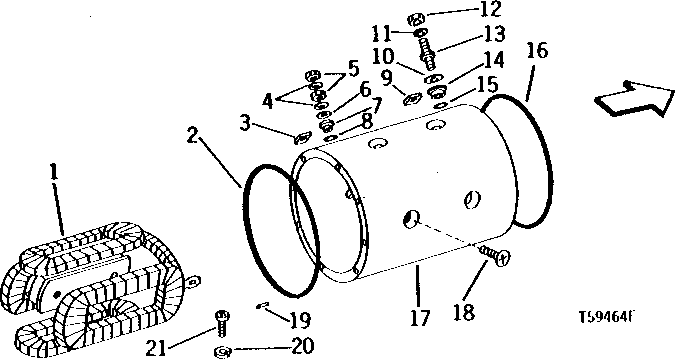

Запчасти John Deere 0D 3 - STARTING MOTOR AND MAIN FRAME COIL 422 - ENGINE 4

1

AR84339

FIELD WINDING COIL

1шт.

2

R50913

O-RING

105.588 X 3.505 MM (4.157" X 0.138")

1шт.

3

R50916

WASHER

1шт.

4

12H246

LOCK WASHER

0.190"

2шт.

5

R50907

NUT

M5

2шт.

6

24H1283

WASHER

7/32" X 1/2" X 0.049"

1шт.

7

R50914

WASHER

5.207 X 11.989 X 4.597 MM (0.205" X 0.472" X 0.181")

1шт.

8

R50915

O-RING

4.800 X 1.900 MM (0.189" X 0.075")

1шт.

9

R50920

BUSHING

1шт.

10

R50917

WASHER

1шт.

11

R50899

LOCK WASHER

1шт.

12

R50909

NUT

M10

1шт.

13

R56802

STUD

1шт.

14

R50918

WASHER

10.185 X 21.996 X 6.579 MM (0.401" X 0.866" X 0.259")

1шт.

15

R50919

O-RING

9.804 X 1.905 MM (0.386" X 0.075")

1шт.

16

R50922

O-RING

117.069 X 3.531 MM (4-39/64" X 0.139")

1шт.

17

HOUSING

(SUB RE70961)

1шт.

18

R50921

SCREW

M10 X 20

8шт.

19

R51664

DOWEL PIN

1шт.

20

12H246

LOCK WASHER

0.190"

1шт.

21

R50931

SCREW

M5 X 10

1шт.
