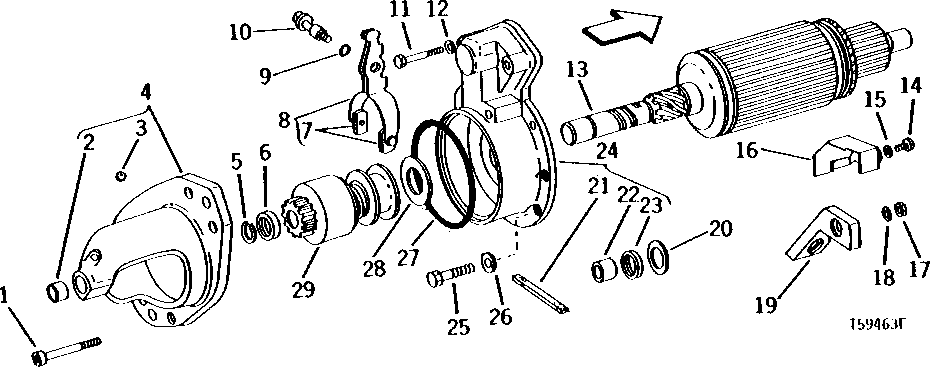

Запчасти John Deere 0D 2 - STARTING MOTOR DRIVE MOTOR AND ARMATURE 422 - ENGINE 4

1

R65700

SCREW

M7 X 74.500

6шт.

2

R50891

BUSHING

1шт.

3

R50892

PLUG

1шт.

4

RE16047

STARTER MOTOR

1шт.

5

R50902

SNAP RING

1шт.

6

R65701

LOCKING COLLAR

1шт.

7

R51667

WEAR PLATE

2шт.

8

AR67827

ARM

1шт.

9

R52387

O-RING

10.820 X 1.778 MM (0.426" X 0.070")

1шт.

10

R50897

SHAFT

1шт.

11

R50893

SCREW

M6 X 42

2шт.

12

12H302

LOCK WASHER

1/4"

2шт.

13

ARMATURE

( AR84338 NO LONGER AVAILABLE)

1шт.

14

AR55946

SCREW

1шт.

15

R76140

COVER

1шт.

16

R76139

COVER

1шт.

17

14H971

NUT

1/2"

1шт.

18

R50899

LOCK WASHER

1шт.

19

R50910

ELECTRICAL CONNECTOR ASSY

1шт.

20

R50906

THRUST WASHER

30 X 50 X 1.500 MM (1.181" X 1.969" X 0.059")

1шт.

21

R51666

WICK

FELT, OIL

1шт.

22

R51665

BUSHING

CENTER HOUSING

1шт.

23

AR55947

SEAL

1шт.

24

AR68731

HOUSING

CENTER BEARING

1шт.

25

R51661

SCREW

M6 X 18

2шт.

26

12H302

LOCK WASHER

1/4"

2шт.

27

R50901

WASHER

86.004 X 91.999 X 2.007 MM (3.386" X 3.622" X 0.079")

1шт.

28

R50905

WEAR RING

1шт.

29

AR84337

DRIVE

1шт.
