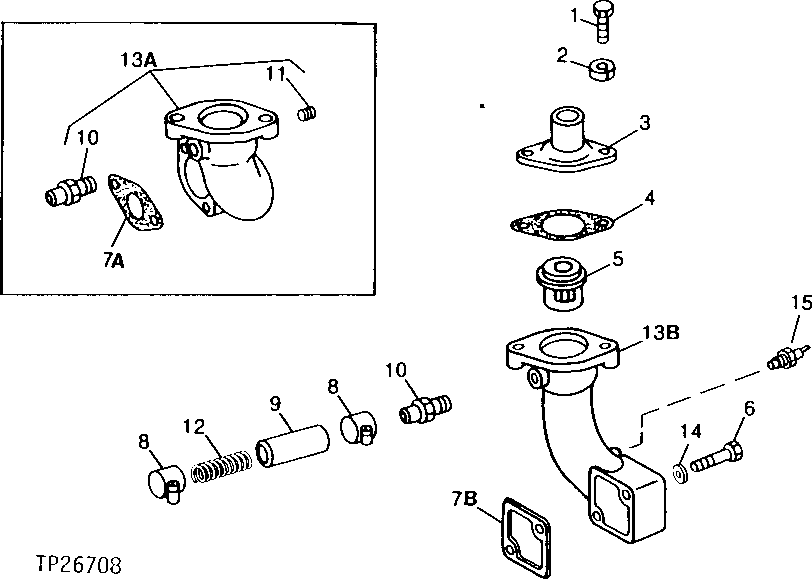

Запчасти John Deere 0D 1 - ENGINE THERMOSTAT AND HOUSING 418 - ENGINE 4

1

19H3411

SCREW

3/8" X 1-1/8", (SUB FOR 19H3239, THIS APPLICATION)

2шт.

2

24M7096

WASHER

0.413" X 0.709" X 0.063", (USE WITH 19H3239)

2шт.

3

T20317

COVER

1шт.

4

T20215

GASKET

1шт.

5

RE33705

THERMOSTAT

82C (180°F) (SUB FOR AT22961)

1шт.

6

19H3745

SCREW

3/8" X 2-5/8"

2шт.

7A

T20219

GASKET

1шт.

7B

R54641

GASKET

1шт.

8

RE32361

HOSE CLAMP

(SUB FOR AR21837, THIS APPLICATION)

2шт.

9

T12815

HOSE

(SUB TY22326) (CUT TO LENGTH)

1шт.

10

T19651

HOSE FITTING

1шт.

11

RE57836

PIPE PLUG

1/2", (SUB FOR 15H561)

1шт.

12

T561T

SPRING

1шт.

13A

AR73097

HOUSING

(MARKED R60256) (SUB FOR AT18074, MARKED T20218)

1шт.

13B

R92446

HOUSING

1шт.

14

12H304

LOCK WASHER

3/8"

2шт.

15

AT105546

SWITCH

ENGINE TEMPERATURE WARNING

1шт.
