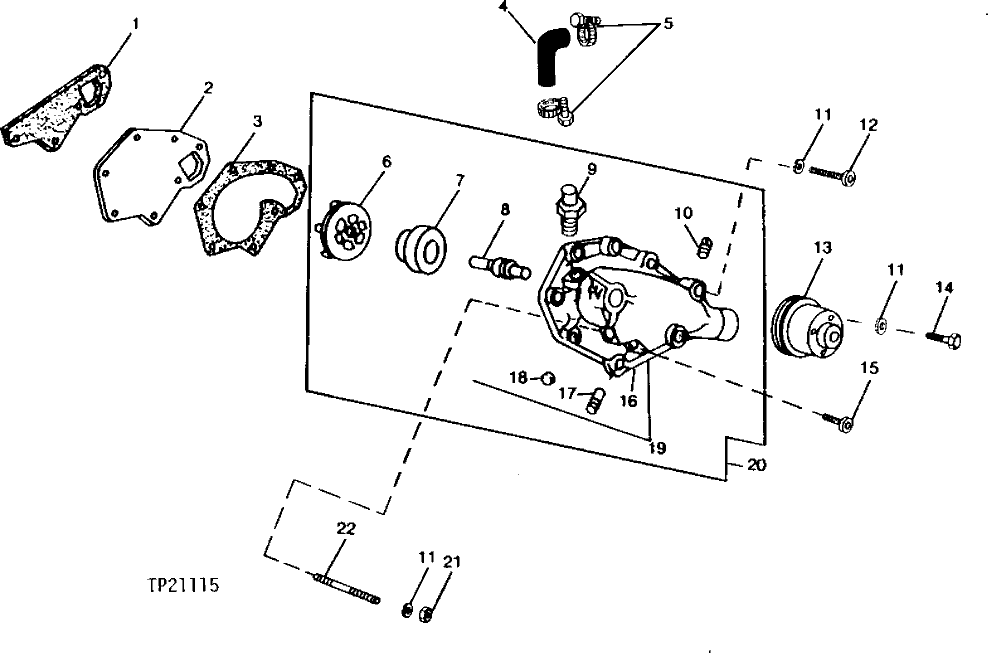

Запчасти John Deere 0D 2 - WATER PUMP 417 - ENGINE 4

1

T20243

GASKET

1шт.

2

T20270

COVER

1шт.

3

R97455

GASKET

(SUB FOR T20271)

1шт.

4

T20277

HOSE

1шт.

5

WZ2141223

HOSE CLAMP

(SUB FOR AR21837, THIS APPLICATION) (SUB FOR AA34965)

2шт.

6

T30897

IMPELLER

(SUB FOR T30897 OR R94419)

1шт.

7

AR101549

SEAL KIT

1шт.

8

JD9257

BALL BEARING

1шт.

9

T19651

HOSE FITTING

1шт.

10

15H584

PIPE PLUG

1/2"

1шт.

11

12H304

LOCK WASHER

3/8"

6шт.

12

19H1912

CAP SCREW

3/8" X 3-1/2"

1шт.

19H3065

CAP SCREW

3/8" X 2"

1шт.

19H3385

CAP SCREW

1/2" X 1-1/8"

2шт.

13

T23628

PULLEY

(SHEET METAL)

1шт.

14

19H2127

CAP SCREW

5/16" X 7/8"

4шт.

15

19H1912

CAP SCREW

3/8" X 3-1/2"

1шт.

16

HOUSING

(SUB RE19949)

1шт.

17

R48993

TUBE

2шт.

18

M1098T

CAP

ARшт.

19

RE19949

HOUSING

(MARKED R55758)

1шт.

20

KIT

( RE19944 NLA)

1шт.

21

N10215

LOCK NUT

3/8", (SUB FOR 14H812, THIS APPLICATION)

1шт.

22

T25701

STUD

1шт.
