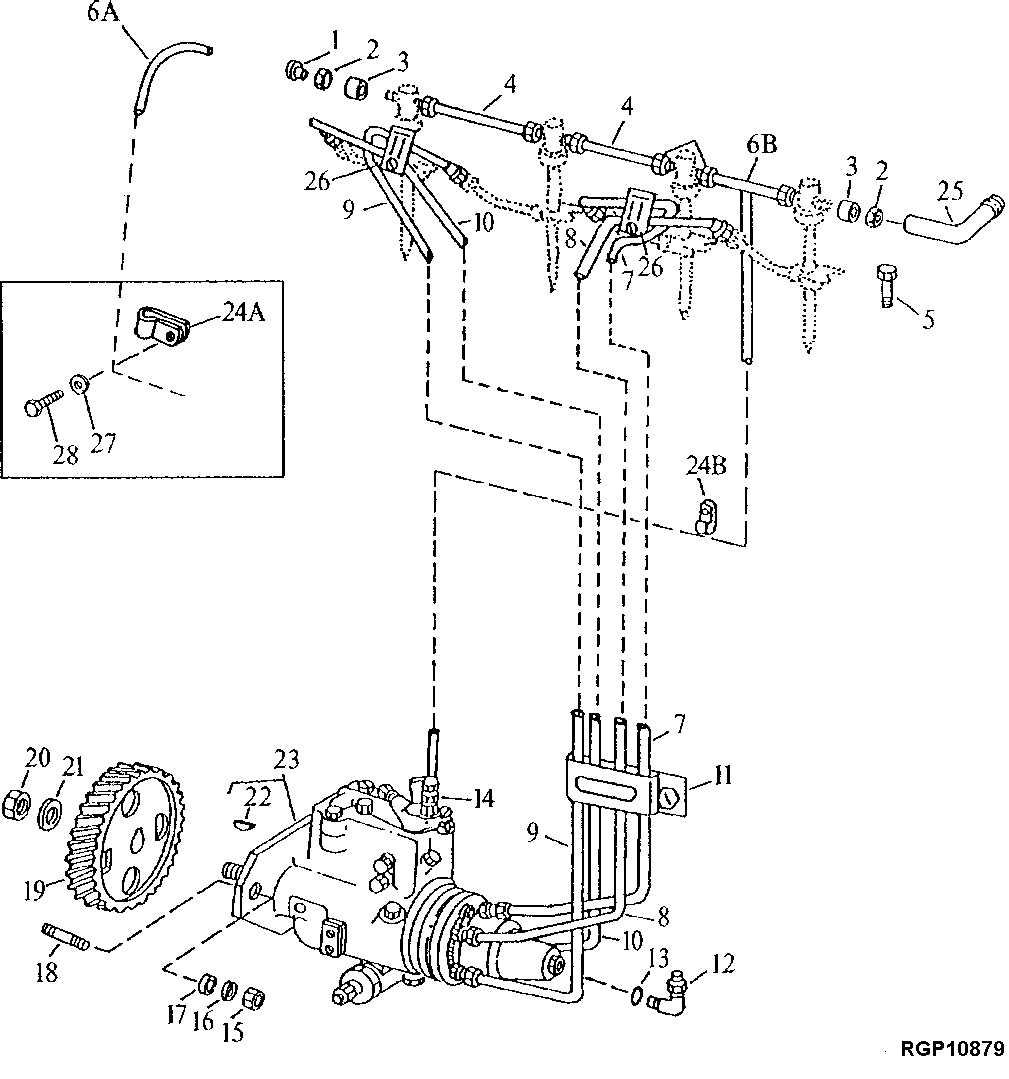

Запчасти John Deere 0D 4 - FUEL INJECTION SYSTEM 413 - ENGINE 4

1A

16H658

RIVET

1/4" X 5/8"

1шт.

1B

AR85519

PLUG

(SUB FOR 16H658, THIS APPLICATION)

2шт.

2

R51937

TUBE NUT

(A)

2шт.

3

R51936

SEALING WASHER

8шт.

4

R66090

TUBE

2шт.

5

R101201

CAP SCREW

7.925 X 19.050 MM (5/16" X 3/4")

1шт.

6A

AR89847

LINE

1шт.

6B

AR89852

FUEL LINE

1шт.

7

RE20215

FUEL LINE

NO. 3

1шт.

RE43286

FUEL LINE

NO. 3

1шт.

8

RE20216

FUEL LINE

NO. 4

1шт.

RE43287

FUEL LINE

NO. 4

1шт.

9

RE20214

FUEL LINE

NO. 2

1шт.

RE43285

FUEL LINE

NO. 2

1шт.

10

RE20213

FUEL LINE

NO. 1

1шт.

RE43284

FUEL LINE

NO. 1

1шт.

11

RE19799

CLAMP

1шт.

12

RE56322

TEE FITTING

(TO FUEL FILTER INLET LINE) (SUB FOR AT32333)

1шт.

13

R26286

O-RING

10.516 X 1.829 MM (0.414" X 0.072")

1шт.

14

R35352

FITTING

1шт.

15

14H785

NUT

5/16"

3шт.

16

12H303

LOCK WASHER

5/16"

3шт.

17

24H1136

WASHER

11/32" X 11/16" X 0.065"

3шт.

18

T23442

STUD

3шт.

19

R84663

GEAR

(48 TEETH)

1шт.

20

R48599

NUT

14.275 MM (9/16")

1шт.

21

R132874

WASHER

(SUB FOR R48600)

1шт.

22

26H10

SHAFT KEY

5/32" X 5/8"

1шт.

23

RE24271

FUEL INJECTION PUMP

(A) (STANADYNE NO. I-DB2435-4550)

1шт.

RE36650

FUEL INJECTION PUMP

(A) (ALSO ORDER R48599 AND R132874) (STANDADYNE NO. DB2435-4729)

1шт.

24A

T29969

CLAMP

(LINE TO EXHAUST MANIFOLD CAPSCREWS)

1шт.

24B

T14050

CLAMP

(SUB FOR T29527, THIS APPLICATION)

2шт.

25

RE16142

FUEL LINE

1шт.

26

RE19797

CLAMP

2шт.

27

24M7096

WASHER

0.413" X 0.709" X 0.063"

1шт.

28

19H2284

CAP SCREW

3/8" X 7/8"

1шт.
