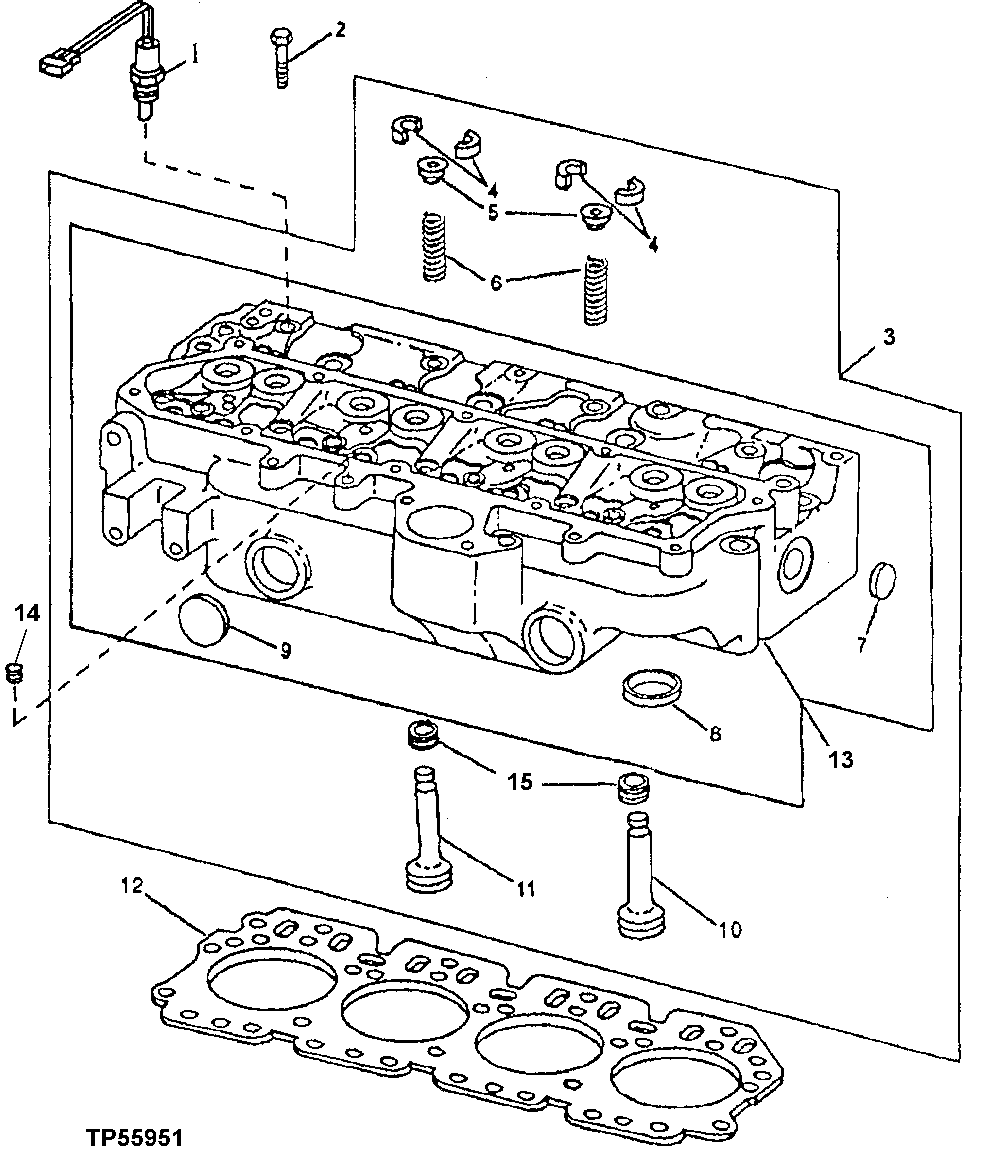

Запчасти John Deere 0D 4 - CYLINDER HEAD, HEAD GASKET AND VALVES 409 - ENGINE 4

1

AH139059

TEMPERATURE SWITCH

(ENGINE COOLANTTEMPERATURE) (SUB FOR AT120609, THIS APPLICATION) (SUB FOR AH139059)

1шт.

2

R85363

CAP SCREW

12.700 X 112 MM (1/2" X 4.409")

18шт.

3

RE48615

CYLINDER HEAD

CONVENIENCE ASSEMBLY,(MARKED R111949)

1шт.

4

R91889

RETAINER

16шт.

5

RE60005

ROTATOR

(SUB FOR RE31323)

8шт.

6

R26125

SPRING

8шт.

7

N102039

PLUG

(SUB FOR A3910R)

2шт.

8

R98063

VALVE SEAT INSERT

STANDARD SIZE INTAKE VALVE

4шт.

R98335

VALVE SEAT INSERT

OVERSIZE INTAKE VALVE

4шт.

R85687

VALVE SEAT INSERT

STANDARD SIZE EXHAUST VALVE

4шт.

R93910

VALVE SEAT INSERT

OVERSIZE EXHAUST VALVE

4шт.

9

R43409

PLUG

2шт.

10

R90692

EXHAUST VALVE

STANDARD

4шт.

R97492

EXHAUST VALVE

015" OVERSIZE

4шт.

R97493

EXHAUST VALVE

030" OVERSIZE

4шт.

11

R98062

INTAKE VALVE

STANDARD

4шт.

R97490

INTAKE VALVE

015" OVERSIZE

4шт.

R97491

INTAKE VALVE

030" OVERSIZE

4шт.

12

R125863

GASKET

(SUB FOR R92425)

1шт.

13

RE48616

CYLINDER HEAD

(MARKED R111949) (SUB RE48615)

1шт.

14

R104592

PIPE PLUG

3.175 MM (1/8")

1шт.

15

RE31617

SEAL

STANDARD

8шт.

SEAL

8шт.

SEAL

8шт.
