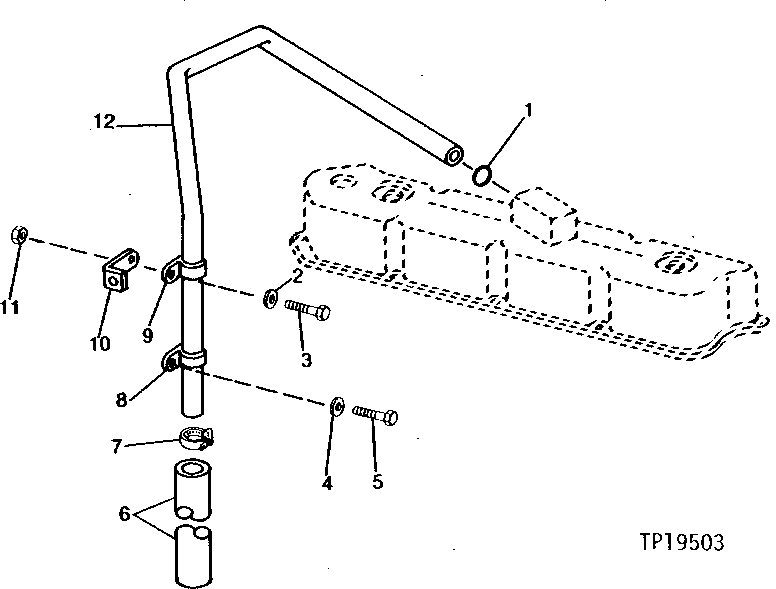

Запчасти John Deere 0D 1 - ENGINE VENTILATOR TUBE 408 - ENGINE 4

1

R56463

O-RING

21.819 X 3.531 MM (55/64" X 0.139")

1шт.

2

24H1685

WASHER

11/32" X 47/64" X 0.083"

ARшт.

3

19H3411

SCREW

3/8" X 1-1/8", (SUB FOR 19H3239, THIS APPLICATION)

1шт.

4

24M7096

WASHER

0.413" X 0.709" X 0.063"

1шт.

5

19H1813

CAP SCREW

5/16" X 5/8"

1шт.

6

R100540

HOSE

(SUB FOR R84484) DO NOT REPLACE

NAшт.

7

AR21839

CLAMP

DO NOT REPLACE

NAшт.

8

R40791

CLAMP

1шт.

9

T24432

CLAMP

(SUB FOR R40791, THIS APPLICATION)

1шт.

10

R73975

BRACKET

1шт.

11

N10215

LOCK NUT

3/8", (SUB FOR 14H812, THIS APPLICATION)

1шт.

12H304

LOCK WASHER

3/8"

ARшт.

12

R109941

TUBE

(SUB FOR R59047)

1шт.
