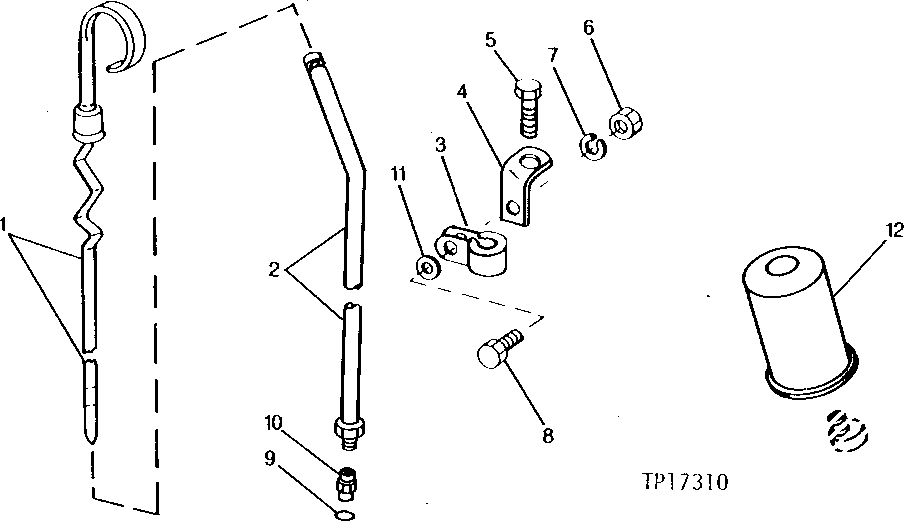

Запчасти John Deere 0D 2 - ENGINE OIL DIPSTICK AND ENGINE OIL FILTER 407 - ENGINE 4

1

RE10191

DIPSTICK

(SUB FOR RE46787, THIS APPLICATION)

1шт.

2

RE30695

DIPSTICK TUBE

1шт.

3

T28862

CLAMP

(SUB FOR T29299)

1шт.

4

R60357

ANGLE

1шт.

5

19H1895

CAP SCREW

1/2" X 3/4"

1шт.

6

N10215

LOCK NUT

3/8", (SUB FOR 14H1076, THIS APPLICATION)

2шт.

7

12H304

LOCK WASHER

3/8"

ARшт.

8

R122618

SCREW

1шт.

9

R10093

O-RING

7.645 X 1.778 MM (0.301" X 0.070")

1шт.

10

R77016

ADAPTER FITTING

1шт.

11

24M7106

WASHER

10 X 18 X 2.500 MM

ARшт.

12

T19044

OIL FILTER

1шт.
