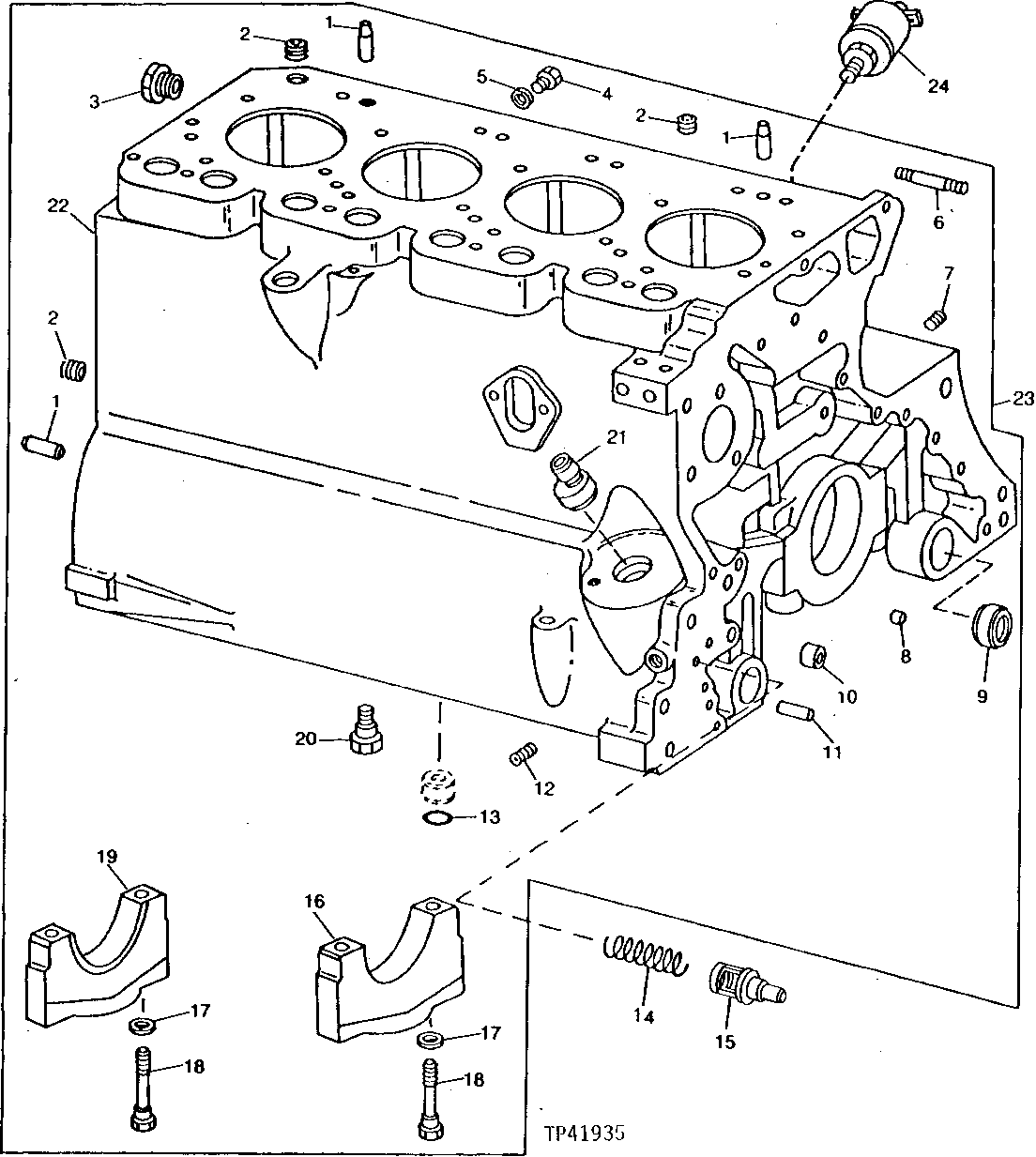

Запчасти John Deere 0D 2 - CYLINDER BLOCK AND MAIN BEARING CAPS 404 - ENGINE 4

1

R48685

DOWEL PIN

4шт.

2

RE57836

PIPE PLUG

1/2", (SUB FOR 15H624)

3шт.

3

15H562

PIPE PLUG

1", 3/8", HEX CTSK, 3/4"

1шт.

4

R39741

DRAIN PLUG

1шт.

5

U13639

O-RING

37.465 X 2.997 MM (1.475" X 0.118")

1шт.

6

R122226

STUD

(SUB FOR R122226)

2шт.

T25701

STUD

1шт.

7

R104592

PIPE PLUG

3.175 MM (1/8")

5шт.

8

T18891

PLUG

1шт.

9

R57160

BUSHING

6шт.

10

R26483

SNAP RING

1шт.

11

R26650

DOWEL PIN

9.525 X 25.400 MM (3/8" X 1")

2шт.

12

15H623

PIPE PLUG

3/8"

1шт.

13

R75892

O-RING

14.884 X 4.064 MM (0.586" X 0.160")

1шт.

14

R111137

SPRING

OIL PRESSURE RELIEF VALVE

1шт.

15

R111135

VALVE

2шт.

16

R65215

BEARING CAP

4шт.

17

T20168

WASHER

13.106 X 21.996 X 2.286 MM (33/64" X 0.866" X 0.090") (OIL PUMP TUBE)

10шт.

18

T23474

CAP SCREW

12.700 X 95.250 MM (1/2" X 3-3/4")

10шт.

19

R79089

CAP

REAR

1шт.

20

R54802

ORIFICE

4шт.

21

T23435

THREADED NIPPLE

1шт.

22

CYLINDER BLOCK

6шт.

23

RE50652

CYLINDER BLOCK

(MARKED R109580) (ALSO ORDER R111135 AND R111137)

1шт.

24

AT85174

SWITCH

ENGINE OIL PRESSURE

1шт.
