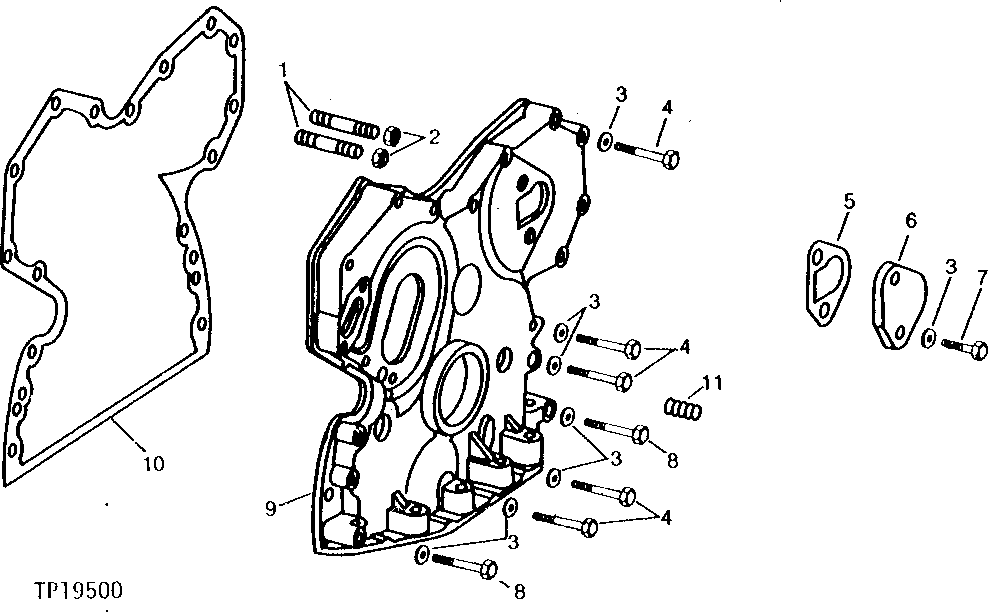

Запчасти John Deere 0D 5 - TIMING GEAR COVER 402 - ENGINE 4

1

R122226

STUD

(SUB FOR R122226)

2шт.

2

N10215

LOCK NUT

3/8", (SUB FOR 14H812, THIS APPLICATION)

2шт.

24M7106

WASHER

10 X 18 X 2.500 MM

ARшт.

3

24M7106

WASHER

10 X 18 X 2.500 MM

ARшт.

4

19H3408

SCREW

3/8" X 1-3/4"

5шт.

19H3693

SCREW

3/8" X 1-1/4"

5шт.

5

R125066

GASKET

(SUB FOR R78366 OR R97773)

1шт.

6

R126041

COVER

(SUB FOR T20362)

1шт.

7

R124277

CAP SCREW

(SUB FOR R122618, THIS APPLICATION)

2шт.

8

19H3733

SCREW

3/8" X 2-1/2"

2шт.

9A

RE39252

COVER

WITH INSERTS, (SUB FOR RE27895)

1шт.

9B

RE56443

COVER

1шт.

10

R126513

GASKET

(SUB FOR T20155, R97454, R119269 OR R121314)

1шт.

11

19H1819

CAP SCREW

3/8" X 2-1/8"

1шт.
