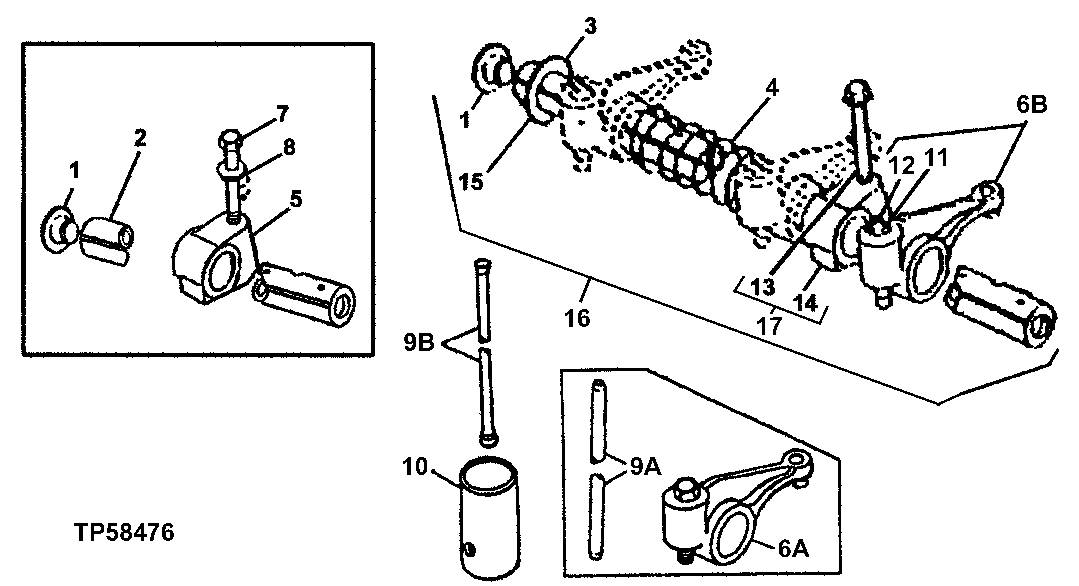

Запчасти John Deere 0D 3 - ROCKER ARM SHAFT, PUSH RODS AND ROCKER ARMS 402 - ENGINE 4

1

R54565

PLUG

2шт.

2

DD12120

ROCKER ARM SHAFT

(SUB FOR R54987) (INCLUDES (2) R54565) (USE WITH 19H3031 AND T20315) (SUB RE502874)

1шт.

3

T20316

WASHER

20.650 X 29.460 X 0.500 MM (0.813" X 1.160" X 0.020")

2шт.

4

T20314

SPRING

3шт.

5

T20315

SUPPORT

(USE WITH 19H3031 AND R54987) (SUB RE502861)

4шт.

6A

RE31973

ROCKER ARM

(SUB FOR RE19031) (MARKED R92439)

8шт.

6B

RE62148

ROCKER ARM

(SUB FOR RE43384) (MARKED R106012)

8шт.

7

19H3031

CAP SCREW

3/8" X 2-1/2"

4шт.

8

R42729

WASHER

10.312 X 20.980 X 2.286 MM (13/32" X 0.826" X 0.090")

4шт.

9A

R82896

PUSH ROD

8шт.

9B

R107732

PUSH ROD

8шт.

10

T20073

TAPPET

8шт.

11

R125881

LOCK NUT

(SUB FOR R119314)

8шт.

12

R125880

SCREW

(SUB FOR R106116)

8шт.

13

19H3733

SCREW

3/8" X 2-1/2"

ARшт.

19H3031

CAP SCREW

ARшт.

14

R123161

SUPPORT

4шт.

15

R123513

ROCKER ARM SHAFT

1шт.

16

RE502874

ROCKER ARM SHAFT

1шт.

17

RE502861

SUPPORT

(SUB R123161 AND R504813)

1шт.
