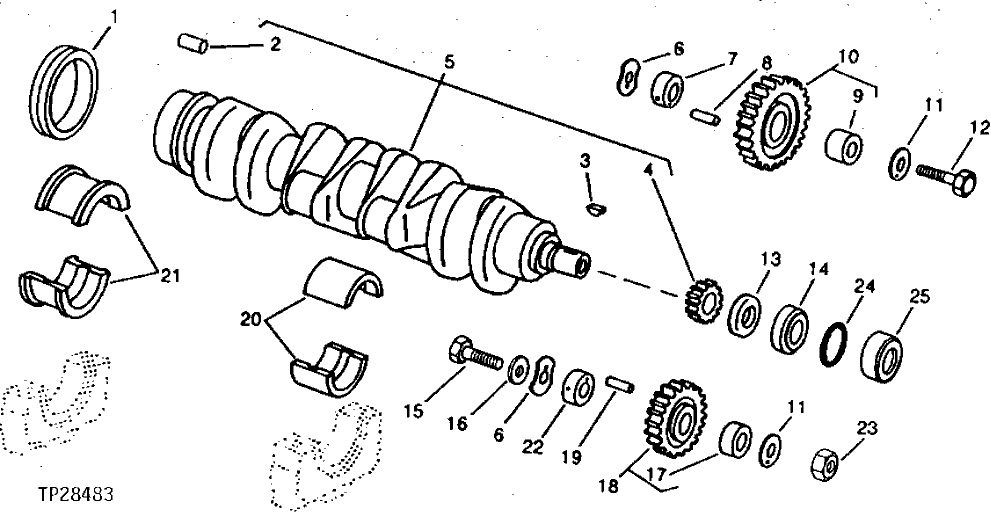

Запчасти John Deere 0D 2 - CRANKSHAFT, IDLER GEARS AND MAIN BEARINGS 401 - ENGINE 4

1

RE44574

SEAL

(SUB FOR RE17831 OR RE24959)

1шт.

2

R48685

DOWEL PIN

(SUB FOR A120R)

1шт.

3

26H72

SHAFT KEY

1/8" X 5/8"

1шт.

4

T20094

HELICAL GEAR

(24 TEETH)

1шт.

5

CRANKSHAFT

RE33197,MARKED R121018 NO LONGER AVAILABLE (SUB FOR AT18030,MARKED R23519 OR T23480, AND RE57664,MARKED R81959)SUB RE48748 CRANKSHAFT KIT

1шт.

CRANKSHAFT

RE36605,MARKED R121018 NO LONGER AVAILABLE (SUB FOR RE50585 AND RE44468,MARKED R81959) SUB RE65224 CRANKSHAFT KIT(LONG NOSE)

1шт.

6

T26324

THRUST WASHER

2шт.

7

R89824

SHAFT

(SUB FOR T26323) (SUB R109863)

1шт.

8

34H283

SPRING PIN

3/16" X 1-1/8"

1шт.

9

T20034

BUSHING

1шт.

10

AR91660

GEAR

(55 TEETH) (MARKED R70182)

1шт.

11

T26326

THRUST WASHER

2шт.

12

T26327

SCREW

12.700 X 57 MM (1/2" X 2.244")

1шт.

13

T20046

OIL SLINGER

1шт.

14

AR67942

SEAL

1шт.

15

T26325

SCREW

14.275 X 19.050 MM (9/16" X 3/4")

2шт.

19H3183

CAP SCREW

1/2" X 2-1/8"

1шт.

16

R76126

WASHER

14.681 X 25.400 X 2.667 MM (37/64" X 1" X 0.105")

2шт.

R100105

WASHER

13.500 X 30 X 3 MM (0.531" X 1.181" X 0.118")

1шт.

17

T26321

BUSHING

1шт.

18

AT24252

GEAR

(45 TEETH) (MARKED T26322)

1шт.

19

34H286

SPRING PIN

3/16" X 1-1/2"

1шт.

20

RE27352

BEARING KIT

(SUB FOR AT21140) STANDARD ( T23214)

4шт.

BEARING

( AT21108 NO LONGER AVAILABLE) 0.05 MM (.002") UNDERSIZE ( T23552)

4шт.

RE27353

BEARING KIT

(SUB FOR AT21110) 0.25 MM (.010") UNDERSIZE ( T23554)

4шт.

RE27360

KIT

(SUB FOR AT21112) 0.51 MM (.020") UNDERSIZE ( T23556)

4шт.

RE27368

KIT

(SUB FOR AT21114) 0.76 MM (.030") UNDERSIZE ( T23558)

4шт.

21

R78598

THRUST WASHER

(SUB FOR AT21139) (SUB RE521350) STANDARD ( T23215)

1шт.

BEARING

( AT21130 NO LONGER AVAILABLE) 0.05 MM (.002") UNDERSIZE ( T23574)

1шт.

AT21132

BEARING

(SUB FOR T23576) 0.25 MM (.010") UNDERSIZE

1шт.

AT21134

BEARING

0.51 MM (.020") UNDERSIZE ( T23578)

1шт.

AT21136

BEARING

0.76 MM (.030") UNDERSIZE ( T23580)

1шт.

22

T26323

SHAFT

(SUB R89824, R100105, 19H3183 AND E69392)

1шт.

R89824

SHAFT

(SUB R109863)

1шт.

23

E69392

NUT

12.700 MM (1/2") (SUB FOR 14H865, THIS APPLICATION)

1шт.

24

H35244

RING

37.821 X 1.778 MM (1.489" X 0.070")

1шт.

25

R81989

SLEEVE

1шт.
