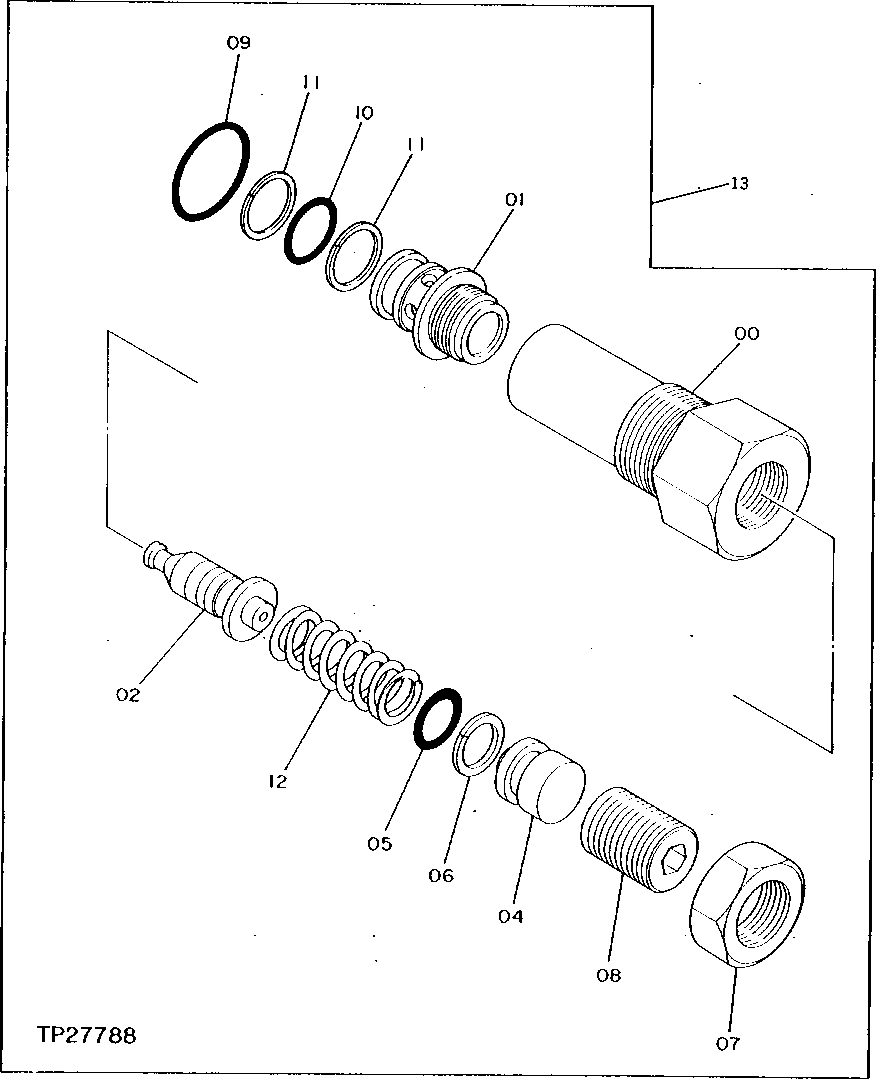

Запчасти John Deere 0D 12 - PROPEL MOTOR RELIEF VALVE 260 - AXLES AND SUSPENSION SYSTEMS 2

0

HOUSING

( TH110505 NO LONGER AVAILABLE)

1шт.

1

SLEEVE

( TH110506 NO LONGER AVAILABLE)

1шт.

2

PISTON

( TH110507 NO LONGER AVAILABLE)

1шт.

4

PLUG

( TH110508 NO LONGER AVAILABLE)

1шт.

5

4317636

O-RING

(SUB FOR TH106280) (SUB FOR AT202454)

1шт.

6

0332924

BACK-UP RING

(SUB FOR TH110461) (SUB FOR TH110325)

1шт.

7

14M7209

NUT

M18, (SUB FOR TH110509)

1шт.

8

SCREW

( TH110510 NO LONGER AVAILABLE)

1шт.

9

CH12329

PACKING

1шт.

10

4185504

O-RING

12.300 X 1.900 MM (0.484" X 0.075") (SUB FOR TH109131)

1шт.

11

4185505

BACK-UP RING

(SUB FOR TH109132)

2шт.

12

COMPRESSION SPRING

( TH110574 NO LONGER AVAILABLE)

1шт.

13

9096565

PRESSURE RELIEF VALVE

(SUB FOR TH110968)

2шт.
