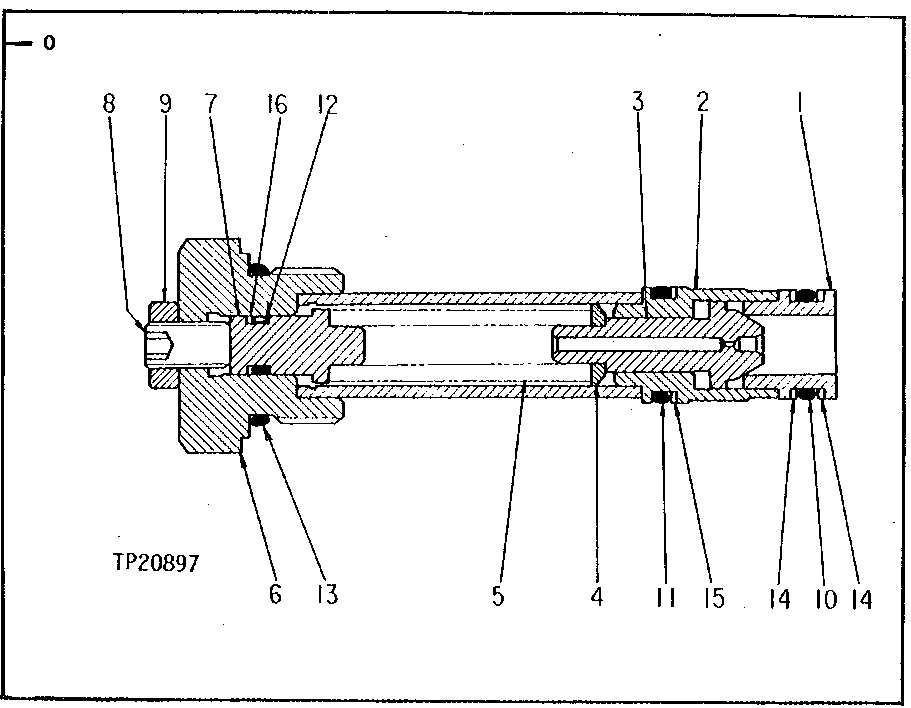

Запчасти John Deere 0D 14 - SWING MOTOR RELIEF VALVE 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43

0

4216817

PRESSURE RELIEF VALVE

(SUB FOR TH110660)

2шт.

1

SEAT

(SUB TH110660)

1шт.

2

HOUSING

(SUB TH110660)

1шт.

3

POPPET

(SUB TH110660)

1шт.

4

SEAT

(SUB TH110660)

1шт.

5

SPRING

(SUB TH110660)

1шт.

6

PLUG

(SUB TH110660)

1шт.

7

GUIDE

(SUB TH110660)

1шт.

8

SET SCREW

(SUB TH110660)

1шт.

9

NUT

(SUB TH110660)

1шт.

10

T111819

O-RING

14.800 X 2.400 MM (0.583" X 0.094")

1шт.

11

4506416

O-RING

15.800 X 2.400 MM (0.622" X 0.094") (SUB FOR TH102561)

1шт.

12

CH11568

PACKING

1шт.

13

U12547

O-RING

23.470 X 2.946 MM (0.924" X 0.116") (SUB FOR TH103582)

1шт.

14

4040814

BACK-UP RING

15 X 19 X 1.250 MM (0.591" X 0.748" X 0.049") (SUB FOR TH105938)

2шт.

15

4085607

BACK-UP RING

(SUB FOR TH102562)

1шт.

16

4046168

BACK-UP RING

(SUB FOR TH109091)

1шт.
