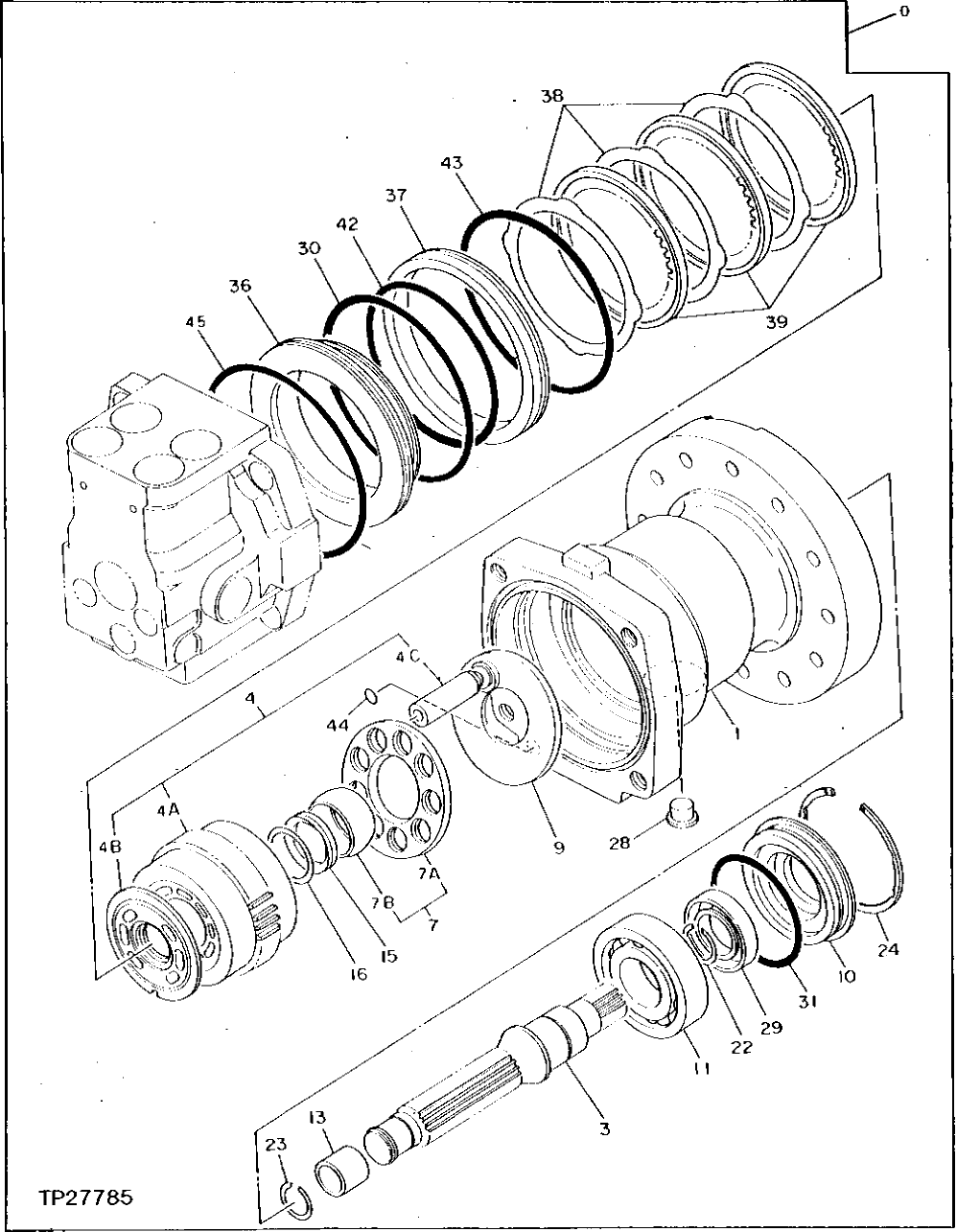

Запчасти John Deere 0D 8 - SWING MOTOR 4360 - SWING, ROTATION OR PIVOTING SYSTEM 43

0

MOTOR

(CONTAINS ALL ITEMS ON THIS PAGE, FOR ADDITIONAL COMPONENTS, SEE FOLLOWING PAGES) (SUB TH111894, ALONG WITH TH109540 ELBOW AND TH100055 O-RING)

1шт.

4224977

HYDRAULIC MOTOR

(CONTAINS ALL ITEMS ON THIS PAGE, (USE WITH TH109540 AND TH100055) (SUB FOR TH111894) FOR ADDITIONAL COMPONENTS, SEE FOLLOWING PAGES)

1шт.

1

CASE

(SUB TH111894)

1шт.

3

0329603

SHAFT

(SUB FOR TH110257)

1шт.

4

CYLINDER BLOCK

( TH110258 OR 0329604 NO LONGER AVAILABLE FOR SERVICE)

1шт.

4A

CYLINDER BLOCK

1шт.

4B

PLATE

1шт.

4C

PISTON

9шт.

7

0329605

PLATE

(SUB FOR TH110259)

1шт.

7A

PLATE

(SUB TH110259)

1шт.

7B

HOLDER

(SUB TH110259)

1шт.

9

0329606

PLATE

(SUB FOR TH110260)

1шт.

10

0329607

CASE

(SUB FOR TH110261)

1шт.

11

0329608

BALL BEARING

(SUB FOR TH110262)

1шт.

13

0329610

BEARING RACE

(SUB FOR TH110264)

1шт.

15

0329612

SPRING

(SUB FOR TH110266)

1шт.

16

0329613

PLATE

(SUB FOR TH110267)

1шт.

22

0329614

SNAP RING

(SUB FOR TH110268)

1шт.

23

0329615

SNAP RING

(SUB FOR TH110269)

1шт.

24

0329616

SNAP RING

(SUB FOR TH110270)

1шт.

28

PLUG

(SUB TH111894)

1шт.

29

0158821

SEAL

(SUB FOR TH110240)

1шт.

30

0329617

O-RING

(SUB FOR TH110271)

1шт.

31

CH18696

PACKING

1шт.

36

0329618

PISTON

(SUB FOR TH110272)

1шт.

37

0329619

BUSHING

(SUB FOR TH110273)

1шт.

38

0329620

PLATE

(SUB FOR TH110274)

4шт.

0329620

PLATE

(SUB FOR TH110274)

3шт.

39

0329621

PLATE

(SUB FOR TH110275)

3шт.

42

0310015

O-RING

(SUB FOR TH110249)

1шт.

43

0329623

O-RING

(SUB FOR TH110277)

1шт.

44

4506408

O-RING

7.800 X 1.900 MM (0.307" X 0.075") (SUB FOR TH101490)

1шт.

CH17167

O-RING

9.800 X 1.900 MM (0.386" X 0.075")

1шт.

45

0329624

O-RING

(SUB FOR TH110278)

1шт.
