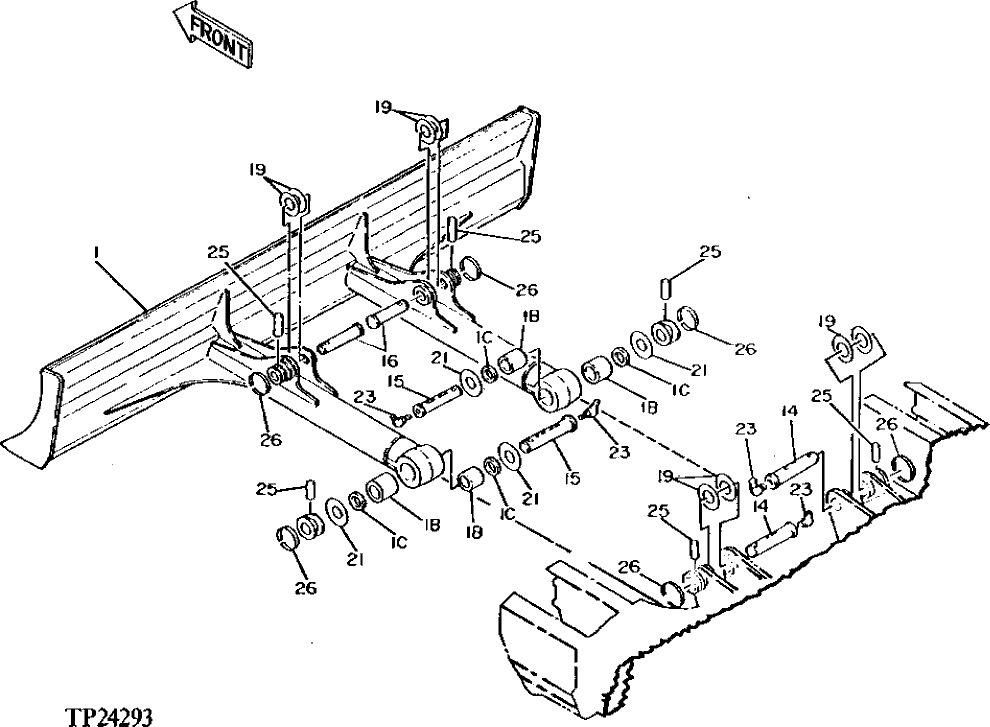

Запчасти John Deere 0D 2 - BLADE 3401 - GRADING DEVICE 34

1

8040478

BLADE

(SUB FOR 9077353, TH110981) (INCLUDES ITEMS 1B AND 1C)

1шт.

1B

4094082

BUSHING

(SUB FOR TH105977) (SUB FOR TH106015)

4шт.

1C

AT318031

SEAL

(SUB FOR 4094087, TH105980)

4шт.

14

3040353

PIN FASTENER

(SUB FOR TH110432)

2шт.

15

3022952

PIN FASTENER

(SUB FOR TH105892)

2шт.

16

3015904

PIN FASTENER

(SUB FOR TH105887)

2шт.

19

4042136

WASHER

(SUB FOR TH105941)

ARшт.

21

4042135

WASHER

56 X 100 X 2.300 MM (2.205" X 3.937" X 0.091") (SUB FOR TH105940)

4шт.

23

T116334

LUBRICATION FITTING

(SUB FOR TH100075)

4шт.

25

4065689

PIN FASTENER

(SUB FOR TH100625)

6шт.

26

4065688

RETAINER

(SUB FOR TH100624)

6шт.
