Запчасти John Deere 0D 80 - BLADE CYLINDER 3360 - EXCAVATOR 33

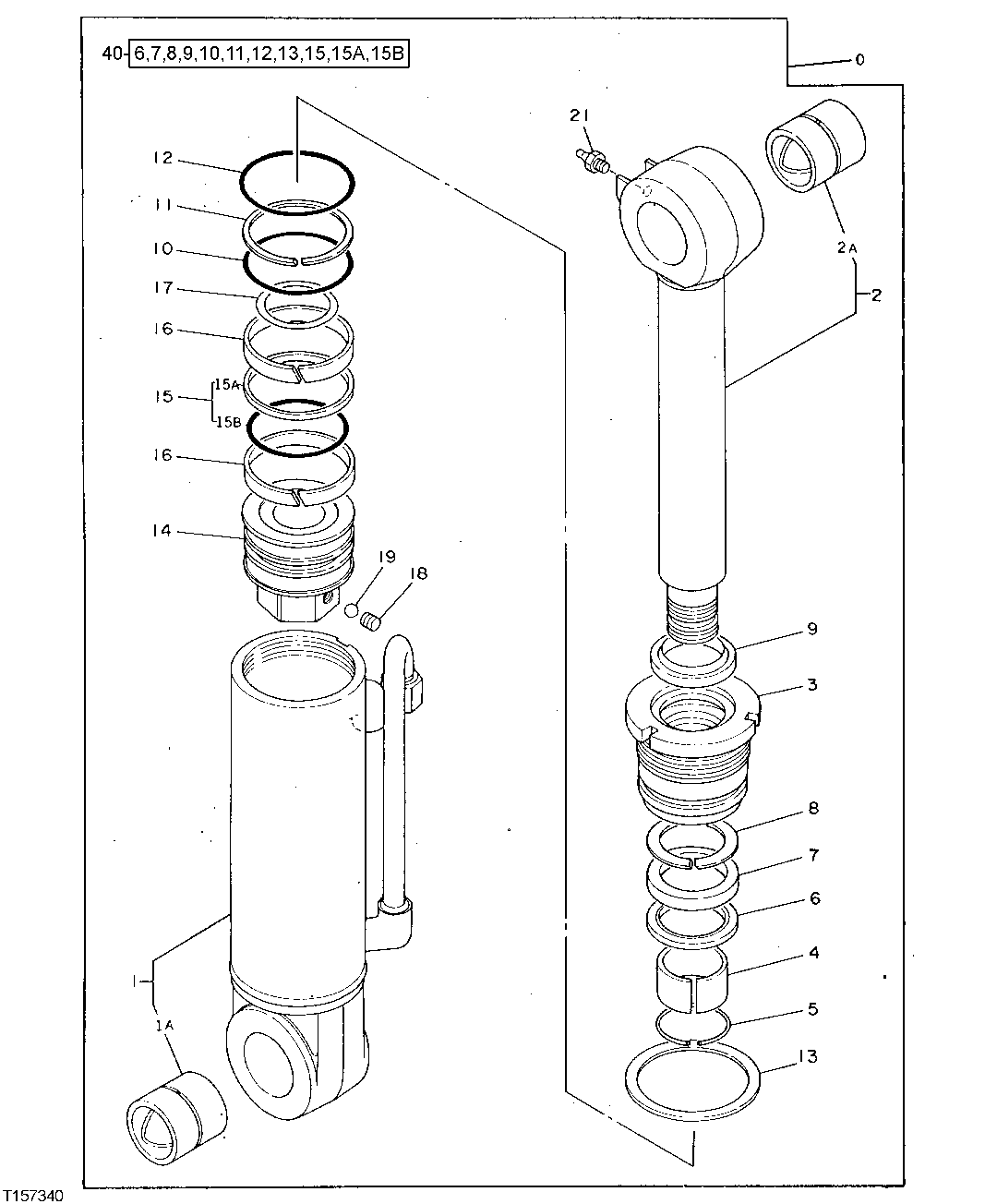

Схема запчастей John Deere 0D - 80 - BLADE CYLINDER 3360 - EXCAVATOR 33

Артикул

Название

Примечание

Количество

0

4213543

HYDRAULIC CYLINDER

(SUB FOR TH110626)

1шт.

1

4249612

HYDRAULIC CYLINDER BARREL

(SUB FOR TH110353) (SUB FOR TH112078)

1шт.

1A

0225808

BUSHING

(SUB FOR TH105788)

1шт.

2

4249613

ROD

(SUB FOR TH110354) (SUB FOR TH112079)

1шт.

2A

0225808

BUSHING

(SUB FOR TH105788)

1шт.

3

0225803

CYLINDER HEAD

(SUB FOR TH105784)

1шт.

4

0479203

BUSHING

(SUB FOR TH106899 OR 4004676)

1шт.

5

0225804

SNAP RING

(SUB FOR TH105785)

1шт.

6

AT264384

RING

(SUB FOR TH105792, 0225812)

1шт.

7

AT264382

SEAL

(SUB FOR TH105790, 0225810)

1шт.

8

AT264383

BACK-UP RING

(SUB FOR TH105791, 0225811)

1шт.

9

AT264381

SEAL

(SUB FOR TH105789, 0453517)

1шт.

10

T204374

O-RING

(SUB FOR TH105932 AND AT264385)

1шт.

11

4017627

BACK-UP RING

(SUB FOR TH105931)

1шт.

12

CH18696

PACKING

(SUB FOR TH105709)

1шт.

13

0178723

LOCK WASHER

97 X 110 X 1.600 MM (3.819" X 4.331" X 0.063") (SUB FOR TH105710)

1шт.

14

0331103

PISTON

(SUB FOR TH110300)

1шт.

15

0243803

RING

(SUB FOR TH105803)

1шт.

15A

O-RING

TH105793 NO LONGER AVAILABLE, (SUB TH105803)

1шт.

15B

O-RING

TH105794 NO LONGER AVAILABLE, (SUB TH105803)

1шт.

16

4S00151

RING

(SUB FOR TH105795)

2шт.

17

0331104

SHIM

(SUB FOR TH110301)

1шт.

18

22M7139

SET SCREW

M10 X 10, (SUB FOR TH109380)

1шт.

19

400R

BALL

6.350 MM (1/4") (SUB FOR TH109381)

1шт.

21

TH100074

LUBRICATION FITTING

1шт.

22

SEAL

(ROD AND HEAD END) (NOT ILLUSTRATED OR INCLUDED IN CYLINDER ASSEMBLY - FOR DETAIL SEE BLADE PLUMBING)

2шт.

40

4217004

SEAL KIT

(ALSO ORDER (3) 4S00151 AND TH106899) (SUB FOR TH110663)

1шт.

Выбрано товаров: 27
