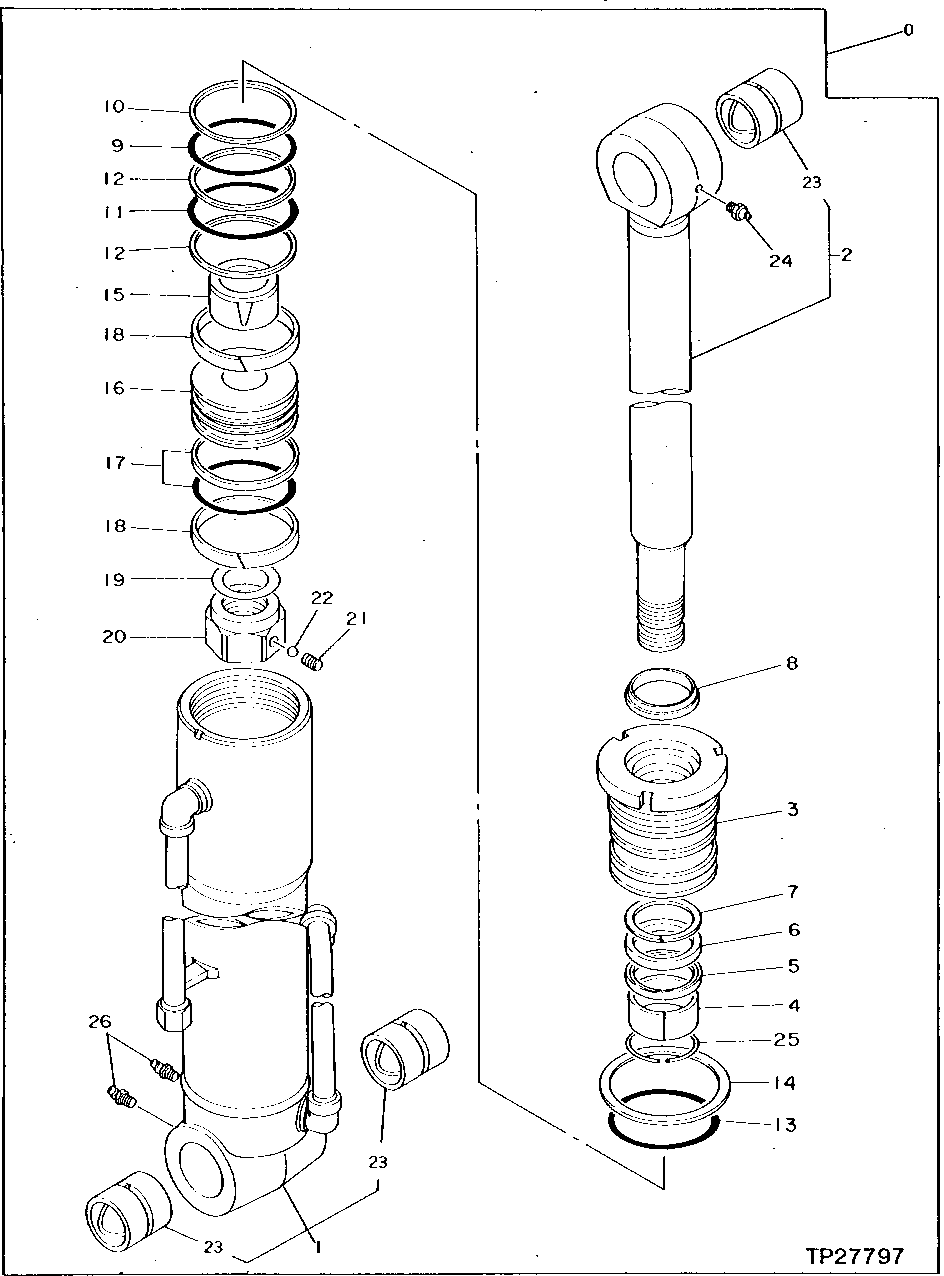

Запчасти John Deere 0D 74 - BOOM CYLINDER 3360 - EXCAVATOR 33

0

4194432

HYDRAULIC CYLINDER

(SUB FOR TH110527)

1шт.

1

HYDRAULIC CYLINDER BARREL

(SUB TH110527) ( TH111714 NO LONGER AVAILABLE)

1шт.

2

4228527

ROD

(SUB FOR TH110288) (SUB FOR TH111711)

1шт.

3

0330903

HYDRAULIC CYLINDER CAP

(SUB FOR TH110289)

1шт.

4

AT264403

BUSHING

(SUB FOR TH110290, 0330904)

1шт.

5

AT264376

RING

(K) (SUB FOR TH105766, 4S00167)

1шт.

6

AT264374

SEAL

(K) (SUB FOR TH105764)

1шт.

7

AT264375

BACK-UP RING

(K) (SUB FOR TH105765)

1шт.

8

H158164

SCRAPER RING

(K) (SUB FOR TH105763)

1шт.

9

4504858

O-RING

(K) 104.600 X 5.700 MM (4.118" X 0.224") (SUB FOR TH106166)

1шт.

10

4512266

BACK-UP RING

(K) (SUB FOR TH106170)

1шт.

11

TH100156

O-RING

(K) 99.600 X 5.700 MM (3.921" X 0.224") (SUB FOR TH106869)

1шт.

12

0296805

BACK-UP RING

(K) (SUB FOR TH110248)

2шт.

13

AT264342

O-RING

(K) (SUB FOR TH105995, TH100125)

1шт.

14

4004685

LOCK WASHER

(K) (SUB FOR TH105936) (SUB FOR TH111702)

1шт.

15

0330905

BEARING

(SUB FOR TH110291)

1шт.

16

0330906

PISTON

(SUB FOR TH110292)

1шт.

17

TH105767

RING

(K)

1шт.

18

TH105770

RING

2шт.

19

TH110253

SHIM

0.300 MM (0.012") (SUB FOR 0326007)

1шт.

20

0326006

NUT

(SUB FOR TH110252)

1шт.

21

22M7139

SET SCREW

M10 X 10, (SUB FOR TH109380)

1шт.

22

400R

BALL

6.350 MM (1/4") (SUB FOR TH109381)

1шт.

23

0225607

BUSHING

(SUB FOR TH105761)

3шт.

24

TH100074

LUBRICATION FITTING

1шт.

25

4510494

SNAP RING

(SUB FOR TH106169)

1шт.

26

T116334

LUBRICATION FITTING

(SUB FOR TH100075)

2шт.

27

SEAL

(ROD AND HEAD END) (NOT ILLUSTRATED OR INCLUDED IN CYLINDER ASSEMBLY - FOR DETAIL SEE BOOM, BUCKET AND ARM PLUMBING)

2шт.
