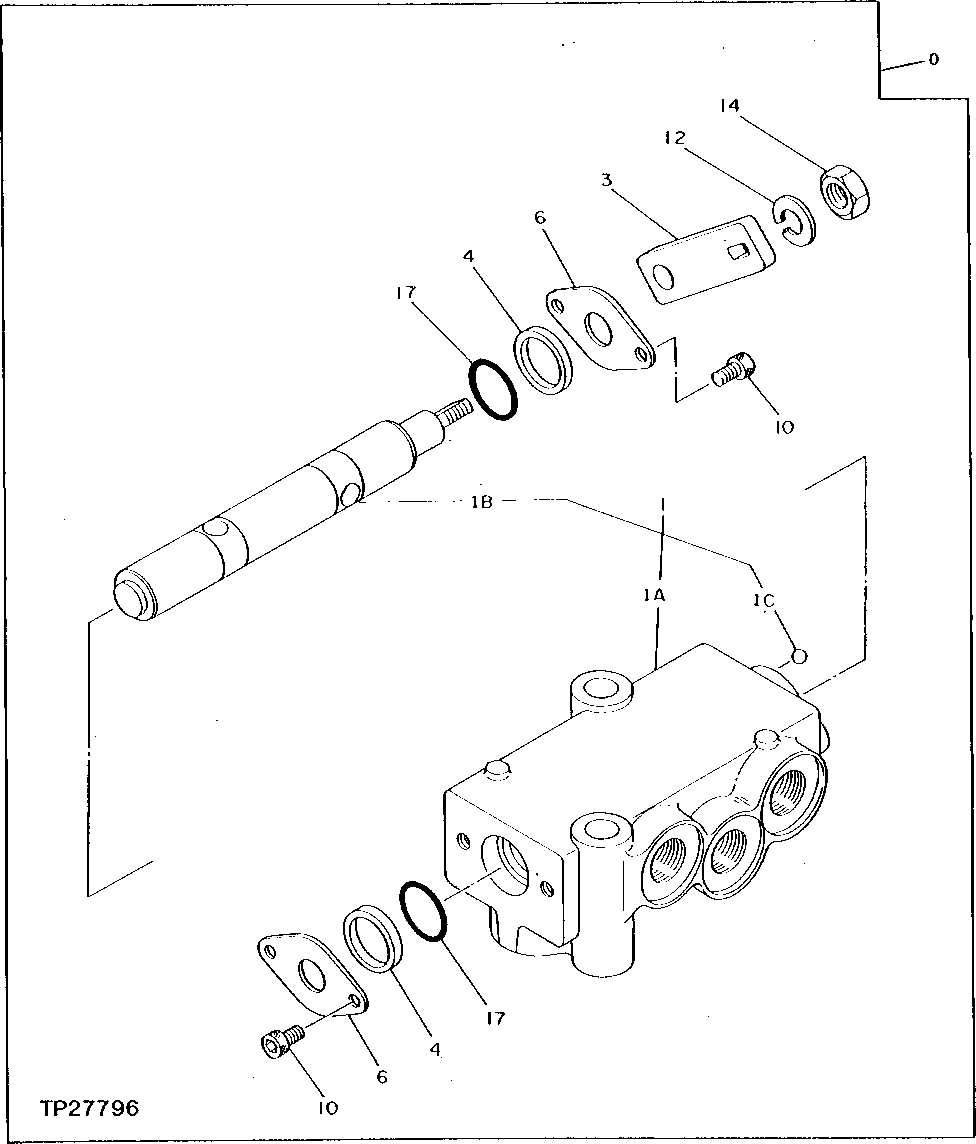

Запчасти John Deere 0D 72 - PILOT SHUT-OFF VALVE 3360 - EXCAVATOR 33

0

4179025

FLOW CONTROL HYD. VALVE

(SUB FOR TH108432)

1шт.

1

HOUSING

(SUB TH108432)

1шт.

1A

HOUSING

(SUB TH108432)

1шт.

1B

SPOOL

(SUB TH108432)

1шт.

1C

0309902

BALL

3 MM (0.118") (SUB FOR TH109297)

1шт.

3

0309903

LEVER

(SUB FOR TH109298)

1шт.

4

0309904

BACK-UP RING

18.100 X 22 X 2.700 MM (0.713" X 0.866" X 0.106") (SUB FOR TH109299)

2шт.

6

0309905

HOLDER

(SUB FOR TH109300)

2шт.

10

0344046

BOLT

M5 X 8, (SUB FOR TH109301) (SUB FOR AT121123)

4шт.

12

12M7066

LOCK WASHER

10 MM, (SUB FOR TH109303)

1шт.

14

0309910

NUT

M10, (SUB FOR TH109305)

1шт.

17

CH14634

O-RING

17.800 X 2.400 MM (0.701" X 0.094")

2шт.
