Запчасти John Deere 0D 70 - FLOW REGULATOR VALVE 3360 - EXCAVATOR 33

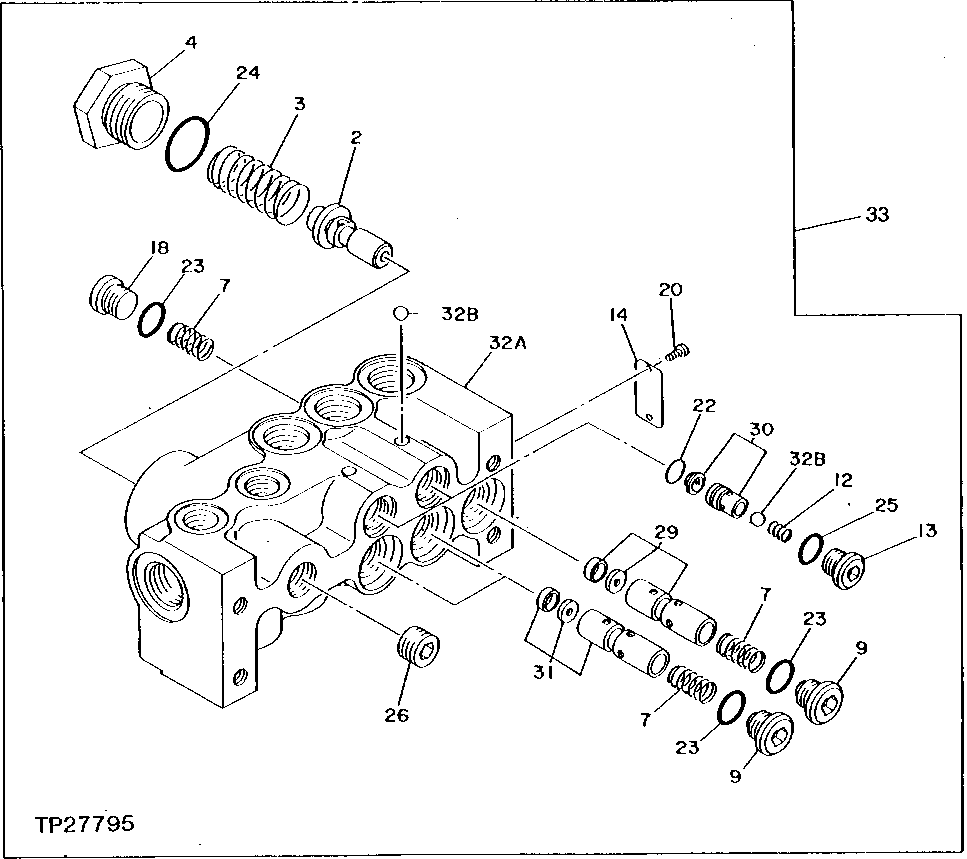

Схема запчастей John Deere 0D - 70 - FLOW REGULATOR VALVE 3360 - EXCAVATOR 33

Артикул

Название

Примечание

Количество

2

0333801

POPPET

(SUB FOR TH110343)

1шт.

3

0333802

SPRING

(SUB FOR TH110344)

1шт.

4

0333803

PIPE PLUG

(SUB FOR TH110207)

1шт.

7

0309801

SPRING

(SUB FOR TH109280)

6шт.

9

0309802

PIPE PLUG

(SUB FOR TH109281)

3шт.

12

0309803

SPRING

(SUB FOR TH109282)

2шт.

13

AT49216

FITTING PLUG

(SUB FOR TH109283) (CONTAINS O-RING)

2шт.

T70177

O-RING

11.887 X 1.981 MM (0.468" X 5/64") (NOT ILLUSTRATED)

1шт.

14

IDENTIFICATION PLATE

(SUB TH110551)

1шт.

18

15M7036

DRAIN PLUG

(SUB FOR TH109285 OR 0309805)

3шт.

20

0208717

SCREW

(SUB FOR TH102697)

2шт.

22

CH11569

PACKING

2шт.

23

CH11570

O-RING

6шт.

24

AT318035

O-RING

(SUB FOR 4506424, TH100055)

1шт.

25

4S00110

O-RING

(SUB FOR TH109284 OR R26448, THIS APPLICATION)

2шт.

26

94-2012

FITTING PLUG

(SUB FOR TH100653)

1шт.

29

0333804

PLUNGER

(SUB FOR TH110345)

1шт.

30

0309810

FILTER

(SUB FOR TH109290)

2шт.

31

0333805

PLUNGER

(SUB FOR TH110346)

2шт.

32A

HOUSING

( TH110347 NO LONGER AVAILABLE)

1шт.

32B

L38718

BALL

6 MM (0.236") (SUB FOR TH109294)

4шт.

33

4197817

FLOW CONTROL HYD. VALVE

(SUB FOR TH110551)

1шт.

Выбрано товаров: 22
