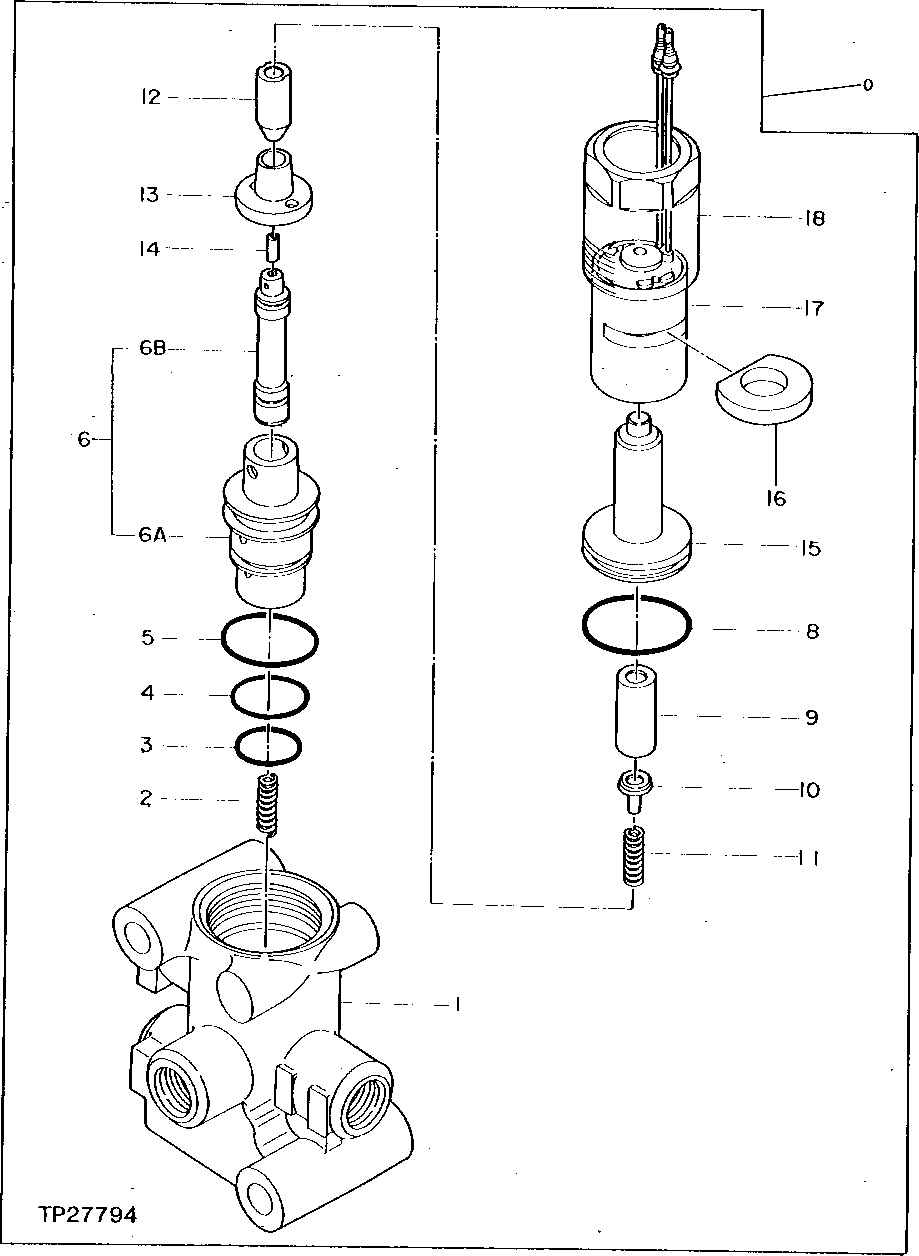

Запчасти John Deere 0D 68 - SOLENOID VALVE 3360 - EXCAVATOR 33

0

4210647

SOLENOID VALVE

(SUB FOR TH110603)

2шт.

1

HOUSING

( TH110254 NO LONGER AVAILABLE)

1шт.

2

0308711

SPRING

(SUB FOR TH109259)

1шт.

3

CH11570

O-RING

1шт.

4

985099

O-RING

20.800 X 2.400 MM (0.819" X 0.094") (SUB FOR TH101479)

1шт.

5

AT264333

O-RING

(SUB FOR TH100096)

1шт.

6

VALVE SPOOL

( TH109260 NO LONGER AVAILABLE)

1шт.

6A

HOUSING

(SUB TH109260)

1шт.

6B

SPOOL

(SUB TH109260)

1шт.

8

0308713

O-RING

28.500 X 2 MM (1.122" X 0.079") (SUB FOR TH109261)

1шт.

9

4488303

LINE

(SUB FOR TH109262 OR 0308714)

1шт.

10

4488306

VALVE SEAT

(SUB FOR TH109263, 0308715 OR 4605187)

1шт.

11

4488310

SPRING

(SUB FOR TH109264 OR 0308716)

1шт.

12

3096332

PLUNGER

(SUB FOR TH109265 OR 0308717)

1шт.

13

0308718

STOP

(SUB FOR TH109266)

1шт.

14

0308719

PIN

(SUB FOR TH109267)

1шт.

15

HOUSING

( TH109268 NO LONGER AVAILABLE)

1шт.

16

4488304

SPACER

(SUB FOR TH109269 OR 0308721)

1шт.

17

0308722

SOLENOID

(SUB FOR TH109270)

1шт.

18

0308724

SCREW

(SUB FOR TH109272)

1шт.
