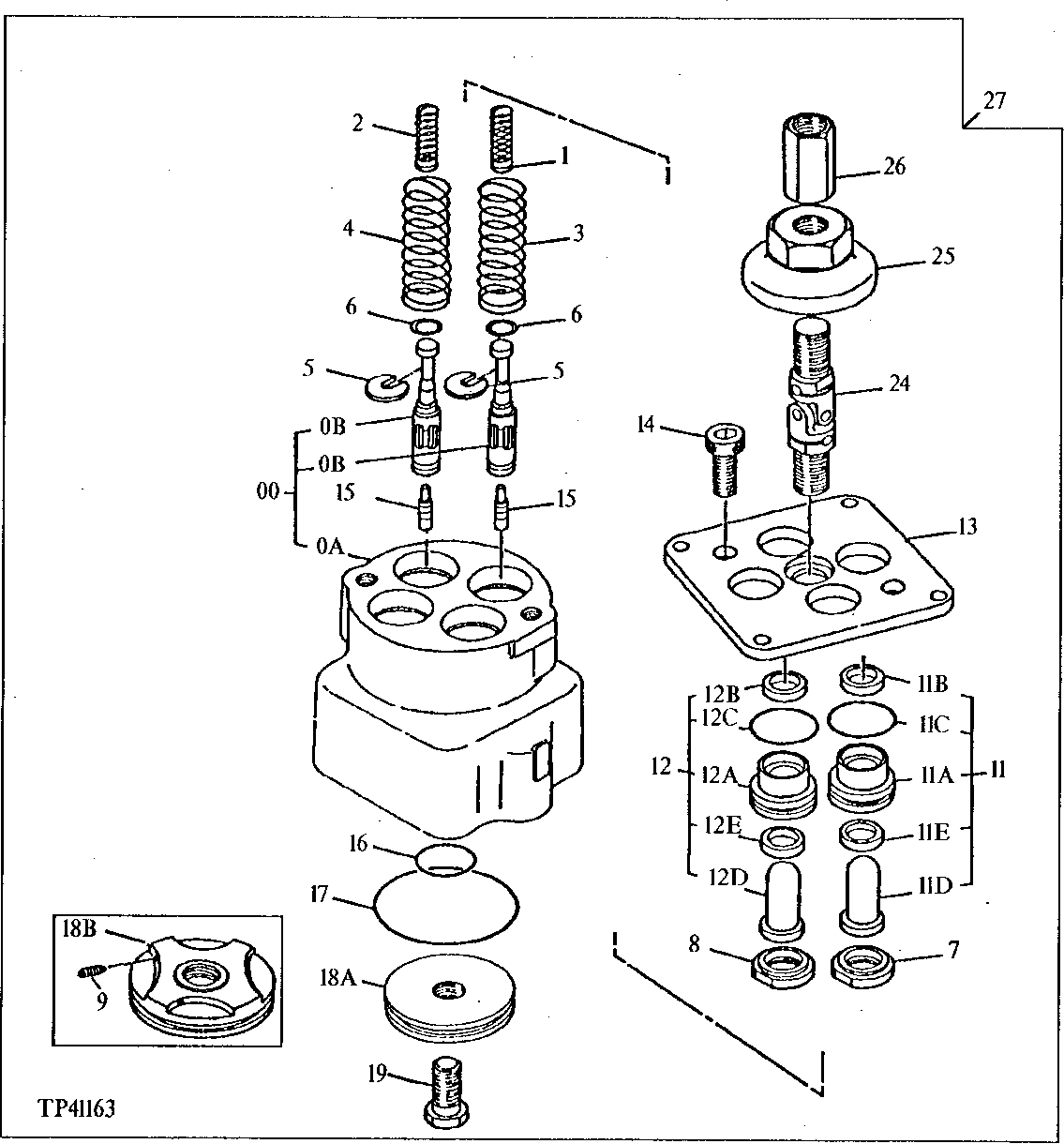

Запчасти John Deere 0D 64 - PILOT VALVE 3360 - EXCAVATOR 33

0

CASE

1шт.

0A

CASE

1шт.

0B

SPOOL

4шт.

1

4201915

SPRING

(SUB FOR TH109212)

2шт.

2

4166686

COMPRESSION SPRING

(SUB FOR TH109213)

2шт.

3

4210793

COMPRESSION SPRING

(SUB FOR AT134060) (PORTS 1 AND 3)

2шт.

4

4210794

COMPRESSION SPRING

(SUB FOR AT134061)

2шт.

5

4177777

SPACER

(SUB FOR TH109216)

4шт.

6

4173208

SHIM

(SUB FOR TH109217)

20шт.

7

4179257

GUIDE

(SUB FOR TH109219) (1,3 PORT)

2шт.

8

4177896

GUIDE

(SUB FOR TH109218) (2,4 PORT)

2шт.

9

ORIFICE

(SUB AT131276) ( AT131242 NO LONGER AVAILABLE)

2шт.

11

PLUNGER

(SUB (2) 9104359, (2) 9104360 AND 4284175) (PORTS 1 AND 3) ( 9089809 NO LONGER AVAILABLE)

2шт.

11A

BUSHING

1шт.

11B

4240150

SEAL

(SUB FOR TH111960)

1шт.

11C

U46166

O-RING

24.400 X 3.100 MM (0.961" X 0.122")

1шт.

11D

PUSH ROD

1шт.

11E

4240151

SEAL

(SUB FOR TH109224)

1шт.

12

PLUNGER

(SUB (2) 9104359, (2) 9104360 AND 4284175) (PORTS 2 AND 4) ( 9089808 NO LONGER AVAILABLE)

2шт.

12A

BUSHING

1шт.

12B

4240150

SEAL

(SUB FOR TH111960)

1шт.

12C

U46166

O-RING

24.400 X 3.100 MM (0.961" X 0.122")

1шт.

12D

PUSH ROD

1шт.

12E

4240151

SEAL

(SUB FOR TH109224)

1шт.

13

PLATE

(SUB 4284175, ALONG WITH (2) 9104359 AND (2) 9104360)

1шт.

14

19M8440

SCREW

M10 X 25, (PORTS 2 AND 4)

2шт.

15

4184929

PISTON

(SUB FOR TH109228)

4шт.

16

CH11562

O-RING

1шт.

17

CH11571

PACKING

1шт.

18A

4184954

PLATE

(SUB FOR TH109229) (USE WITH AT127179 VALVE)

1шт.

4284024

PLATE

(SUB FOR AT131276) (USE WITH AT130916 VALVE)

1шт.

18B

PLATE

(SUB AT131276) (USE WITH AT130916 VALVE) ( AT131241 NO LONGER AVAILABLE)

1шт.

19

19M8168

SCREW

M12 X 25

1шт.

24

4285209

UNIVERSAL JOINT

(SUB FOR TH109230)

1шт.

25

4184931

CAM

(SUB FOR TH109231)

1шт.

26

4182067

JOINTER

(SUB FOR TH109232)

1шт.

27

AT189840

HYD/PILOT CNTL VALVE REMAN

(USE AT131277 IF AVAILABLE) ( AT130916 NO LONGER AVAILABLE) (SUB FOR AT131277, TH111710, TH108366 OR AT127179)

1шт.
