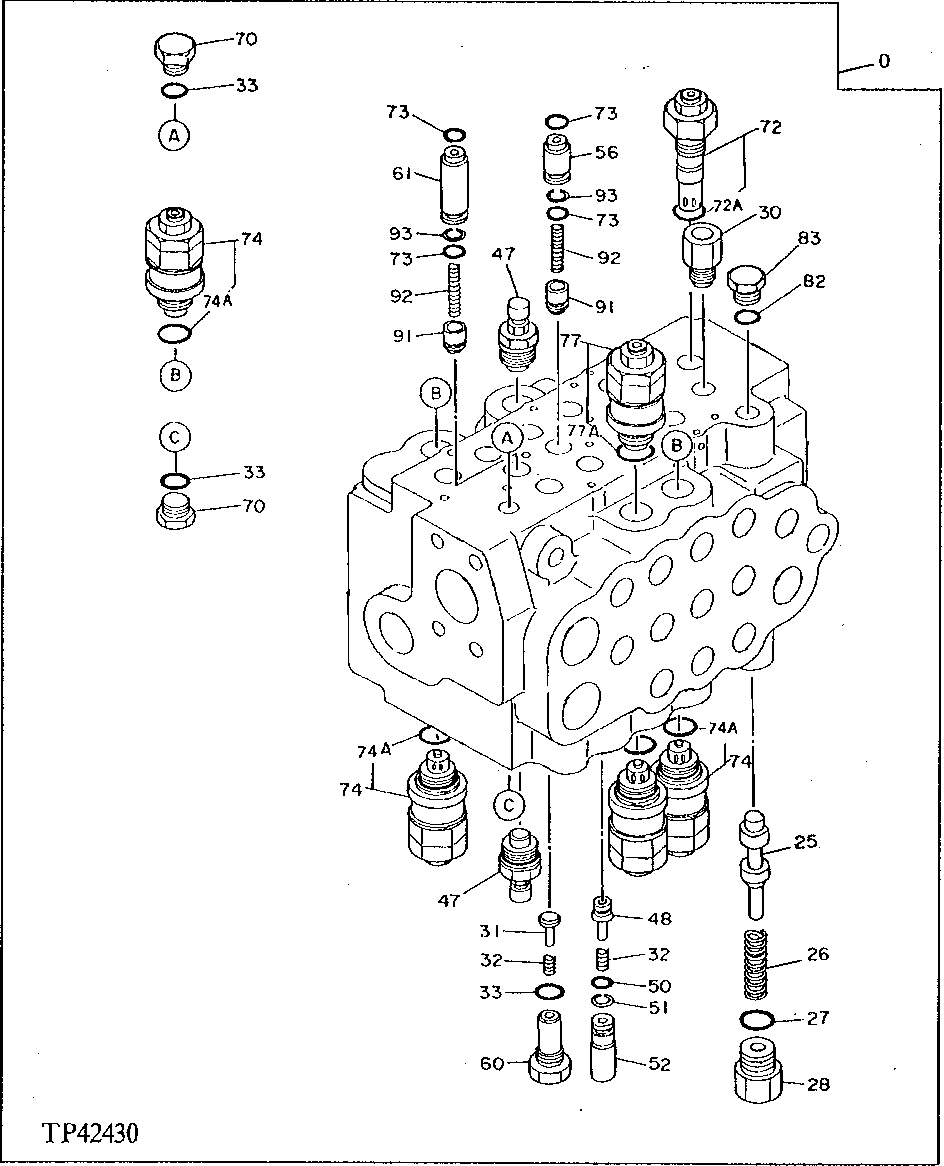

Запчасти John Deere 0D 58 - CONTROL VALVE 3360 - EXCAVATOR 33

0

4194447

HYD ACTUATED CONTROL VALVE

(SUB FOR TH110531) (CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON PREVIOUS PAGES) (SEE SECTION DESCRIPTIONS ON A PREVIOUS PAGE)

1шт.

25

PLUG

(SUB TH110531)

1шт.

26

0332908

SPRING

(SUB FOR TH110309)

1шт.

27

R26906

O-RING

19.177 X 2.464 MM (0.755" X 0.097") (SUB FOR TH102753)

1шт.

28

0332909

DRAIN PLUG

(SUB FOR TH110310)

1шт.

30

0332911

DRAIN PLUG

(SUB FOR TH110312)

1шт.

31

0332912

POPPET

(SUB FOR TH110313)

1шт.

32

0332913

SPRING

(SUB FOR TH110314)

2шт.

33

CH11570

O-RING

3шт.

47

0332922

FLOW CONTROL HYD. VALVE

(SUB FOR TH110323)

2шт.

48

0332923

POPPET

(SUB FOR TH110324)

1шт.

50

CH10571

PACKING

1шт.

51

0332924

BACK-UP RING

10 X 14 X 1.250 MM (0.394" X 0.551" X 0.049") (SUB FOR TH110325)

1шт.

52

0332925

PLUG

(SUB FOR TH110326)

1шт.

56

0332927

PLUG

(SUB FOR TH110328)

1шт.

60

0332931

FITTING

(SUB FOR TH110332)

1шт.

61

0332932

PLUG

(SUB FOR TH110333)

1шт.

70

0218608

DRAIN PLUG

(SUB FOR TH110243)

2шт.

72

0332937

PRESSURE RELIEF VALVE

(SUB FOR TH110338)

1шт.

72A

R26375

O-RING

16.358 X 2.210 MM (0.644" X 0.087") (SUB FOR TH104773)

1шт.

73

4140438

O-RING

(SUB FOR TH110456)

4шт.

74

0332938

PRESSURE RELIEF VALVE

(SUB FOR TH110339)

5шт.

74A

R26906

O-RING

19.177 X 2.464 MM (0.755" X 0.097") (SUB FOR TH102753)

1шт.

77

0332939

PRESSURE RELIEF VALVE

(SUB FOR TH110340)

1шт.

77A

R26906

O-RING

19.177 X 2.464 MM (0.755" X 0.097") (SUB FOR TH102753)

1шт.

82

R26375

O-RING

16.358 X 2.210 MM (0.644" X 0.087") (SUB FOR TH104773)

1шт.

83

0168307

DRAIN PLUG

(SUB FOR TH110241)

1шт.

91

0332941

POPPET

(SUB FOR TH110342)

2шт.

92

0224416

SPRING

(SUB FOR TH102752)

2шт.

93

4040813

BACK-UP RING

(SUB FOR TH110449)

2шт.
