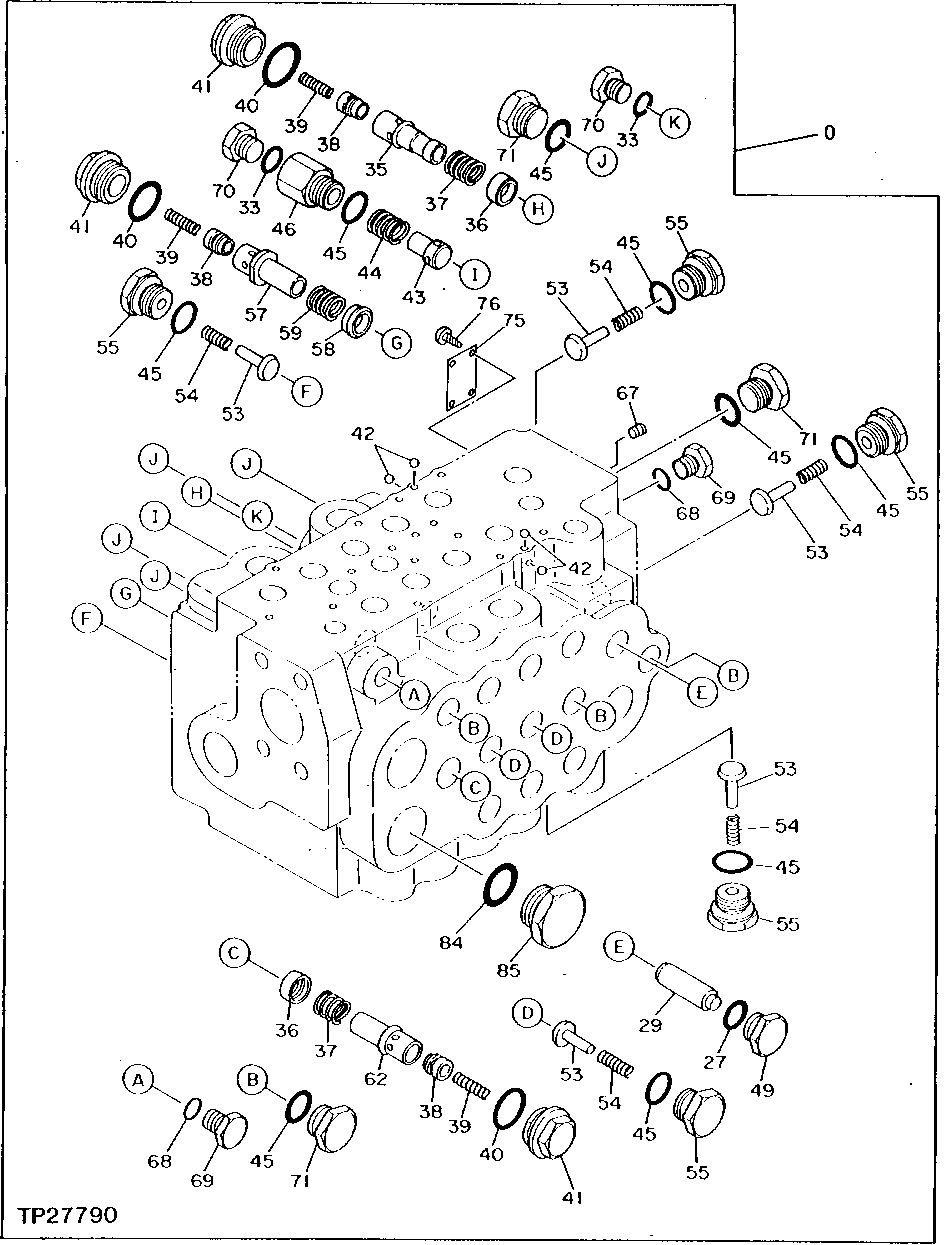

Запчасти John Deere 0D 56 - CONTROL VALVE 3360 - EXCAVATOR 33

0

4194447

HYD ACTUATED CONTROL VALVE

(SUB FOR TH110531) (CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES) (SEE SECTION DESCRIPTIONS ON A PREVIOUS PAGE)

1шт.

27

R26906

O-RING

19.177 X 2.464 MM (0.755" X 0.097") (SUB FOR TH102753)

1шт.

29

0332910

PIN

(SUB FOR TH110311)

1шт.

33

CH11570

O-RING

2шт.

35

0332915

SLEEVE

(SUB FOR TH110316)

1шт.

36

0332916

POPPET

(SUB FOR TH110317)

2шт.

37

0332917

SPRING

(SUB FOR TH110318)

2шт.

38

0103012

POPPET

(SUB FOR TH105703)

3шт.

39

0103013

SPRING

(SUB FOR TH105704)

3шт.

40

AT318035

O-RING

(SUB FOR 4506424, TH100055)

3шт.

41

0332918

DRAIN PLUG

(SUB FOR TH110319)

3шт.

42

BALL

6шт.

43

0332919

POPPET

(SUB FOR TH110320)

1шт.

44

0332920

SPRING

(SUB FOR TH110321)

1шт.

45

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR U46489)

15шт.

46

0332921

FITTING

(SUB FOR TH110322)

1шт.

49

0187502

DRAIN PLUG

(SUB FOR TH110242)

1шт.

53

0332926

POPPET

(SUB FOR TH110327)

6шт.

54

0225209

SPRING

(SUB FOR TH105754)

6шт.

55

0225210

FITTING PLUG

(SUB FOR TH105755)

6шт.

57

0332928

SPOOL

(SUB FOR TH110329)

1шт.

58

0332929

POPPET

(SUB FOR TH110330)

1шт.

59

0332930

SPRING

(SUB FOR TH110331)

1шт.

62

0332933

SLEEVE

(SUB FOR TH110334)

1шт.

67

94-2010

FITTING PLUG

(SUB FOR TH100689)

1шт.

68

M800650

PACKING

2шт.

69

0332936

FITTING

(SUB FOR TH110337)

2шт.

70

0218608

DRAIN PLUG

(SUB FOR TH110243)

2шт.

71

0225216

FITTING PLUG

(SUB FOR TH105757)

8шт.

75

IDENTIFICATION PLATE

1шт.

76

SCREW

4шт.

84

TH101926

O-RING

28.700 X 3.500 MM (1.130" X 0.138")

1шт.

85

0332940

FITTING

(SUB FOR TH110341)

1шт.
