Запчасти John Deere 0D 50 - PILOT GEAR PUMP 3360 - EXCAVATOR 33

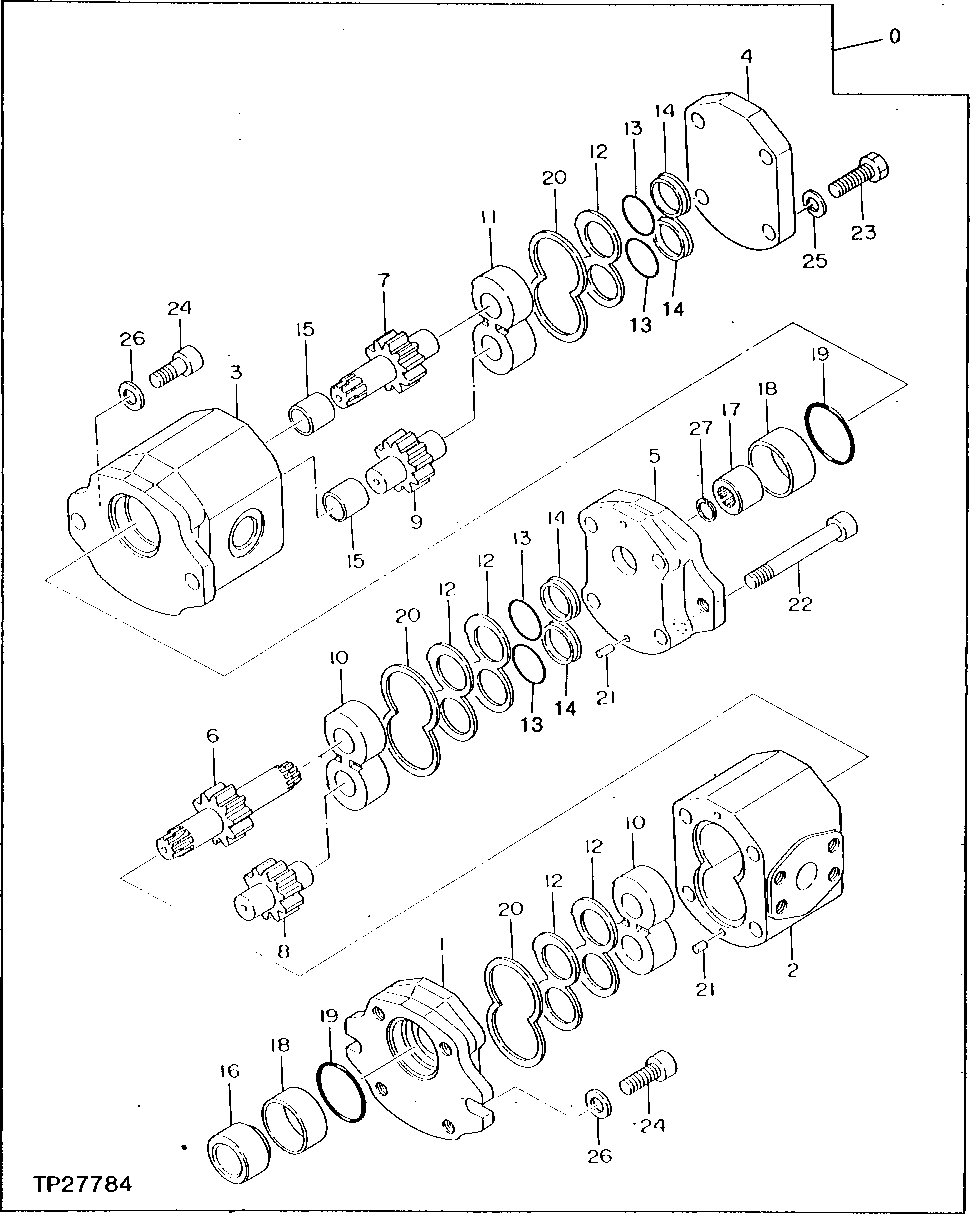

Схема запчастей John Deere 0D - 50 - PILOT GEAR PUMP 3360 - EXCAVATOR 33

Артикул

Название

Примечание

Количество

0

4220737

PUMP

(SUB FOR TH110775)

1шт.

1

FRAME

( TH110355 NO LONGER AVAILABLE)

1шт.

2

HOUSING

(SUB TH110775)

1шт.

3

HOUSING

(SUB TH110775)

1шт.

4

COVER

( TH106819 NO LONGER AVAILABLE)

1шт.

5

0335602

FRAME

(SUB FOR TH110356) (FLANGE)

1шт.

6

DRIVE

(SUB TH110775)

1шт.

7

GEAR

(SUB TH110775)

1шт.

8

IDLER

(SUB TH110775)

1шт.

9

GEAR

(SUB TH110775)

1шт.

10

PLATE

(SUB TH110775)

2шт.

11

PLATE

(SUB TH110775)

1шт.

12

0295002

PLATE

(SUB FOR TH106820) (THRUST)

5шт.

13

0295006

O-RING

26 X 2.500 MM (1.024" X 0.098") (SUB FOR TH105862)

4шт.

14

0295003

GUIDE

(SUB FOR TH106821)

4шт.

15

PLATE

(SUB TH110775)

2шт.

16

COUPLING

( TH105804 NO LONGER AVAILABLE)

1шт.

17

COUPLING

( TH106878 NO LONGER AVAILABLE)

1шт.

18

TH105805

BUSHING

2шт.

19

0295005

O-RING

42 X 2.400 MM (1.654" X 0.094") (SUB FOR TH105861)

2шт.

20

0295004

RING

(SUB FOR TH105860) (SEAL)

3шт.

21

0330401

DOWEL PIN

5 X 10 MM (0.197" X 0.394") (SUB FOR TH110281)

4шт.

22

19M8336

SCREW

M10 X 100, (SUB FOR TH106879)

4шт.

23

19M7662

CAP SCREW

(SUB FOR TH105807) (SUB FOR 0284310)

4шт.

24

19M8533

SCREW

M10 X 25, (SUB FOR TH105863)

4шт.

25

12M7066

LOCK WASHER

10 MM, (SUB FOR TH105808)

4шт.

26

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH105864)

4шт.

27

40M7129

SNAP RING

(SUB FOR TH106880)

1шт.

Выбрано товаров: 28
