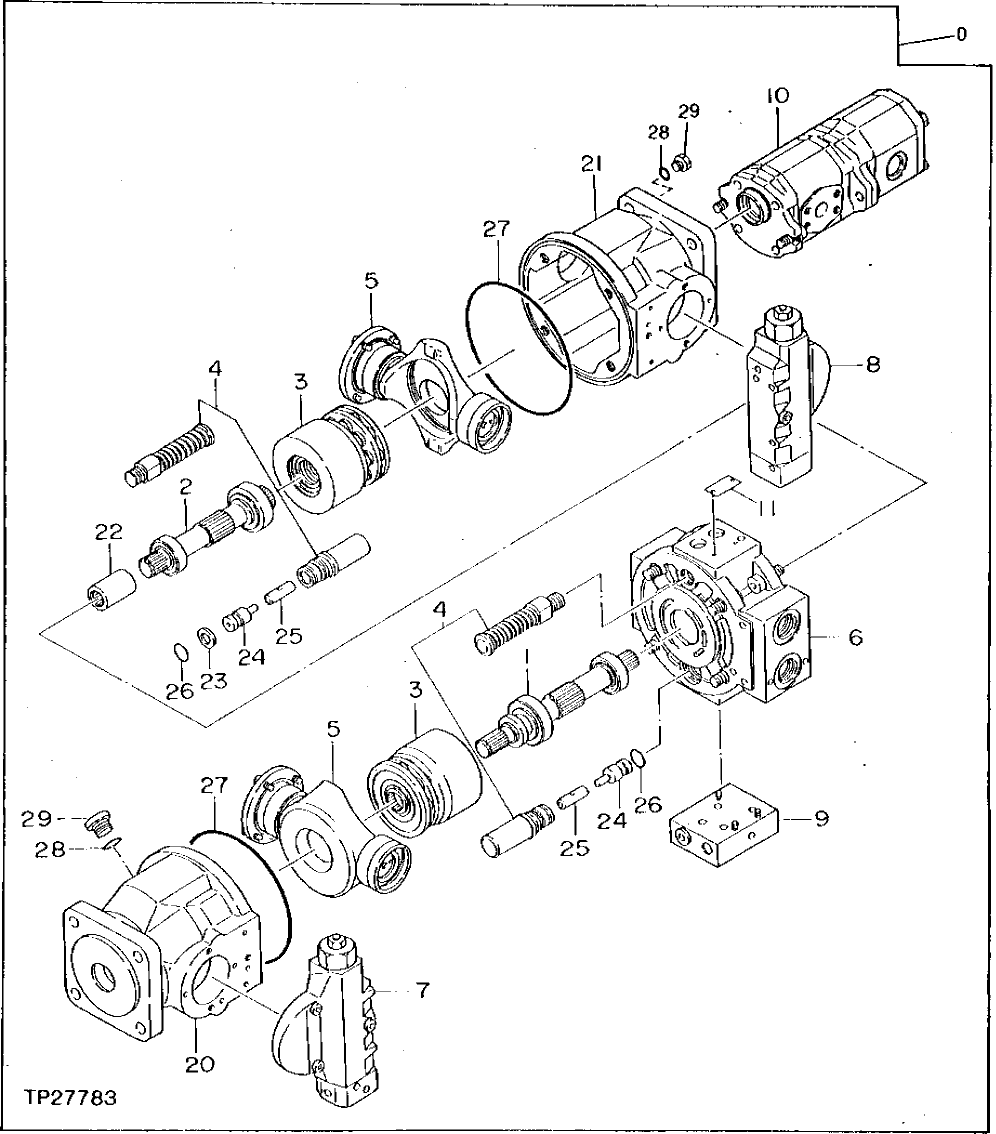

Запчасти John Deere 0D 46 - PISTON PUMP 3360 - EXCAVATOR 33

0

PUMP

( 4213029 NLA)

1шт.

1

4217005

SHAFT

(SUB FOR TH110664) (FRONT) (WITH BEARINGS)

1шт.

2

4217006

SHAFT

(SUB FOR TH110665) REAR (WITH BEARINGS)

1шт.

3

4217007

MOUNTING PARTS

(SUB FOR TH110666) (ROTATE GROUP)

2шт.

4

4217008

PISTON

(SUB FOR TH110667)

2шт.

5

HANGER

SWASH PLATE ( 4217009 NLA)

2шт.

6

4217010

MANIFOLD

(SUB FOR TH110669) (MANIFOLD)

1шт.

7

4217011

CONTROL

(SUB FOR TH110670) FRONT

1шт.

8

4217013

CONTROL

(SUB FOR TH110672) REAR

1шт.

9

4217014

FLOW CONTROL HYD. VALVE

(SUB FOR TH110673) (BLADE)

1шт.

10

4220737

PUMP

(SUB FOR TH110775) (BLADE)

1шт.

11

IDENTIFICATION PLATE

(SUB TH110614)

1шт.

20

HOUSING

(SUB TH110614)

1шт.

21

HOUSING

(SUB TH110614)

1шт.

22

0294412

COUPLING

(SUB FOR TH105845)

1шт.

23

O-RING

(SUB TH110614)

1шт.

24

PISTON

(SUB TH110614)

2шт.

25

0294413

PACKING

(SUB FOR TH105846)

2шт.

26

0294414

O-RING

21.946 X 1.778 MM (0.864" X 0.070") (SUB FOR TH105847)

2шт.

27

4S00059

O-RING

164.770 X 2.616 MM (6.487" X 0.103") (SUB FOR TH105848)

2шт.

28

CH14634

O-RING

17.800 X 2.400 MM (0.701" X 0.094")

2шт.

29

0294416

PIPE PLUG

(SUB FOR TH105849)

2шт.
