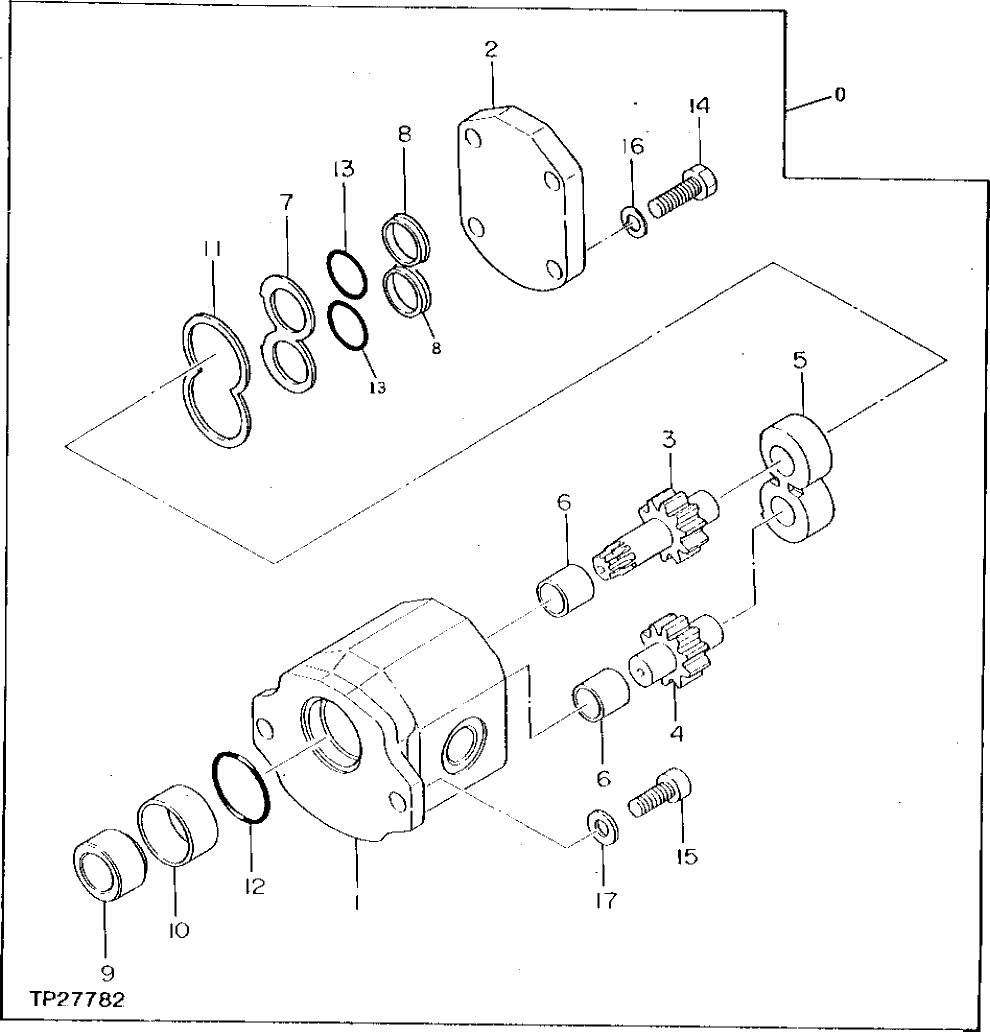

Запчасти John Deere 0D 44 - STANDARD PISTON PUMP PILOT GEAR PUMP 3360 - EXCAVATOR 33

0

4217015

PUMP

(SUB FOR TH110674)

1шт.

1

CASE

(SUB TH110674)

1шт.

2

COVER

( TH106819 NO LONGER AVAILABLE)

1шт.

3

GEAR

(SUB TH110674)

1шт.

4

GEAR

(SUB TH110674)

1шт.

5

PLATE

(SUB TH110674)

1шт.

6

PLATE

(SUB TH110674)

2шт.

7

0295002

PLATE

(SUB FOR TH106820)

1шт.

8

0295003

GUIDE

(SUB FOR TH106821)

2шт.

9

COUPLING

( TH105840 NO LONGER AVAILABLE)

1шт.

10

TH105805

BUSHING

1шт.

11

0295004

RING

(SUB FOR TH105860)

1шт.

12

0295005

O-RING

42 X 2.400 MM (1.654" X 0.094") (SUB FOR TH105861)

1шт.

13

0295006

O-RING

26 X 2.500 MM (1.024" X 0.098") (SUB FOR TH105862)

2шт.

14

19M7662

CAP SCREW

(SUB FOR TH105807) (SUB FOR 0284310)

4шт.

15

19M8533

SCREW

M10 X 25, (SUB FOR TH105863)

2шт.

16

12M7066

LOCK WASHER

10 MM, (SUB FOR TH105808)

4шт.

17

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH105864)

2шт.
