Запчасти John Deere 0D 24 - PISTON PUMP 3360 - EXCAVATOR 33

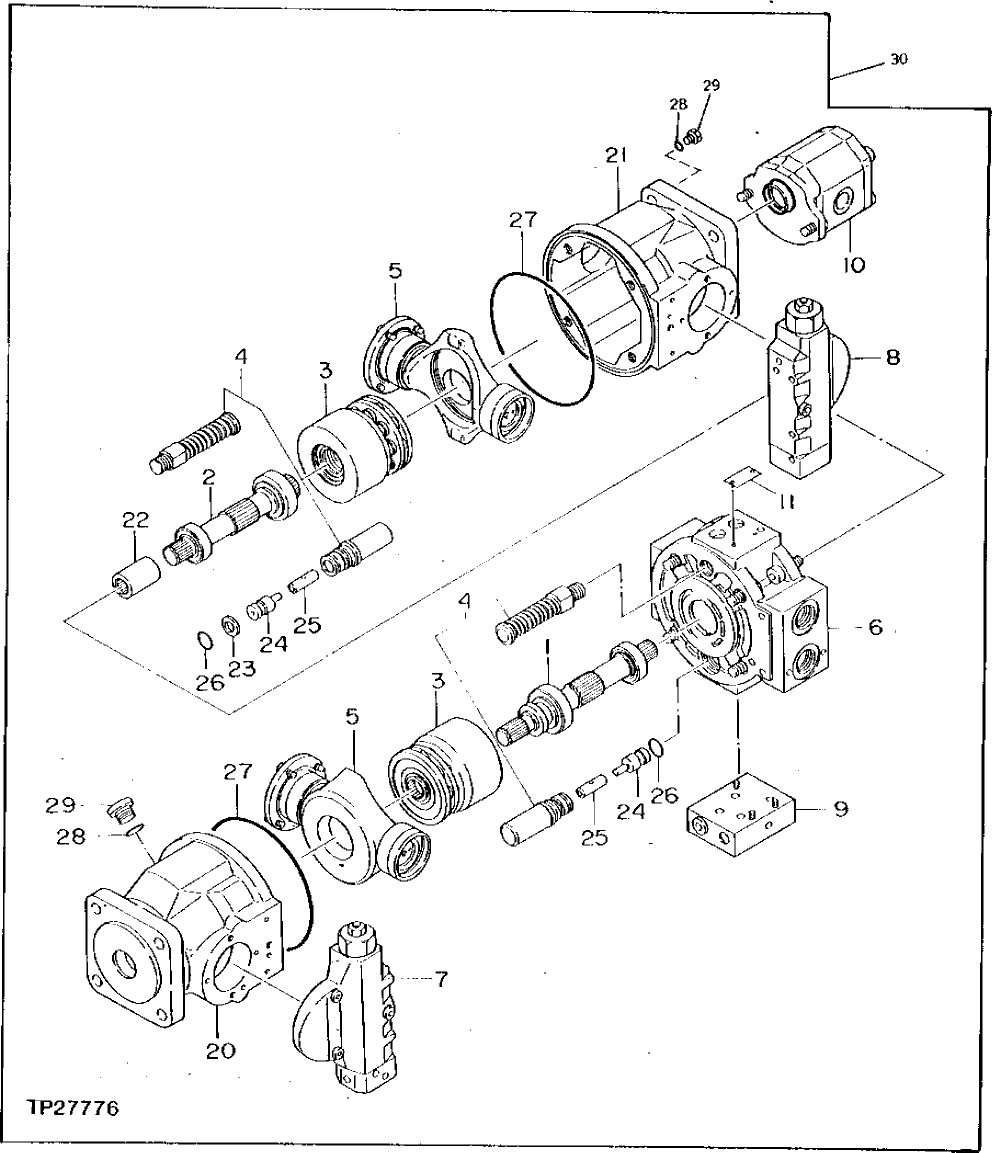

Схема запчастей John Deere 0D - 24 - PISTON PUMP 3360 - EXCAVATOR 33

Артикул

Название

Примечание

Количество

1

4217005

SHAFT

(SUB FOR TH110664) (FRONT WITH BEARINGS AND SEAL)

1шт.

2

4217006

SHAFT

(SUB FOR TH110665) (REAR WITH BEARINGS)

1шт.

3

4217007

MOUNTING PARTS

(SUB FOR TH110666) (ROTARY GROUP)

2шт.

4

4217008

PISTON

(SUB FOR TH110667) (PUMP CONTROL)

2шт.

5

HANGER

( 4217009 NLA)

2шт.

6

4217010

MANIFOLD

(SUB FOR TH110669)

1шт.

7

4217011

CONTROL

(SUB FOR TH110670) FRONT

1шт.

8

4217013

CONTROL

(SUB FOR TH110672) REAR

1шт.

9

4217014

FLOW CONTROL HYD. VALVE

(SUB FOR TH110673)

1шт.

10

4217015

PUMP

(SUB FOR TH110674) (PILOT GEAR)

1шт.

11

IDENTIFICATION PLATE

(SUB TH110530)

1шт.

20

HOUSING

(SUB TH110530)

1шт.

21

HOUSING

(SUB TH110530)

1шт.

22

0294412

COUPLING

(SUB FOR TH105845)

1шт.

23

O-RING

(SUB TH110530)

1шт.

24

PISTON

(SUB TH110530)

2шт.

25

0294413

PACKING

(SUB FOR TH105846)

2шт.

26

0294414

O-RING

21.946 X 1.778 MM (0.864" X 0.070") (SUB FOR TH105847)

2шт.

27

4S00059

O-RING

164.770 X 2.616 MM (6.487" X 0.103") (SUB FOR TH105848)

2шт.

28

CH14634

O-RING

17.800 X 2.400 MM (0.701" X 0.094")

2шт.

29

0294416

PIPE PLUG

(SUB FOR TH105849)

2шт.

30

4194446

PUMP

(SUB FOR TH110530) (STANDARD)

1шт.

Выбрано товаров: 22
