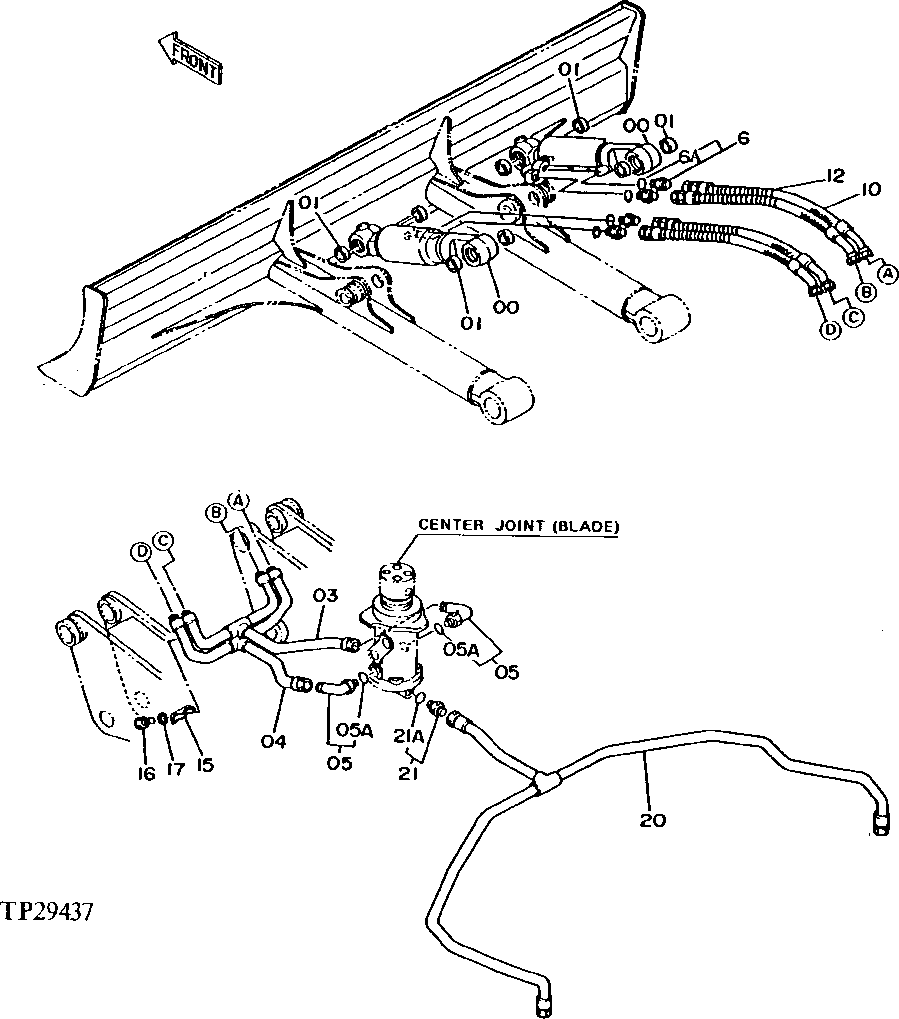

Запчасти John Deere 0D 22 - BLADE PLUMBING 3360 - EXCAVATOR 33

0

4213543

HYDRAULIC CYLINDER

(SUB FOR TH110626) (BLADE)

2шт.

1

AT318033

SEAL

(SUB FOR 4117955, TH106007)

8шт.

3

8041834

OIL LINE

(SUB FOR TH110959)

1шт.

4

8041835

OIL LINE

(SUB FOR TH111896)

1шт.

5

4154671

ELBOW FITTING

(SUB FOR TH101047)

2шт.

5A

CH11570

O-RING

1шт.

6

4200466

ADAPTER FITTING

(SUB FOR TH108320)

4шт.

6A

CH11570

O-RING

1шт.

10

4215613

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH110647)

4шт.

12

4053603

GUARD

(SUB FOR TH105944)

4шт.

15

4053593

CLAMP

(SUB FOR TH100969)

2шт.

16

19M7358

CAP SCREW

M10 X 40

2шт.

17

12M7066

LOCK WASHER

10 MM

2шт.

20

OIL LINE

(WITH BLADE) (MOTOR CASE DRAIN LINE) ( TH110917 OR 7019151 NLA)

1шт.

7017854

OIL LINE

(WITHOUT BLADE) (SUB FOR TH110897) (MOTOR CASE DRAIN LINE)

1шт.

21

4200466

ADAPTER FITTING

(SUB FOR TH108320)

1шт.

21A

CH11570

O-RING

1шт.
