Запчасти John Deere 0D 18 - MAIN PLUMBING 3360 - EXCAVATOR 33

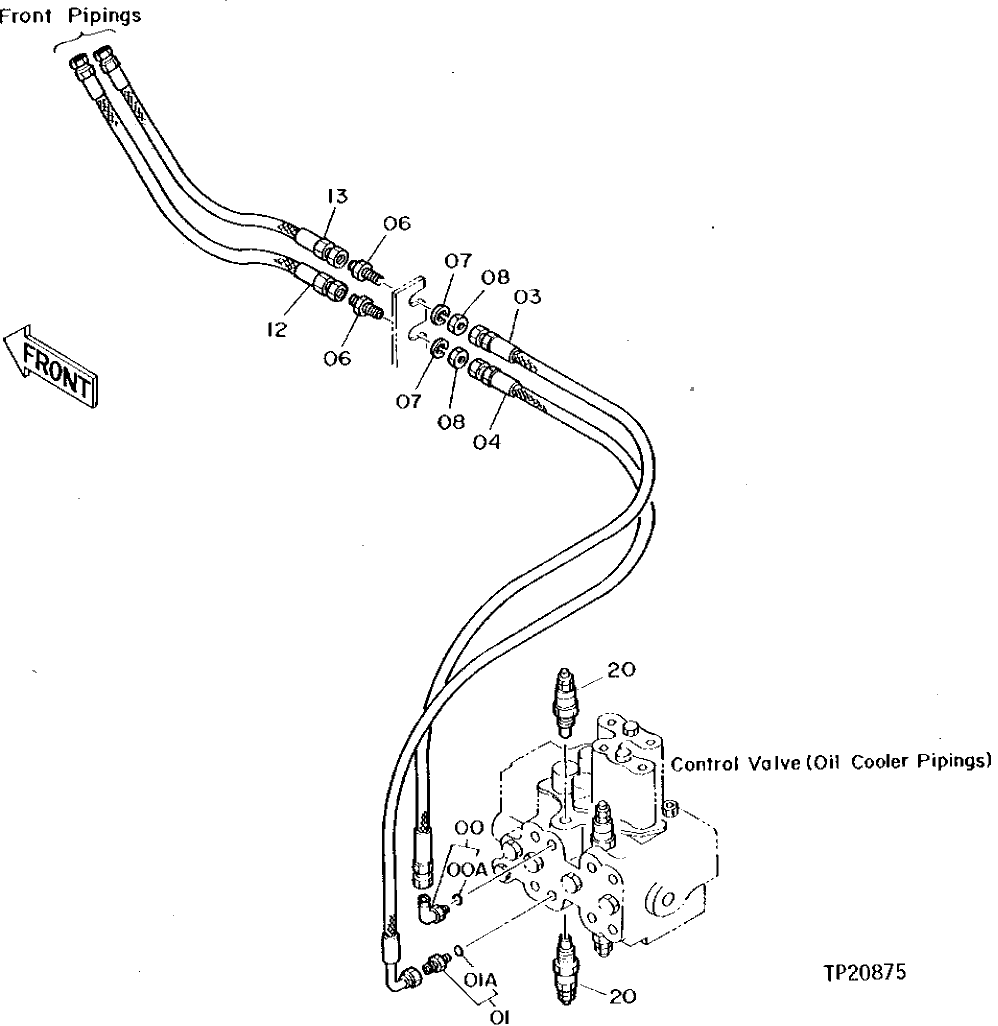

Схема запчастей John Deere 0D - 18 - MAIN PLUMBING 3360 - EXCAVATOR 33

Артикул

Название

Примечание

Количество

0

4200471

ELBOW FITTING

(SUB FOR TH108399)

1шт.

0A

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR U46489)

1шт.

1

4200469

ADAPTER FITTING

(SUB FOR TH108400)

1шт.

1A

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR U46489)

1шт.

3

4214456

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH110634) (CONTROL VALVE OFFSET BOOM CYLINDER HEAD END LINE)

1шт.

4

4218408

HYDRAULIC HOSE

(SUB FOR TH110762) (CONTROL VALVE OFFSET BOOM CYLINDER ROD END LINE)

1шт.

6

R27238

FITTING

(SUB FOR TH108438)

2шт.

7

24M7053

WASHER

17 X 30 X 3 MM

2шт.

8

14H888

NUT

9/16", (SUB FOR TH108439)

2шт.

12

4214457

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH110635) (OFFSET BOOM CYLINDER HEAD END LINE)

1шт.

13

4214456

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH110634) (OFFSET BOOM CYLINDER ROD END LINE)

1шт.

20

4180674

PRESSURE RELIEF VALVE

(SUB FOR TH106101)

2шт.

Выбрано товаров: 12
