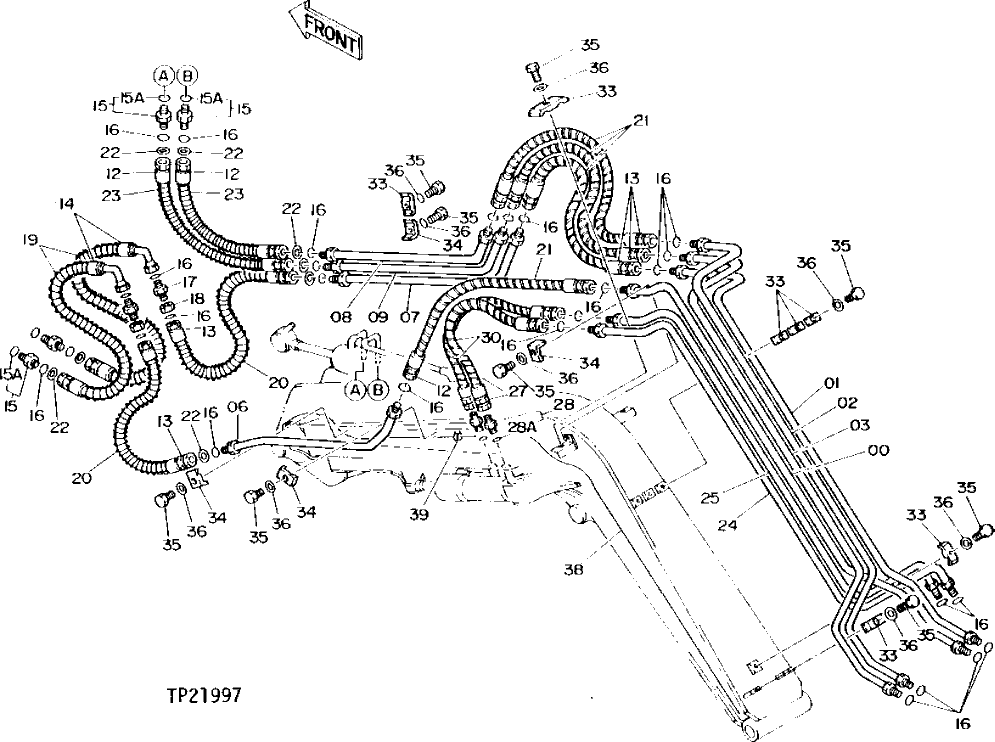

Запчасти John Deere 0D 16 - BOOM PLUMBING 3360 - EXCAVATOR 33

0

8041030

OIL LINE

(SUB FOR TH110954)

1шт.

1

8041031

OIL LINE

(SUB FOR TH110955)

1шт.

2

8041033

OIL LINE

(SUB FOR TH110957)

1шт.

3

8041032

OIL LINE

(SUB FOR TH110956)

1шт.

6

8041024

OIL LINE

(SUB FOR TH110948)

1шт.

7

8041025

OIL LINE

(SUB FOR TH110949)

1шт.

8

8041026

OIL LINE

(SUB FOR TH110950)

1шт.

9

8041027

OIL LINE

(SUB FOR TH110951)

1шт.

12

4216485

HYDRAULIC HOSE

(SUB FOR TH110657)

3шт.

13

4216484

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH110656)

5шт.

14

4217306

HYDRAULIC HOSE

(SUB FOR TH110678)

2шт.

15

4189602

FITTING

(SUB FOR TH108350)

4шт.

15A

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR U46489)

1шт.

16

T77857

O-RING

12.420 X 1.780 MM (0.489" X 0.070") (SUB FOR TH108323)

ARшт.

17

38H5073

ADAPTER FITTING

(SUB FOR TH110681)

2шт.

18

38H5092

NUT

20.625 MM (13/16") (SUB FOR TH110680)

2шт.

19

HOSE GUARD

(MAKE FROM TH101393, CUT TO LENGTH)

2шт.

20

HOSE GUARD

(FURNISH TH101393 CUT TO LENGTH) ( TH105945 NO LONGER AVAILABLE)

2шт.

21

HOSE GUARD

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

4шт.

22

4073051

WASHER

23 X 39 X 1.600 MM (0.906" X 1.535" X 0.063") (SUB FOR TH105953)

ARшт.

23

HOSE GUARD

(FURNISH TH101393 CUT TO LENGTH)

2шт.

24

8041028

OIL LINE

(SUB FOR TH110952)

1шт.

25

8041029

OIL LINE

(SUB FOR TH110953)

1шт.

27

4216486

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH110658)

2шт.

28

4200466

ADAPTER FITTING

(SUB FOR TH108320)

2шт.

28A

CH11570

O-RING

1шт.

30

4087623

HOSE GUARD

(SUB FOR TH110452)

2шт.

33

4189858

CLAMP

(SUB FOR TH108333)

10шт.

34

4190125

CLAMP

(SUB FOR TH108960)

6шт.

35

19M7496

CAP SCREW

M12 X 45

16шт.

36

12H301

LOCK WASHER

1/2"

16шт.

38

4217223

WIRING HARNESS

(SUB FOR TH110677) (LIGHT)

1шт.

39

H77698

TIE BAND

(SUB FOR TH102001 OR M88199)

5шт.
