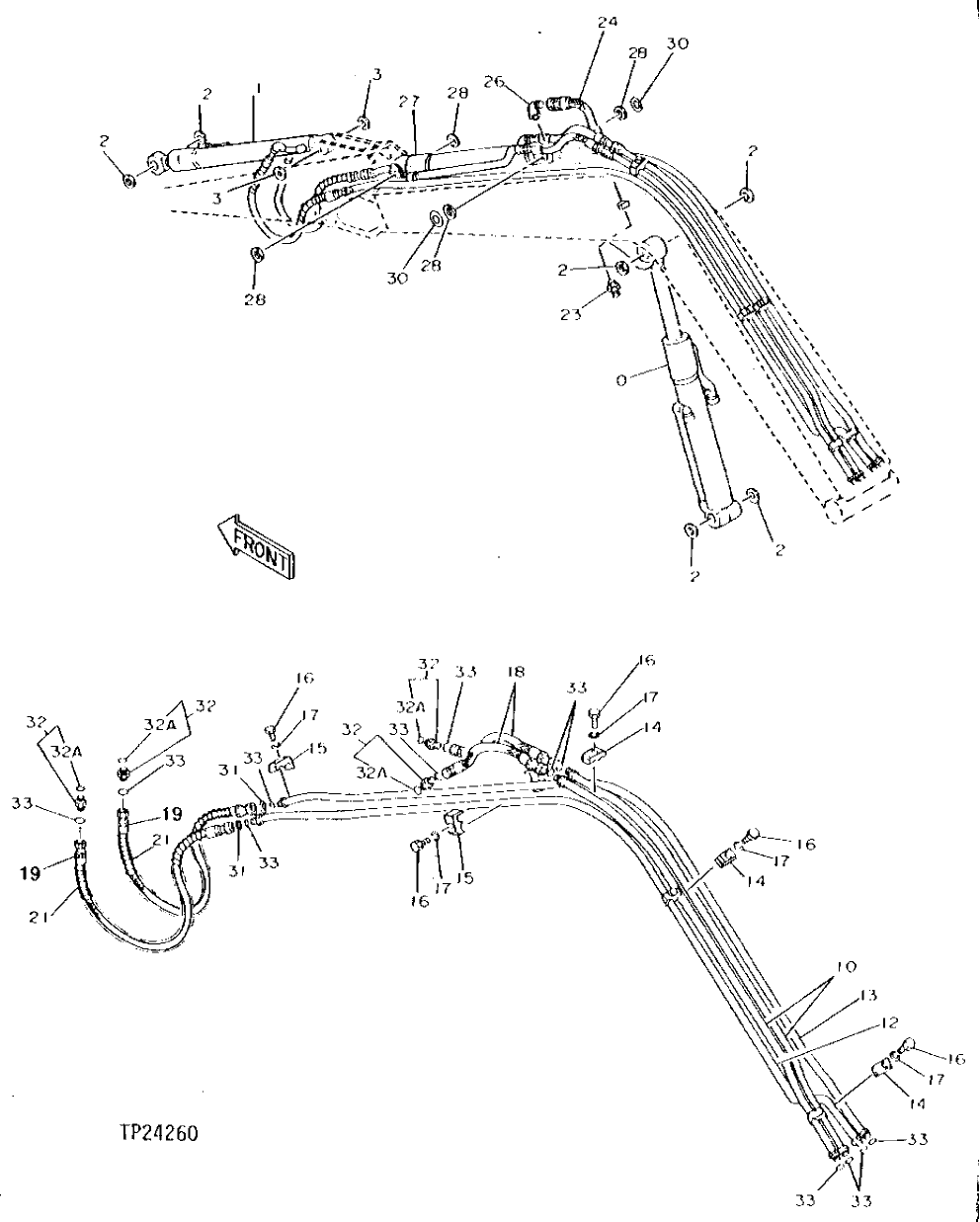

Запчасти John Deere 0D 14 - BOOM, BUCKET AND ARM PLUMBING 3360 - EXCAVATOR 33

0

4194432

HYDRAULIC CYLINDER

(SUB FOR TH110527) (BOOM)

1шт.

1

4194434

HYDRAULIC CYLINDER

(SUB FOR TH110529) (BUCKET)

1шт.

2

4117954

SEAL

(SUB FOR TH106006)

6шт.

3

AT318033

SEAL

(SUB FOR 4117955, TH106007)

2шт.

10

8037525

OIL LINE

(SUB FOR TH110920)

2шт.

12

8037527

OIL LINE

(SUB FOR TH110921)

1шт.

13

8037528

OIL LINE

(SUB FOR TH110922)

1шт.

14

4189858

CLAMP

(SUB FOR TH108333)

5шт.

15

4190125

CLAMP

(SUB FOR TH108960)

4шт.

16

19M7361

CAP SCREW

M12 X 50

9шт.

17

12H301

LOCK WASHER

1/2"

9шт.

18

4217314

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH110679) (SHORT ARM)

2шт.

19

4217314

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH110679) (STANDARD ARM)

2шт.

4218403

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH112005) (LONG ARM)

2шт.

21

HOSE GUARD

(STANDARD ARM) (MAKE FROM TH101393, CUT TO LENGTH)

2шт.

4070691

GUARD

(SUB FOR TH105952) (LONG ARM)

2шт.

23

TH100074

LUBRICATION FITTING

CONNECTS TO TH107025

1шт.

24

4173040

HYDRAULIC HOSE

(SUB FOR TH107025) LUBRICATION LINE FOR ARM CYLINDER HEAD END

1шт.

26

94-1401

ELBOW FITTING

(SUB FOR TH101387) CONNECTS TO ARM CYLINDER HEAD END

1шт.

27

4194433

HYDRAULIC CYLINDER

(SUB FOR TH110528) (ARM)

1шт.

28

4117954

SEAL

(SUB FOR TH106006)

4шт.

30

4180196

WASHER

(SUB FOR TH108046)

2шт.

31

4073051

WASHER

23 X 39 X 1.600 MM (0.906" X 1.535" X 0.063") (SUB FOR TH105953)

2шт.

32

4189602

FITTING

(SUB FOR TH108350)

4шт.

32A

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR U46489)

1шт.

33

T77857

O-RING

12.420 X 1.780 MM (0.489" X 0.070") (SUB FOR TH108323)

12шт.
