Запчасти John Deere 0D 8 - PILOT PLUMBING 3360 - EXCAVATOR 33

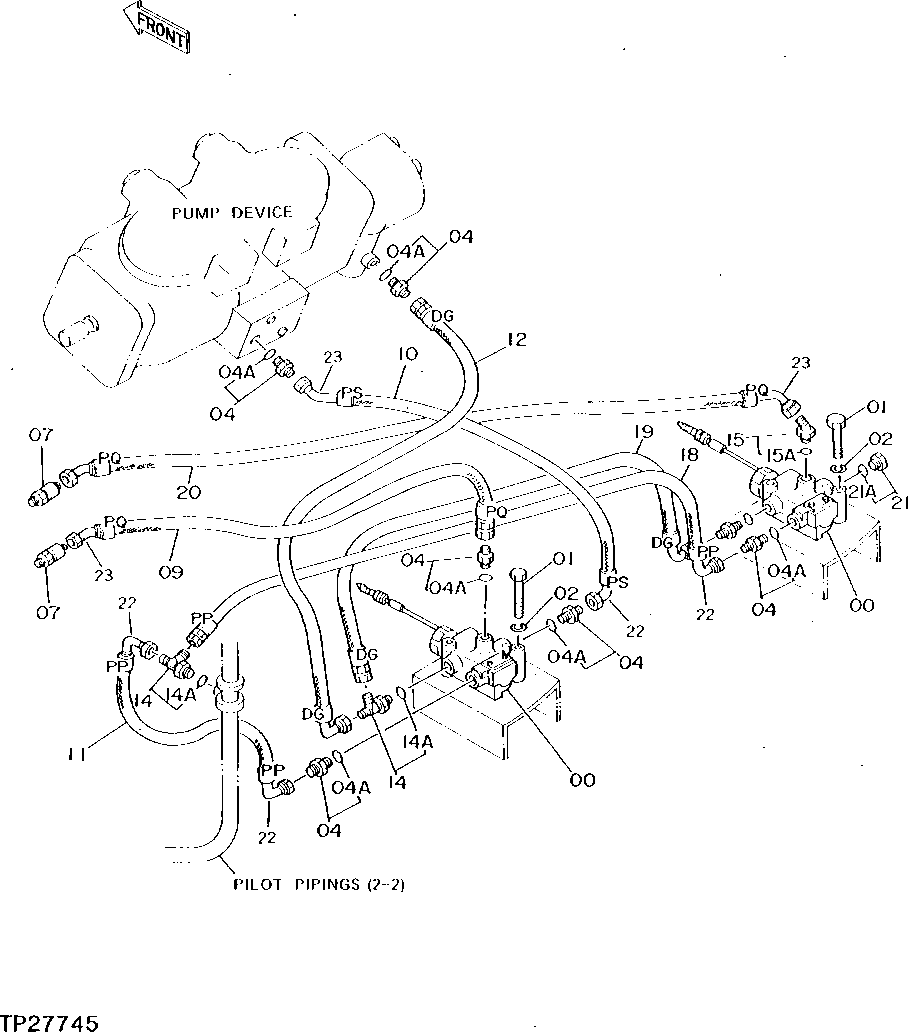

Схема запчастей John Deere 0D - 8 - PILOT PLUMBING 3360 - EXCAVATOR 33

Артикул

Название

Примечание

Количество

0

4210647

SOLENOID VALVE

(SUB FOR TH110603) (AUTO IDLE AND ECONOMY)

2шт.

1

19M8402

CAP SCREW

M8 X 65

4шт.

2

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

4шт.

4

4200465

ADAPTER FITTING

(SUB FOR TH108328)

7шт.

4A

M800650

PACKING

1шт.

7

4187914

CYLINDER

(SUB FOR TH108409) (AUTO IDLE MODE ADAPTER AND ECONOMY MODE ADAPTER)

2шт.

9

AH96002

HYDRAULIC HOSE

7/16" X 1 118 MM (44") X 7/16", (PQ) (SUB FOR TH110655, ALONG WITH X4V6X-S) (ECONOMY SOLENOID VALVE TO ECONOMY CYLINDER)

1шт.

10

AT132513

HYDRAULIC HOSE - FABRICATE

7/16" X 700 MM (27-1/2") X 7/16", (PS) (SUB FOR TH110654, ALONG WITH X4V6X-S AND AH89069) (ECONOMY SOLENOID VALVE TO PUMP)

1шт.

11

AH97777

HYDRAULIC HOSE

7/16" X 407 MM (16") X 7/16", (PP) (SUB FOR TH110653 ALONG WITH (2) AH89069) (ECONOMY SOLENOID VALVE TO PILOT FILTER)

1шт.

12

AE42718

HYDRAULIC HOSE

(SUB FOR TH110632) (DG) (ECONOMY SOLENOID VALVE TO PUMP)

1шт.

14

4203171

TEE FITTING

(SUB FOR TH110578)

2шт.

14A

M800650

PACKING

1шт.

15

4193826

ELBOW FITTING

(SUB FOR TH106467)

1шт.

15A

M800650

PACKING

1шт.

18

AH97777

HYDRAULIC HOSE

7/16" X 407 MM (16") X 7/16", (SUB FOR TH110782 ALONG WITH AH89069) (AUTO IDLE SOLENOID VALVE TO PILOT FILTER)

1шт.

19

AH89069

ELBOW FITTING

(SUB FOR TH110632) (AUTO IDLE SOLENOID VALVE TO ECONOMY SOLENOID VALVE)

1шт.

20

AE42280

HYDRAULIC HOSE

7/16" X 1 200 MM (47-1/4") X 7/16", (SUB FOR TH110781, ALONG WITH X4V6X-S) (AUTO IDLE SOLENOID VALVE TO AUTO IDLE CYLINDER)

1шт.

AE42280

HYDRAULIC HOSE

7/16" X 1 200 MM (47-1/4") X 7/16", (SUB FOR TH112249, ALONG WITH X4V6X-S) (AUTO IDLE SOLENOID VALVE TO AUTO IDLE CYLINDER)

1шт.

21

AT318013

DRAIN PLUG

(SUB FOR 4093624) (SUB FOR TH103949) (SUB FOR TH102536)

1шт.

21A

M800650

PACKING

1шт.

22

AH89069

ELBOW FITTING

4шт.

23

X4V6X-S

ELBOW FITTING

(SUB FOR AT128355 OR X3703-4-4)

3шт.

Выбрано товаров: 22
