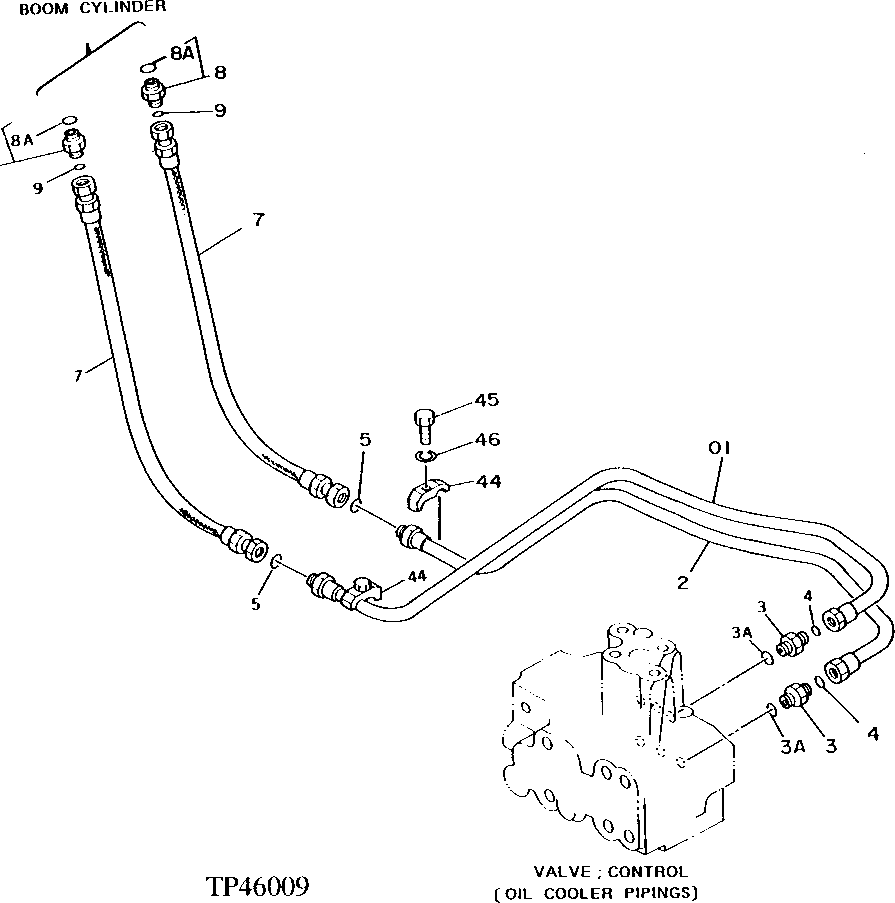

Запчасти John Deere 0D 6 - MAIN PIPINGS 3360 - EXCAVATOR 33

1

8038652

OIL LINE

(SUB FOR TH110928) (BOOM HEAD END)

1шт.

2

8038651

OIL LINE

(SUB FOR TH110927) (BOOM ROD END)

1шт.

3

X8-10F5OX

ADAPTER FITTING

(SUB FOR TH101006) (SUB FOR TH110204, ALONG WITH U46489)

2шт.

3A

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR U46489)

2шт.

4

T77858

O-RING

18.770 X 1.780 MM (0.739" X 0.070") (SUB FOR TH108349)

2шт.

5

T77857

O-RING

12.420 X 1.780 MM (0.489" X 0.070") (SUB FOR TH108323)

2шт.

7

AT101444

HYDRAULIC HOSE - FABRICATE

13/16" X 780 MM (30-3/4") X 13/16", (SUB FOR TH101444) (BOOM CYLINDER - HEAD AND ROD ENDS)

2шт.

8

4189602

FITTING

(SUB FOR TH108350)

2шт.

8A

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR U46489)

1шт.

9

T77857

O-RING

12.420 X 1.780 MM (0.489" X 0.070") (SUB FOR TH108323)

2шт.

44

4190125

CLAMP

(SUB FOR TH108960)

2шт.

45

19M7496

CAP SCREW

M12 X 45

2шт.

46

12H301

LOCK WASHER

1/2"

2шт.
