Запчасти John Deere 0D 2 - MAIN HYDRAULIC OIL LINES 3360 - EXCAVATOR 33

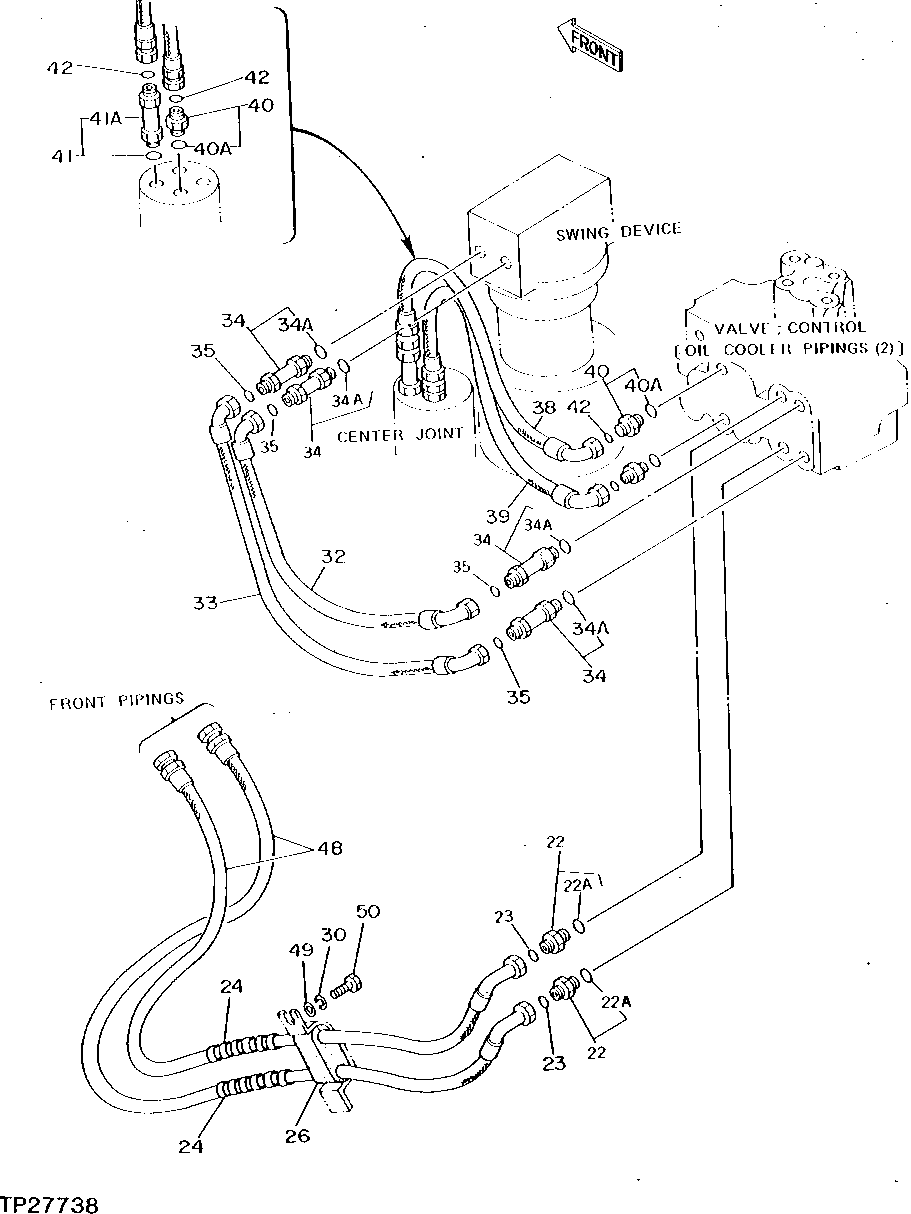

Схема запчастей John Deere 0D - 2 - MAIN HYDRAULIC OIL LINES 3360 - EXCAVATOR 33

Артикул

Название

Примечание

Количество

22

4189602

FITTING

(SUB FOR TH108350)

2шт.

22A

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR U46489)

1шт.

23

T77857

O-RING

12.420 X 1.780 MM (0.489" X 0.070") (SUB FOR TH108323)

2шт.

24

HOSE GUARD

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

2шт.

26

3038206

BUSHING

(SUB FOR TH110422)

1шт.

30

12H301

LOCK WASHER

1/2"

1шт.

32

4213425

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH110623) (SWING RIGHT)

1шт.

33

4213424

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH110622) (SWING LEFT)

1шт.

34

4199247

ADAPTER FITTING

(SUB FOR TH110569)

4шт.

34A

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR U46489)

1шт.

35

T77857

O-RING

12.420 X 1.780 MM (0.489" X 0.070") (SUB FOR TH108323)

4шт.

38

4196291

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH110540) (LEFT PROPEL FORWARD)

1шт.

39

AT167925

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH110539) (LEFT PROPEL REVERSE)

1шт.

40

4189602

FITTING

(SUB FOR TH108350)

3шт.

40A

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR U46489)

1шт.

41

4199247

ADAPTER FITTING

(SUB FOR TH110569)

1шт.

41A

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR U46489)

1шт.

42

T77857

O-RING

12.420 X 1.780 MM (0.489" X 0.070") (SUB FOR TH108323)

4шт.

48

4196295

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH110542) (ARM CYLINDER FRONT PIPINGS)

2шт.

49

24M7047

WASHER

13 X 24 X 2.500 MM

1шт.

50

19M7872

CAP SCREW

M12 X 25

1шт.

Выбрано товаров: 21
