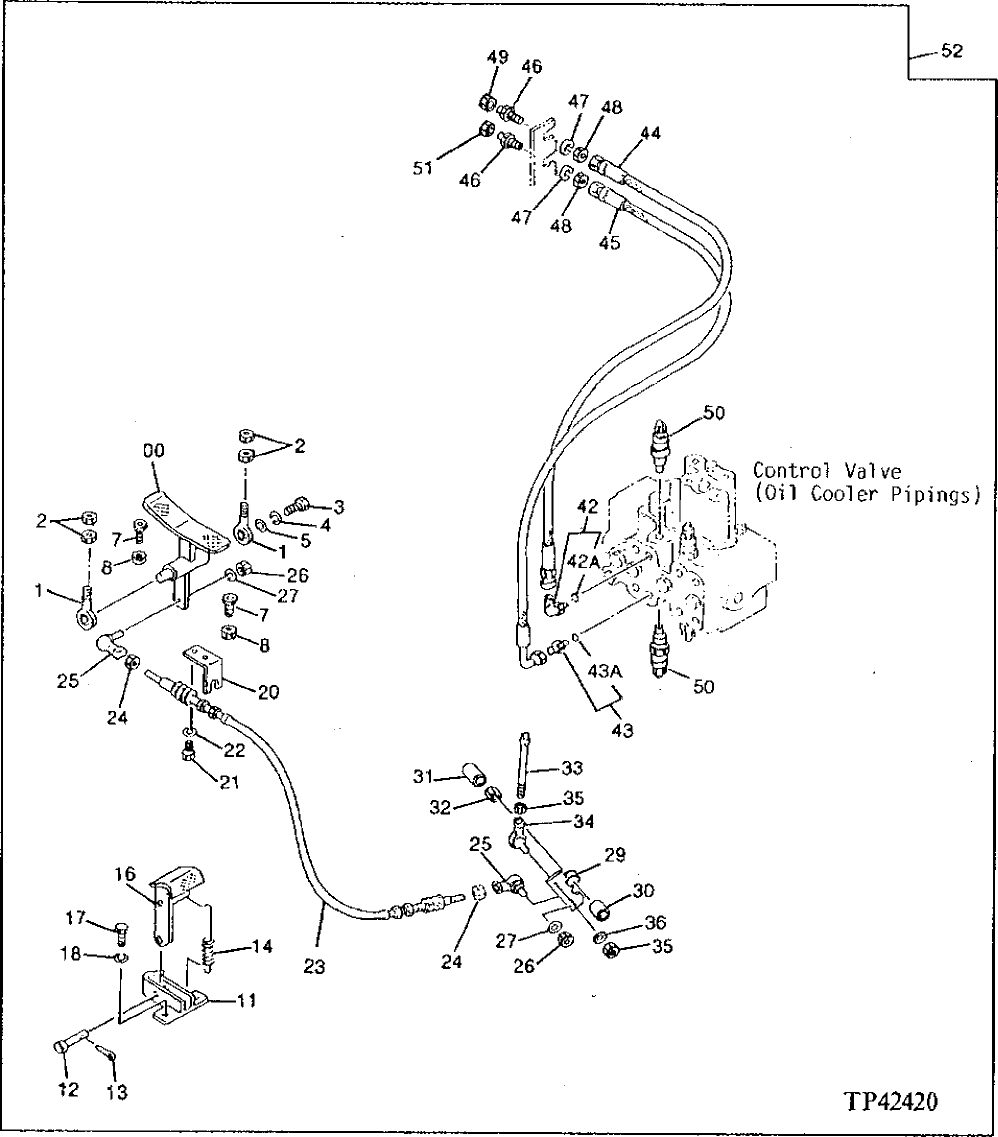

Запчасти John Deere 0D 10 - AUXILIARY VALVE CONTROL KIT 3344 - EXCAVATOR 33

0

8040507

PEDAL

(SUB FOR TH110936)

1шт.

1

4041959

LINK END

(SUB FOR TH103790)

2шт.

2

J952014

NUT

(SUB FOR TH103791)

4шт.

3

19M7493

CAP SCREW

M12 X 40

1шт.

4

12H301

LOCK WASHER

1/2"

1шт.

5

24M7047

WASHER

13 X 24 X 2.500 MM

1шт.

7

19M8338

SCREW

M10 X 40

2шт.

8

14M7274

NUT

M10

2шт.

11

8027060

BRACKET

(SUB FOR TH106746)

1шт.

12

45M3667

PIN FASTENER

10 X 28 MM, (SUB FOR TH105681)

1шт.

13

11M7082

COTTER PIN

2.500 X 25 MM, (SUB FOR TH105682) (SUB FOR 11M7080)

1шт.

14

4149125

SPRING

(SUB FOR TH106748)

1шт.

16

9718654

PEDAL

(SUB FOR TH106747)

1шт.

17

19M7402

CAP SCREW

M10 X 25

2шт.

18

12M7066

LOCK WASHER

10 MM

2шт.

20

4214912

BRACKET

(SUB FOR TH110641)

1шт.

21

19M8017

CAP SCREW

M12 X 20

2шт.

22

12H301

LOCK WASHER

1/2"

2шт.

23

4216652

CABLE

(SUB FOR TH110573, THIS APPLICATION) (SUB FOR AT130508)

1шт.

24

14M7273

NUT

M8

2шт.

25

T110021

BALL JOINT SOCKET

2шт.

26

14M7273

NUT

M8

2шт.

27

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

29

9726964

LINK

(SUB FOR TH110993)

1шт.

30

4214908

SPACER

(SUB FOR TH110639)

1шт.

31

4214909

SPACER

(SUB FOR TH110640)

1шт.

32

4197849

BUSHING

(SUB FOR TH110559)

1шт.

33

4197863

EYEBOLT

(SUB FOR TH110560)

1шт.

34

4056019

BALL JOINT

(SUB FOR TH100254)

1шт.

35

14M7444

NUT

(SUB FOR TH104196 AND J952010)

2шт.

36

12M7066

LOCK WASHER

10 MM

1шт.

42

4200471

ELBOW FITTING

(SUB FOR TH108399)

1шт.

42A

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR U46489)

1шт.

43

4200469

ADAPTER FITTING

(SUB FOR TH108400)

1шт.

43A

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR U46489)

1шт.

44

4222096

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH110634, THIS APPLICATION) (SUB FOR AT130509)

1шт.

45

4222097

HYDRAULIC HOSE

9/16" X 950 MM (37-1/2") X 9/16", (SUB FOR TH110762, THIS APPLICATION) (SUB FOR AT130510)

1шт.

46

R27238

FITTING

2шт.

47

12H294

LOCK WASHER

5/8"

2шт.

48

14H888

NUT

9/16", (SUB FOR TH108439)

2шт.

49

R39783

FITTING

1шт.

50

4180674

PRESSURE RELIEF VALVE

(SUB FOR TH106101) (CIRCUIT) (TOP VALVE - HEAD END) (BOTTOM VALVE - ROD END)

2шт.

51

R39783

FITTING

1шт.

52

KIT

( TH110187 OR AT130321 NO LONGER AVAILABLE FOR SERVICE)

1шт.
