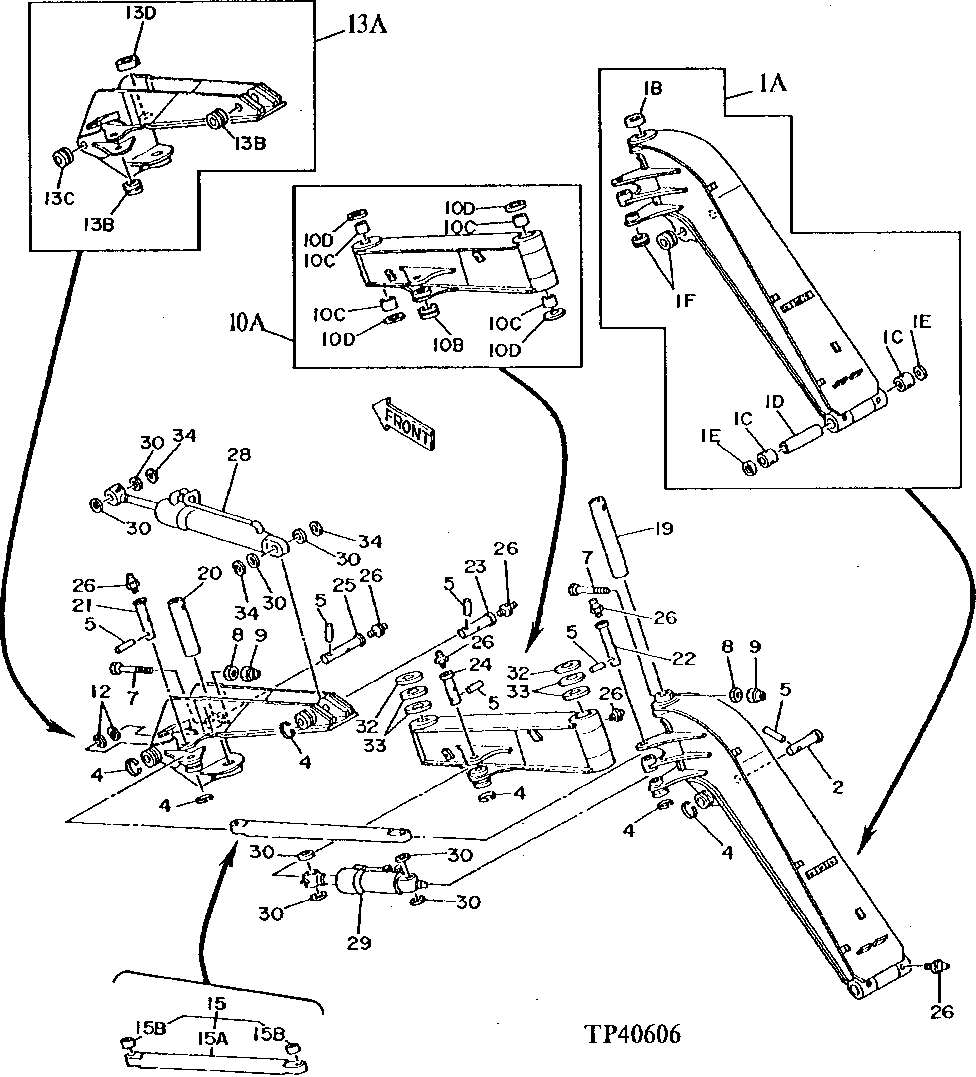

Запчасти John Deere 0D 6 - OFFSET BOOM 3344 - EXCAVATOR 33

1A

8040829

EXCAVATOR BOOM

(SUB FOR TH110944)

1шт.

1B

4215842

BUSHING

(SUB FOR TH110649)

1шт.

1C

4197840

BUSHING

(SUB FOR TH110556)

2шт.

1D

4198157

BUSHING

(SUB FOR TH110564)

1шт.

1E

TH105979

SEAL

2шт.

1F

4197031

BUSHING

(SUB FOR TH110546)

2шт.

2

3055536

PIN FASTENER

(SUB FOR TH105904) (SUB FOR AT200379)

1шт.

4

4065688

RETAINER

(SUB FOR TH100624)

6шт.

5

4065689

PIN FASTENER

(SUB FOR TH100625)

6шт.

7

19M8026

CAP SCREW

M20 X 170, (SUB FOR TH103205)

2шт.

8

14M7277

NUT

M20

2шт.

9

M660020

NUT

(SUB FOR TH106728)

2шт.

10A

8040830

EXCAVATOR BOOM

(SUB FOR TH110945)

1шт.

10B

4197031

BUSHING

(SUB FOR TH110546)

1шт.

10C

3039752

BUSHING

(SUB FOR TH106723) (SUB FOR TH109794)

4шт.

10D

TH102411

SEAL

4шт.

12

4005826

WASHER

63.500 X 110 X 2.300 MM (2-1/2" X 4.331" X 0.091") (SUB FOR TH105930)

2шт.

13A

8040831

SUPPORT

(SUB FOR TH110946)

1шт.

13B

4197031

BUSHING

(SUB FOR TH110546)

2шт.

13C

4197032

BUSHING

(SUB FOR TH110547)

1шт.

13D

4215842

BUSHING

(SUB FOR TH110649)

1шт.

15

9078948

SUPPORT

(SUB FOR TH110986)

1шт.

15A

SUPPORT

(SUB TH110986)

1шт.

15B

4128479

BUSHING

(SUB FOR TH106015)

2шт.

19

3040593

PIN FASTENER

(SUB FOR TH110438)

1шт.

20

3040592

BUSHING

(SUB FOR TH110437)

1шт.

21

3040621

PIN FASTENER

(SUB FOR TH110440)

1шт.

22

3040620

PIN FASTENER

(SUB FOR TH110439)

1шт.

23

3040623

PIN FASTENER

(SUB FOR TH110442)

1шт.

24

3055930

PIN FASTENER

(SUB FOR TH110441) (SUB FOR AT200382)

1шт.

25

3037344

PIN FASTENER

(SUB FOR TH110416)

1шт.

26

TH100074

LUBRICATION FITTING

8шт.

28

4215548

HYDRAULIC CYLINDER

(SUB FOR TH110645) (ARM)

1шт.

29

4215547

HYDRAULIC CYLINDER

(SUB FOR TH110644) (OFFSET)

1шт.

30

4117954

SEAL

(SUB FOR TH106006)

8шт.

32

4121715

WASHER

115 X 180 X 3.200 MM (4.528" X 7.087" X 0.126") (SUB FOR TH106737)

2шт.

33

4114255

WASHER

115 X 180 X 1 MM (4.528" X 7.087" X 0.039") (SUB FOR TH106738)

4шт.

34

4180196

WASHER

(SUB FOR TH108046)

3шт.
