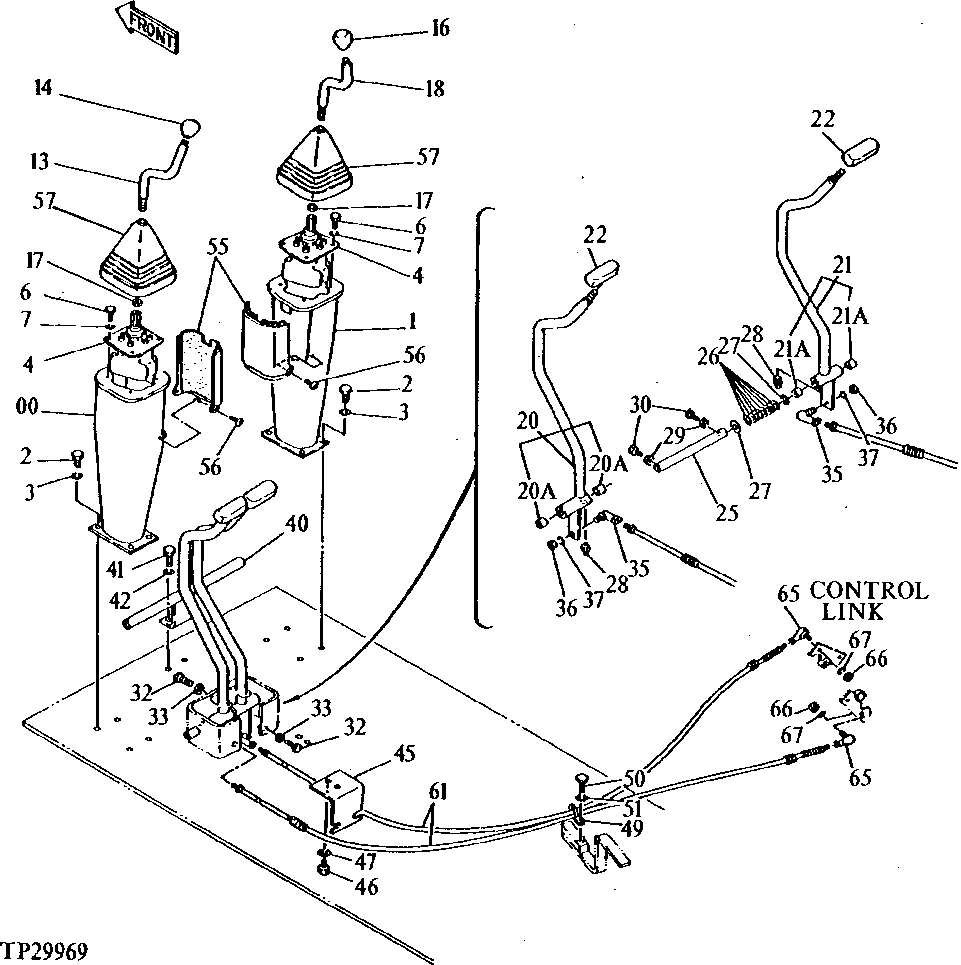

Запчасти John Deere 0D 6 - CONTROL LEVERS AND CABLES 3315 - EXCAVATOR 33

0

6008402

STAND

(SUB FOR TH110794)

1шт.

1

6008401

STAND

(SUB FOR TH110793)

1шт.

2

19M7402

CAP SCREW

M10 X 25

8шт.

3

12M7066

LOCK WASHER

10 MM

8шт.

4

AT189840

HYD/PILOT CNTL VALVE REMAN

(USE AT131277 IF AVAILABLE) (VALVE SERIAL NUMBER) (SUB FOR TH108366, TH111710 OR AT131277)

2шт.

AT189840

HYD/PILOT CNTL VALVE REMAN

(USE AT131277 IF AVAILABLE) (VALVE SERIAL NUMBER) (SUB FOR TH111710, TH108366, AT130916 OR AT131277)

2шт.

6

19M8425

CAP SCREW

M6 X 16

8шт.

7

12M7006

LOCK WASHER

6 MM

8шт.

13

7018130

LEVER

(SUB FOR TH110899)

1шт.

14

4269020

KNOB

(SUB FOR TH100252) (SUB FOR TH108073) INCLUDES HORN SWITCH

1шт.

16

4117704

KNOB

(SUB FOR TH100591)

1шт.

17

14M7141

NUT

M14

2шт.

18

7018206

LEVER

(SUB FOR TH110900)

1шт.

20

9078733

LEVER

(SUB FOR TH110931)

1шт.

20A

AT48422

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH108318)

2шт.

21

9078732

LEVER

(SUB FOR TH110932)

1шт.

21A

AT48422

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH108318)

2шт.

22

4122423

GRIP

(SUB FOR TH106012)

2шт.

25

4201336

PIN FASTENER

(SUB FOR TH110572)

1шт.

26

4081592

SHIM

(SUB FOR TH102030)

8шт.

27

24M7051

WASHER

21 X 37 X 3 MM

2шт.

28

TH100074

LUBRICATION FITTING

2шт.

29

14M7274

NUT

M10

2шт.

30

19M7662

CAP SCREW

M10 X 30

2шт.

32

19M7403

CAP SCREW

M12 X 35

4шт.

33

14M7275

NUT

M12

4шт.

35

T110021

BALL JOINT SOCKET

2шт.

36

14M7273

NUT

M8

2шт.

37

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.

40

9719420

FOOTREST

(SUB FOR TH106281)

1шт.

41

19M7402

CAP SCREW

M10 X 25

2шт.

42

12M7066

LOCK WASHER

10 MM

2шт.

45

4211091

BRACKET

(SUB FOR TH110610)

1шт.

46

19M8017

CAP SCREW

M12 X 20

2шт.

47

12H301

LOCK WASHER

1/2"

2шт.

49

4192018

CLIP

(SUB FOR TH110498)

1шт.

50

19M8017

CAP SCREW

M12 X 20

1шт.

51

12H301

LOCK WASHER

1/2"

1шт.

55

7019096

COVER

(SUB FOR TH110912)

2шт.

56

21M7278

SCREW

M5 X 10

4шт.

57

2025150

BOOT

(SUB FOR TH110389)

2шт.

61

4201495

CABLE

(SUB FOR TH110573)

2шт.

65

T110021

BALL JOINT SOCKET

2шт.

66

14M7273

NUT

M8

2шт.

67

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

2шт.
