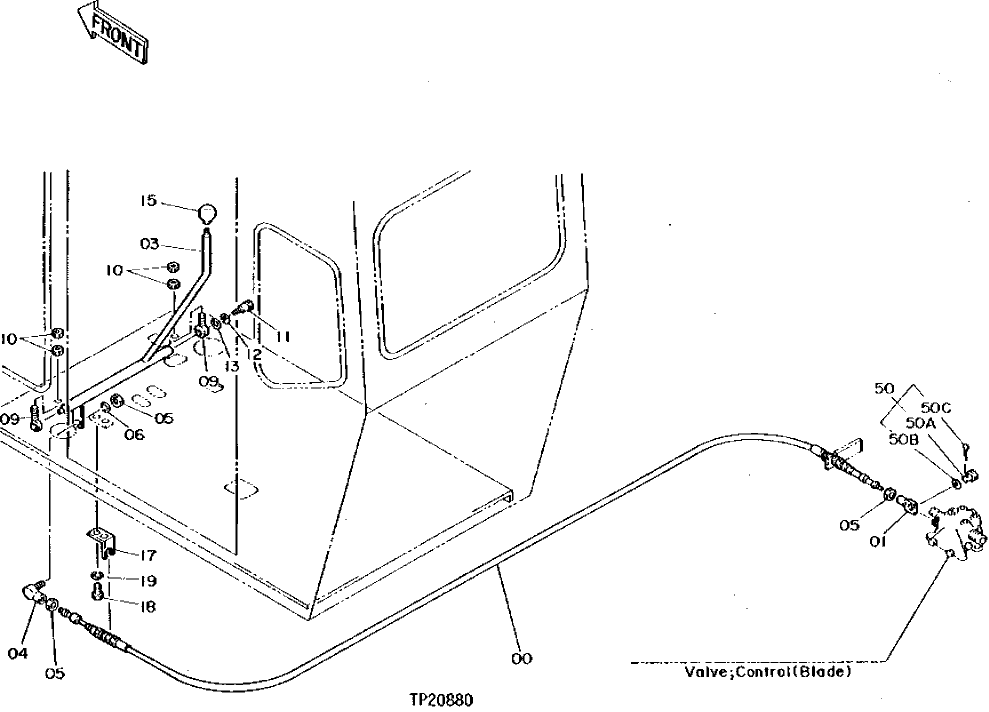

Запчасти John Deere 0D 4 - BLADE CONTROL LEVER 3315 - EXCAVATOR 33

0

4216067

CABLE

(SUB FOR TH110651)

1шт.

1

4242315

TIE ROD END

(SUB FOR TH110650) (SUB FOR AT200415)

1шт.

3

8040590

LEVER

(SUB FOR TH110941)

1шт.

4

T110021

BALL JOINT SOCKET

1шт.

5

14M7273

NUT

M8

3шт.

6

12M7056

LOCK WASHER

8 MM (0.315") (SUB FOR 12M7065)

1шт.

9

4041959

LINK END

(SUB FOR TH103790)

2шт.

10

J952014

NUT

(SUB FOR TH103791)

4шт.

11

19M7493

CAP SCREW

M12 X 40

1шт.

12

12H301

LOCK WASHER

12.700 MM (1/2")

1шт.

13

24M7047

WASHER

13 X 24 X 2.500 MM (0.512" X 0.945" X 0.098")

1шт.

15

4117704

KNOB

(SUB FOR TH100591)

1шт.

17

4214912

BRACKET

(SUB FOR TH110641)

1шт.

18

19M8017

CAP SCREW

M12 X 20

2шт.

19

12H301

LOCK WASHER

12.700 MM (1/2")

2шт.

50

PIN FASTENER

(ORDER INDIVIDUAL COMPONENTS)

1шт.

50A

0295608

PIN

(SUB FOR TH108148)

1шт.

50B

24M7043

WASHER

12 X 25 X 3 MM, (SUB FOR TH108149 OR 0295609)

1шт.

50C

11M7075

COTTER PIN

1.200 X 12 MM (0.047" X 0.472") (SUB FOR TH108150)

1шт.
