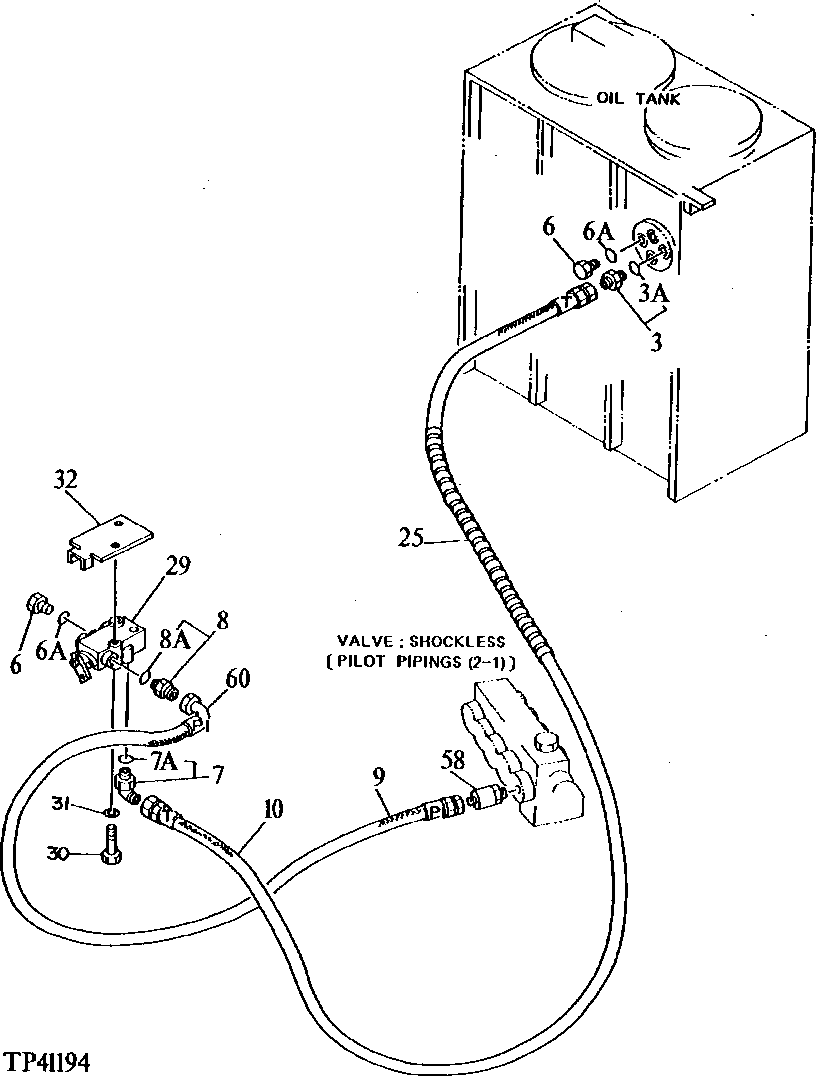

Запчасти John Deere 0D 14 - PILOT PLUMBING 2160 - MAIN HYDRAULIC SYSTEM 21

3

4200466

ADAPTER FITTING

(SUB FOR TH108320)

1шт.

3A

CH11570

O-RING

1шт.

6

15M7036

DRAIN PLUG

(SUB FOR 4092534, 4217653, TH109285 OR 0309805) (ALSO ORDER CH11570)

3шт.

6A

CH11570

O-RING

1шт.

7

4154671

ELBOW FITTING

(SUB FOR TH101047)

1шт.

7A

CH11570

O-RING

1шт.

8

4200469

ADAPTER FITTING

(SUB FOR TH108400)

1шт.

8A

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR U46489)

1шт.

9

AT48428

HYDRAULIC HOSE - FABRICATE

9/16" X 708 MM (27-3/4") X 9/16", (P1) (SUB FOR TH110766, ALONG WITH AE24616)

1шт.

10

4203024

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH108468) (SUB FOR TH110582 OR AH99310, THIS APPLICATION) (T)

1шт.

25

HOSE GUARD

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

1шт.

29

4179025

FLOW CONTROL HYD. VALVE

(SUB FOR TH108432) (PILOT SHUTOFF)

1шт.

30

19M7329

CAP SCREW

M10 X 75, (SUB FOR TH101999)

2шт.

31

12M7066

LOCK WASHER

10 MM

2шт.

32

4218688

STOP

(SUB FOR TH110769)

1шт.

58

4188687

FILTER

(SUB FOR TH108433)

1шт.

60

AE24616

ELBOW FITTING

1шт.
