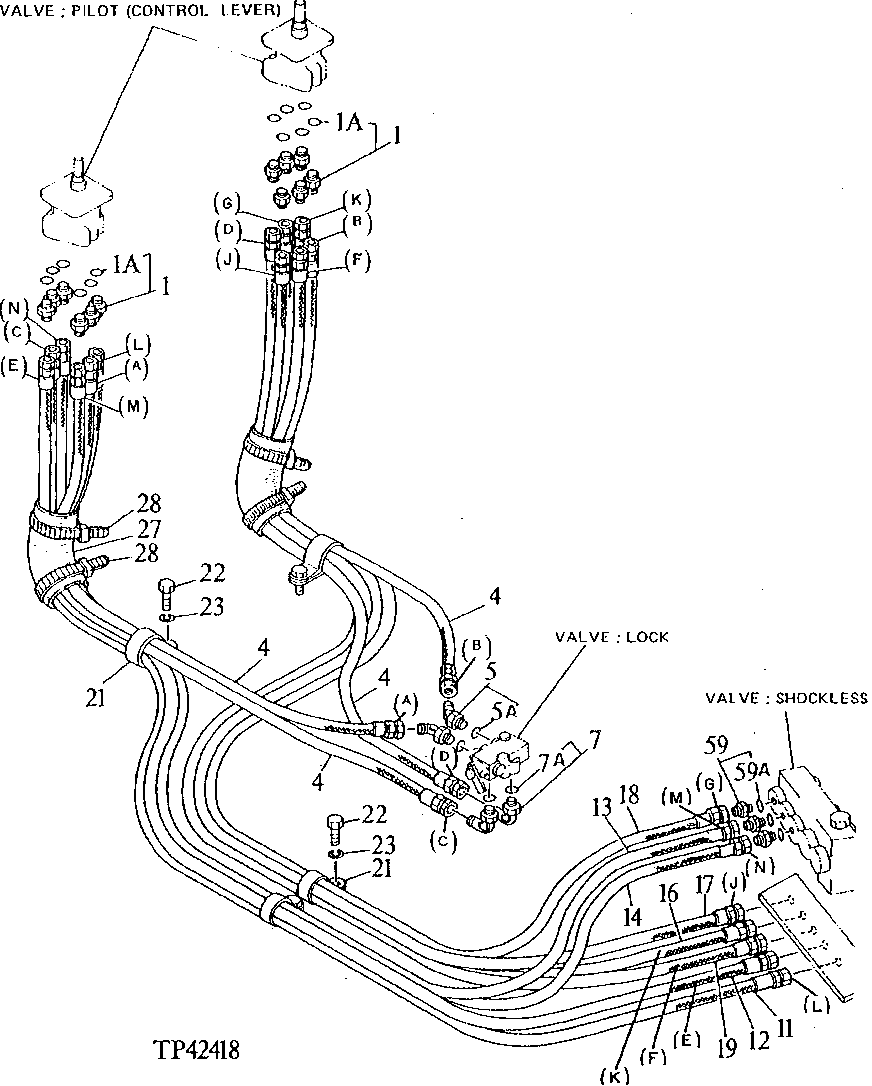

Запчасти John Deere 0D 12 - PILOT PLUMBING 2160 - MAIN HYDRAULIC SYSTEM 21

1

4200467

ADAPTER FITTING

(SUB FOR TH108417)

12шт.

1A

M800650

PACKING

1шт.

4

AT48422

HYDRAULIC HOSE - FABRICATE

9/16" X 1 422 MM (56") X 9/16", (SUB FOR TH110576)

4шт.

5

4190244

ELBOW FITTING

(SUB FOR TH106152)

2шт.

5A

CH11570

O-RING

1шт.

7

4154671

ELBOW FITTING

(SUB FOR TH101047)

2шт.

7A

CH11570

O-RING

1шт.

11

AE42000

HYDRAULIC HOSE

9/16" X 2 000 MM (78-3/4") X 9/16", (SUB FOR TH110595) (L)

1шт.

12

AE42000

HYDRAULIC HOSE

9/16" X 2 000 MM (78-3/4") X 9/16", (SUB FOR TH110596) (E)

1шт.

13

AE42000

HYDRAULIC HOSE

9/16" X 2 000 MM (78-3/4") X 9/16", (SUB FOR TH110597) (M)

1шт.

14

AE42000

HYDRAULIC HOSE

9/16" X 2 000 MM (78-3/4") X 9/16", (SUB FOR TH110598) (N)

1шт.

16

AE42000

HYDRAULIC HOSE

9/16" X 2 000 MM (78-3/4") X 9/16", (SUB FOR TH110599) (K)

1шт.

17

AE42000

HYDRAULIC HOSE

9/16" X 2 000 MM (78-3/4") X 9/16", (SUB FOR TH110600) (J)

1шт.

18

AE42000

HYDRAULIC HOSE

9/16" X 2 000 MM (78-3/4") X 9/16", (SUB FOR TH110601) (G)

1шт.

19

AE42000

HYDRAULIC HOSE

9/16" X 2 000 MM (78-3/4") X 9/16", (SUB FOR TH110602) (F)

1шт.

21

XCL-29

HOSE CLAMP

(SUB FOR TH110522 OR 4193848)

4шт.

22

19M8231

CAP SCREW

M12 X 16, (SUB FOR TH100522)

4шт.

23

12H301

LOCK WASHER

1/2"

4шт.

27

4211102

BUSHING

(SUB FOR TH110611)

2шт.

28

H77698

TIE BAND

(SUB FOR TH106422)

4шт.

59

4200466

ADAPTER FITTING

(SUB FOR TH108320)

3шт.

59A

CH11570

O-RING

1шт.
