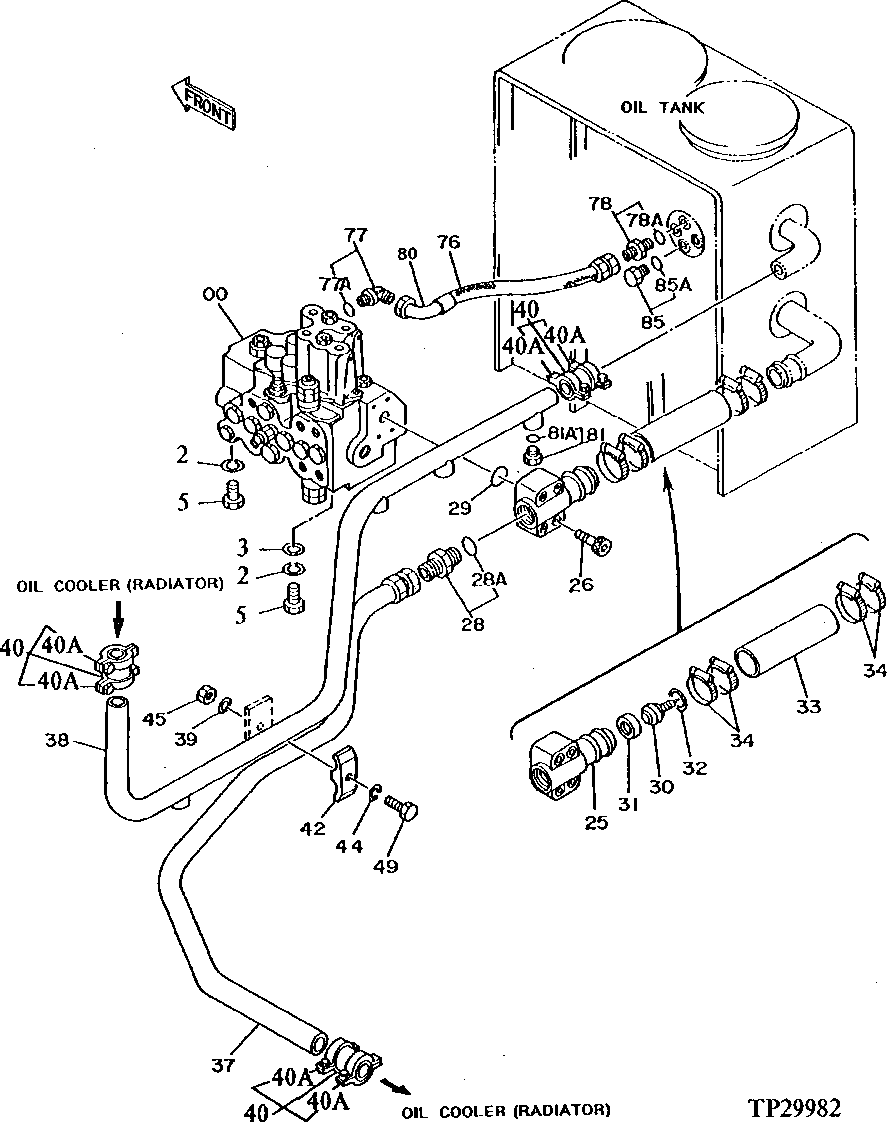

Запчасти John Deere 0D 8 - OIL COOLER PLUMBING 2160 - MAIN HYDRAULIC SYSTEM 21

0

4194447

HYD ACTUATED CONTROL VALVE

(SUB FOR TH110531)

1шт.

2

12H317

LOCK WASHER

9/16"

3шт.

3

24H1351

WASHER

9/16" X 1-1/2" X 0.164"

1шт.

5

19M7877

CAP SCREW

M14 X 30

3шт.

25

2023808

MANIFOLD

(SUB FOR TH110380)

1шт.

26

19M8348

CAP SCREW

M12 X 65

4шт.

28

4042034

ADAPTER FITTING

(SUB FOR TH110450)

1шт.

28A

TH101926

O-RING

28.700 X 3.500 MM (1.130" X 0.138")

1шт.

29

CH11436

O-RING

1шт.

30

4197528

FLOW CONTROL HYD. VALVE

(SUB FOR TH110550) (OIL COOLER BYPASS)

1шт.

31

4197527

RING

(SUB FOR TH110549)

1шт.

32

40M1860

SNAP RING

(SUB FOR TH110989)

1шт.

33

4099118

HOSE

(SUB FOR TH110585)

1шт.

34

TY22470

CLAMP

(SUB FOR TH101905) (SUB FOR AR65293)

4шт.

37

7019117

OIL TUBE

(SUB FOR TH110914) (OIL COOLER INLET)

1шт.

38

7019116

OIL TUBE

(SUB FOR TH110913) (OIL COOLER OUTLET)

1шт.

39

24M7047

WASHER

13 X 24 X 2.500 MM

1шт.

40

4071213

COUPLING

(SUB FOR TH101923)

3шт.

40A

4196258

SEAL

(SUB FOR TH106965)

2шт.

42

4189860

CLAMP

(SUB FOR TH108314)

1шт.

44

12H301

LOCK WASHER

1/2"

1шт.

45

14M7275

NUT

M12

1шт.

49

19M7753

CAP SCREW

M12 X 70

1шт.

76

AR101376

HYDRAULIC HOSE

7/16" X 356 MM (14") X 7/16", (RETURN) (SUB FOR TH110621, ALONG WITH AH89069)

1шт.

77

4154670

ELBOW FITTING

(SUB FOR TH100951)

1шт.

77A

M800650

PACKING

1шт.

78

4200465

ADAPTER FITTING

(SUB FOR TH108328)

1шт.

78A

M800650

PACKING

1шт.

80

AH89069

ELBOW FITTING

1шт.

81

4174541

FITTING

(SUB FOR TH110477)

1шт.

81A

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR U46489)

1шт.

85

4174541

FITTING

(SUB FOR TH110477)

1шт.

85A

4506418

O-RING

17.800 X 2.400 MM (0.701" X 0.094") (SUB FOR U46489)

1шт.
