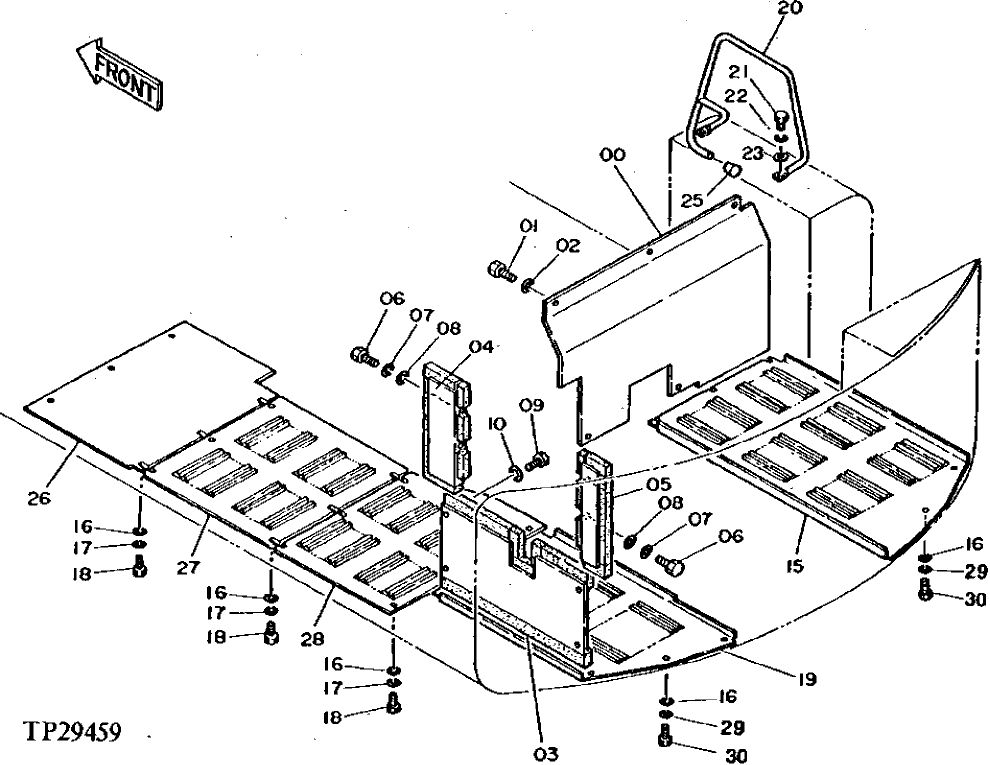

Запчасти John Deere 0D 6 - ENGINE COMPARTMENT BOTTOM COVER 1910 - SHEET METAL AND STYLING 19

0

7019085

COVER

(SUB FOR TH110910)

1шт.

1

19M7872

CAP SCREW

M12 X 25

7шт.

2

24M7047

WASHER

13 X 24 X 2.500 MM

7шт.

3

9729166

COVER

(SUB FOR TH110999)

1шт.

4

9729164

COVER

(SUB FOR TH110997)

1шт.

5

9729165

COVER

(SUB FOR TH110998)

1шт.

6

19M8324

CAP SCREW

M10 X 16

4шт.

7

12M7066

LOCK WASHER

10 MM

4шт.

8

24M7101

WASHER

11 X 34 X 3 MM, (SUB FOR TH101289)

4шт.

9

19M7872

CAP SCREW

M12 X 25

4шт.

10

24H1748

WASHER

1/2" X 1-1/4" X 0.105"

4шт.

15

2023900

COVER

(SUB FOR TH110381)

1шт.

16

24H1748

WASHER

1/2" X 1-1/4" X 0.105"

31шт.

17

12H301

LOCK WASHER

1/2"

25шт.

18

19M7872

CAP SCREW

M12 X 25

25шт.

19

2025427

COVER

(SUB FOR TH110390)

1шт.

20

8041628

SUPPORT

(SUB FOR TH110960)

1шт.

21

19M8765

SCREW

M12 X 28, (SUB FOR 19M3204) (SUB FOR TH101717, ALONG WITH 12M7067)

2шт.

22

12H301

LOCK WASHER

1/2"

2шт.

23

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

2шт.

25

TH101271

CAP

1шт.

26

3037410

COVER

(SUB FOR TH110421)

1шт.

27

3038414

COVER

(SUB FOR TH110423)

1шт.

28

3040449

COVER

(SUB FOR TH110434)

1шт.

29

12H301

LOCK WASHER

1/2"

6шт.

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

6шт.

30

19M7872

CAP SCREW

M12 X 25

6шт.

19M8011

CAP SCREW

M12 X 30

6шт.
