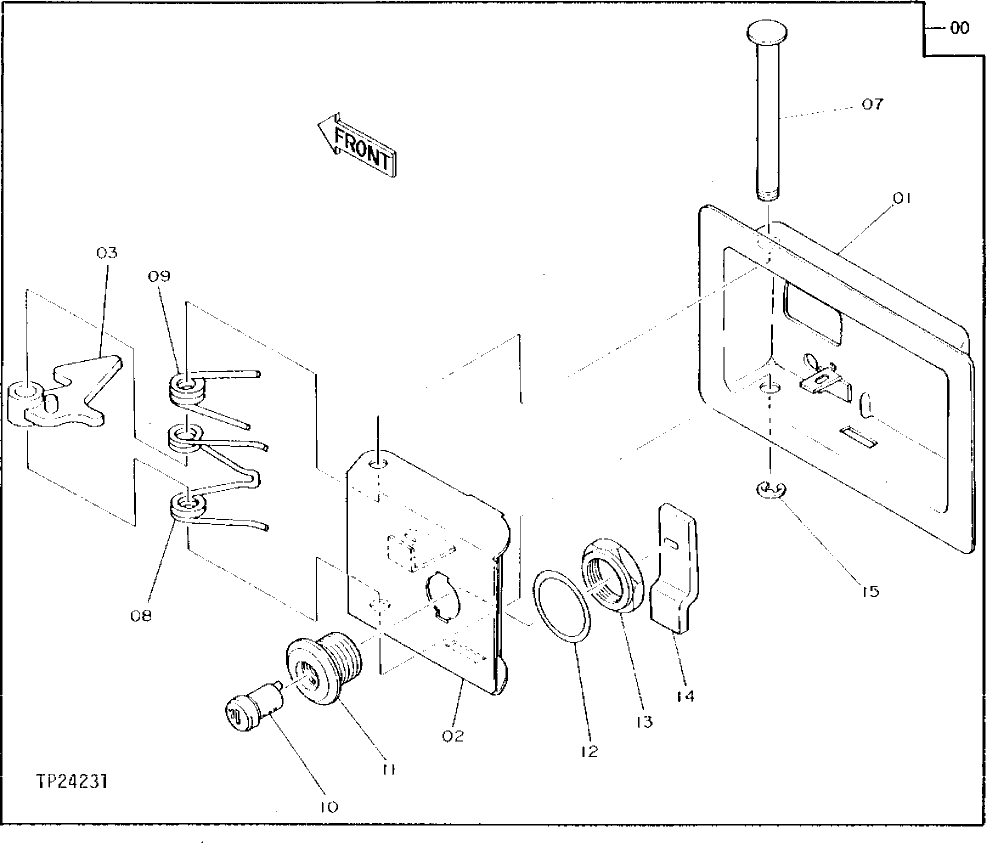

Запчасти John Deere 0D 4 - ENGINE COMPARTMENT SERVICE DOOR LOCK 1910 - SHEET METAL AND STYLING 19

0

4361763

LOCK

(SUB FOR TH110898 OR TH110126) (SUB FOR AT115741)

1шт.

1

8024490

COVER

(SUB FOR TH110127 OR TH102227) (SUB FOR TH102241)

1шт.

2

4355969

LATCH

(SUB FOR TH102242)

1шт.

8024464

LATCH

(USE WITH TH110126) (SUB FOR TH102228)

1шт.

3

LEVER

( TH102229 OR AT173241 NOT AVAILABLE)

1шт.

7

4355972

PIN FASTENER

(SUB FOR TH102230)

1шт.

8

4355973

SPRING

(SUB FOR TH102233, THIS APPLICATION) (SUB FOR AT173242)

1шт.

9

4355974

TORSION SPRING

(SUB FOR TH102243)

1шт.

4355975

TORSION SPRING

(USE WITH TH110126) (SUB FOR TH102234, 4134321)

1шт.

10

4361411

LOCK

(SUB FOR TH110128) (SUB FOR AT206102) (USES H800 KEY)

1шт.

4158653

KEY

(SUB FOR TH101605) (NOT ILLUSTRATED) (600) (USE WITH TH110128 LOCK)

1шт.

AT194969

KEY

(SUB FOR AT147803) (NOT ILLUSTRATED) (H800)

1шт.

11

4134325

LOCK

(SUB FOR TH110129) (SUB FOR TH102236)

1шт.

12

4355979

RING

(SUB FOR TH102237, 4134322)

1шт.

13

4355980

NUT

(SUB FOR TH102238, 4134323)

1шт.

14

4355981

STRAP

(SUB FOR TH102232, 4134331)

1шт.

15

CH11490

RING

(SUB FOR TH102231)

1шт.
